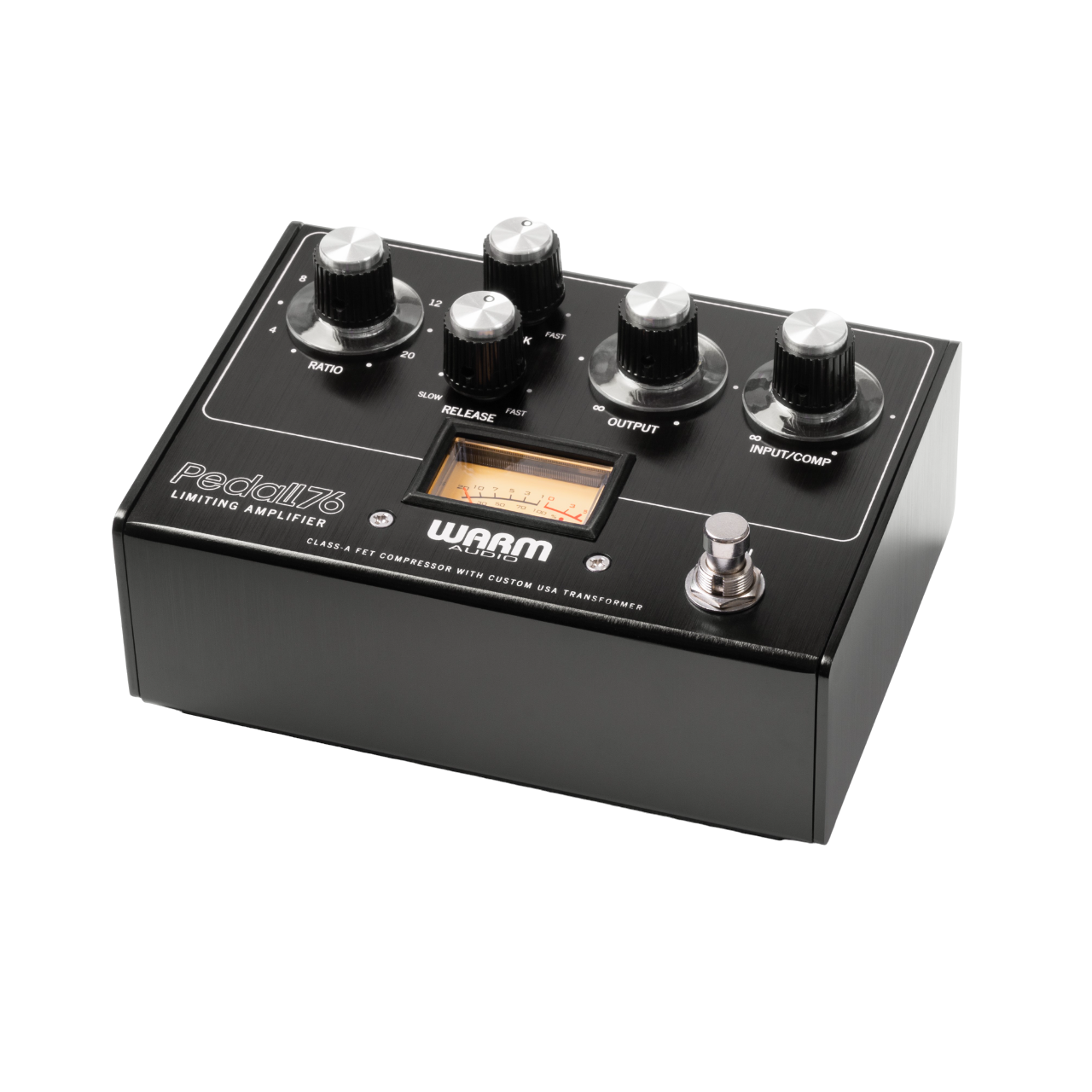

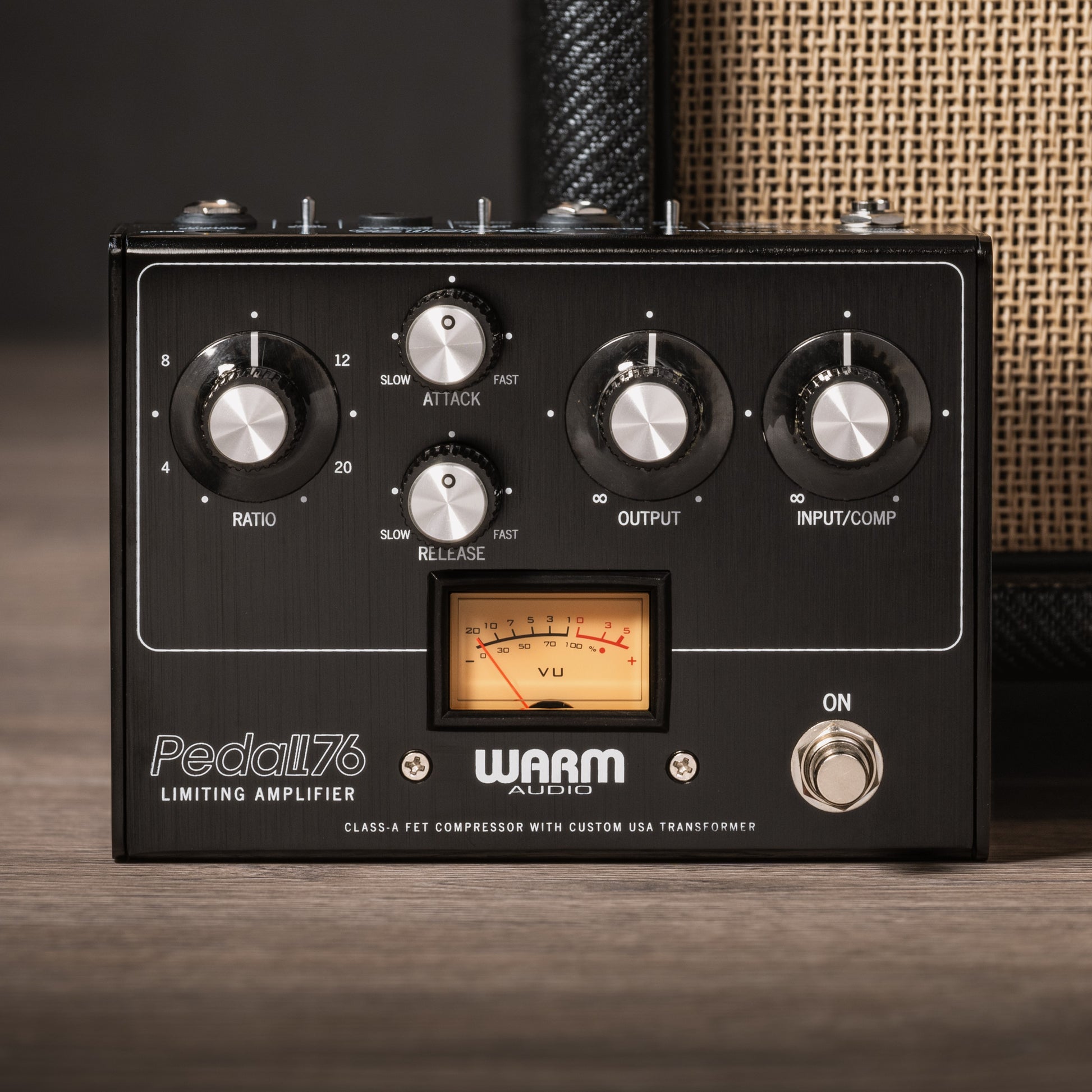

Warm Audio Pedal76 Compressor Pedal
The Warm Audio Pedal76 accurately replicates one of the fastest and most powerful studio compressors of all time in a pedalboard-friendly format. It is known for its ultra-responsive dynamic control and rich analog tone. The pedal uses premium and custom components to duplicate the professional performance and tone of studio units, allowing it to achieve authentic 1176-style FET compression.
Warm Audio Pedal76 Compressor Pedal Review
Pedal76 is an ideal choice for recreating timeless studio sound on stage, with added grit from the FET, the rich character of the transformer, and critical gig-ready controls. It recreates the legendary tone and control of the vintage 76-style compression used in studios by artists like Jack White, John Mayer, Foo Fighters, Van Halen, Led Zeppelin, and many more.
Warm Audio Pedal76 Compressor Pedal Features
- All-Analog Transformer-Balanced FET Compressor Pedal
- Custom CineMag USA Output Transformer (Engaged With External Power)
- Classic 76-Style Compression Controls: Ratio, Attack, Release, Output, & Input
Classic Studio Compression Recreated For The Stage
Similar to the classic 76-style FET studio compressor, which has been used on numerous guitar, bass, and keyboard recordings, the Pedal76 effectively controls dynamics without sacrificing character. The FET circuit adds harmonic depth, while the custom transformer ensures rich tone preservation. This combination makes it the perfect compressor for guitar and bass players who seek pristine studio sound even on stage.
Critical Studio Compressor Controls
Similar to studio compressors, Pedal76 includes controls for Attack & Release, Ratio, and Input, which are crucial for managing unwanted volume changes on stage. The Attack and Release settings dictate when the compression kicks in. The Ratio determines the level of compression applied to the original signal. The Input determines the amount of original signal sent to the compression circuit, while the Output serves as a makeup gain or master volume control to ensure that Pedal76 integrates well with your setup, or to provide an extra boost when necessary.
Premium Components & Build From 76-Style Compression Experts
Pedal76 utilizes premium and custom components to achieve authentic 76-style FET compression. The custom CineMag transformer is specified to replicate the professional performance and tone of studio units in a pedalboard-friendly format. Premium capacitors, resistors, and transistors complete a circuit that spares no expense in delivering an authentic studio experience on stage.
Added Features Optimized For Live Performance

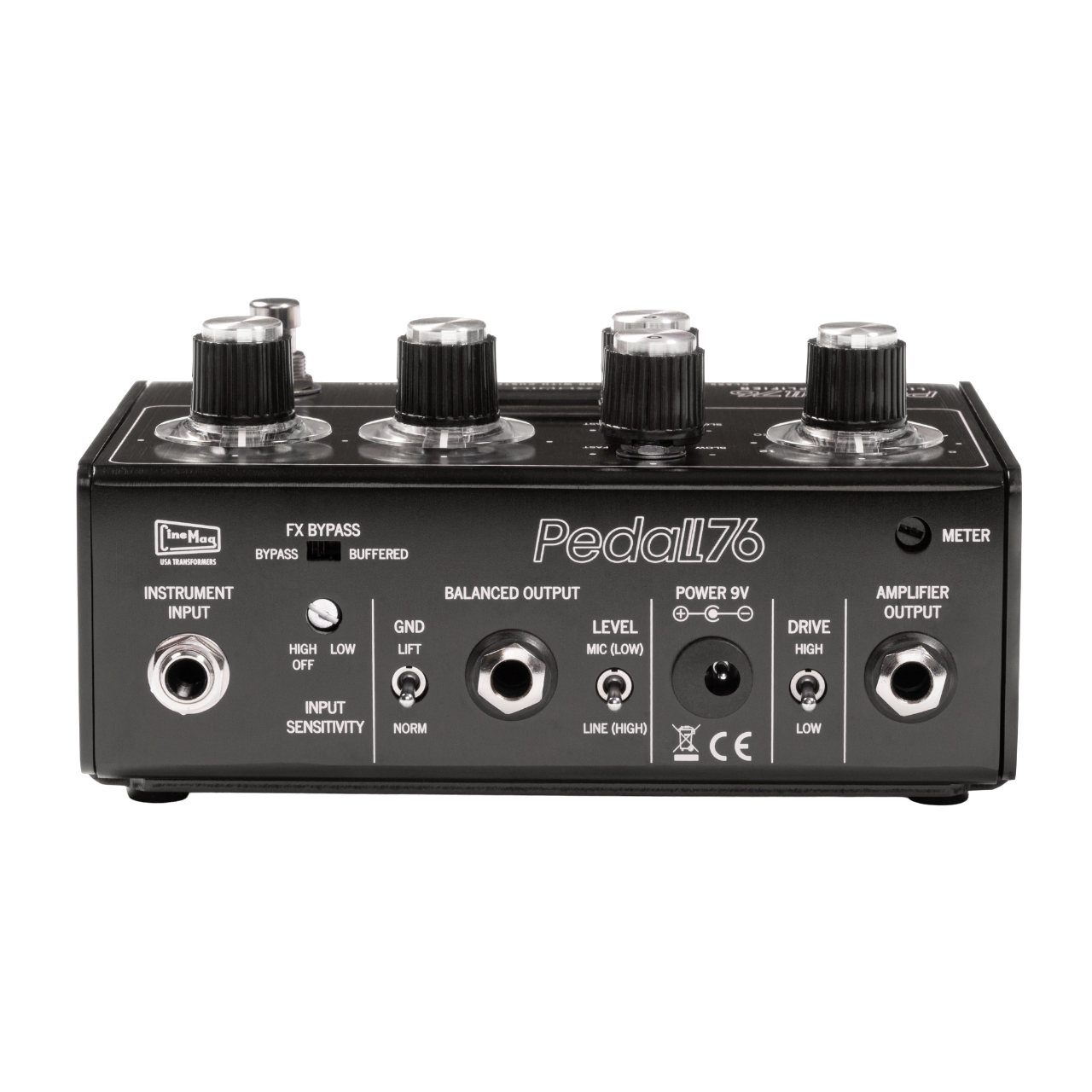

Pedal76 includes an external switch for true and buffered bypass operation, which ensures the compressor works well in your setup. It also has switches for input sensitivity, ground/lift, pad engagement, and high/low gain modes for DI operation, providing extra utility during gigs or in the studio. Additionally, the separate balanced (DI) out sends the right signal to the mixer or live recording rig, with the high gain mode adding grit and a rich transformer tone.
A History Of Building Premium 76-Style Compressors
For over 10 years, Warm Audio has been producing the WA76, a premium 76-style studio compressor. With over 20,000 units shipped worldwide, Warm Audio has honed their expertise in building this circuit and understanding the sought-after tone of vintage 76-style compressors. The renowned studio WA76 features custom CineMag transformers and premium components to deliver professional studio compression on your pedalboard.
Hand-Tested In Austin, TX
Like all Warm Audio equipment, the Pedal76 undergoes meticulous hand-testing and inspection by trained technicians with a passion for creating music in Austin, TX, USA.

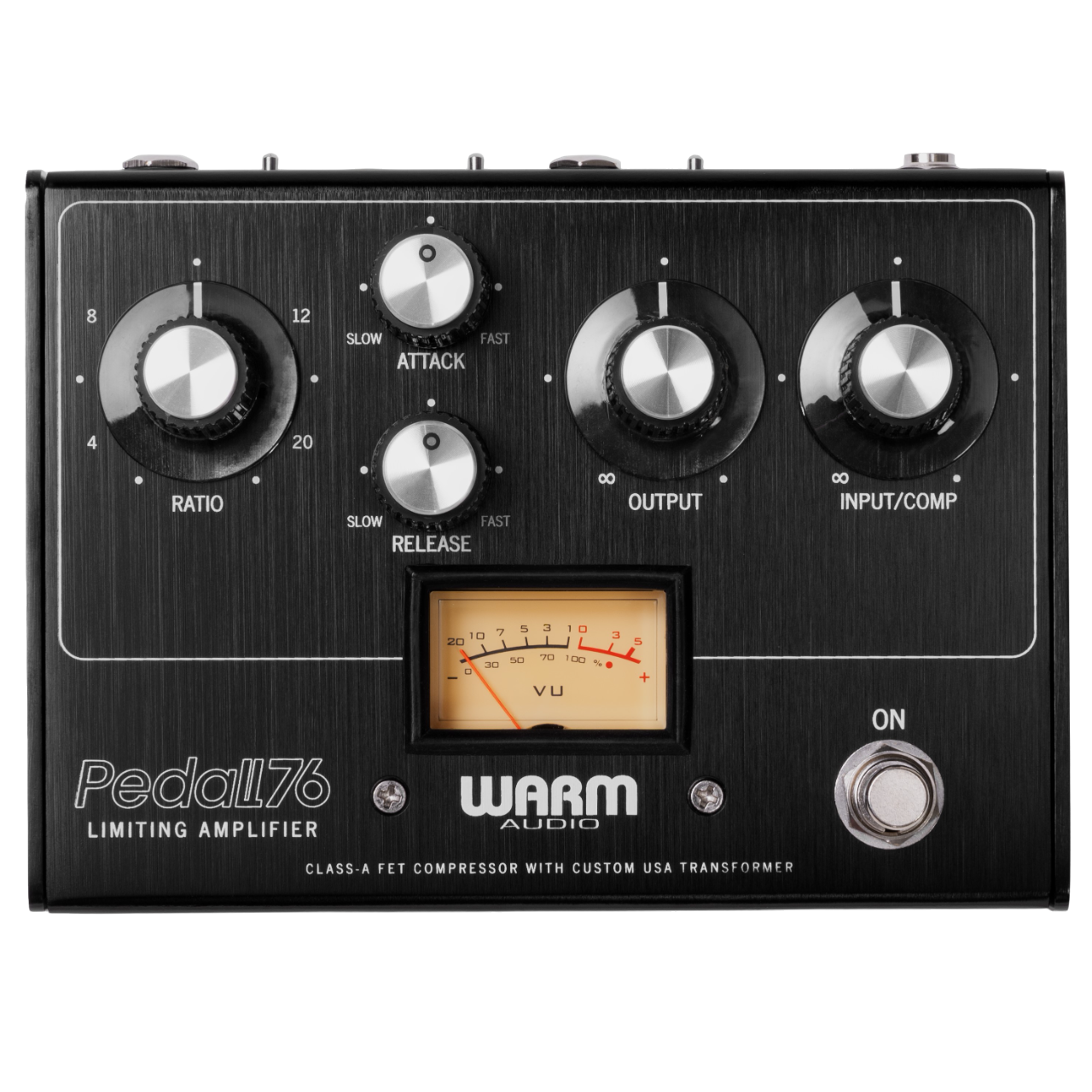

Warm Audio Pedal76 Compressor Pedal Controls
- Ratio
- Attack
- Release
- Output
- Input
- Input Sensitivity
- Ground/Lift
- DI Output Pad
- DI High/Low Gain With Level Boost On Balanced Output
Warm Audio Pedal76 Compressor Pedal Specs
- External True Or Buffered Bypass Switch
- Vintage-Style Amber VU Meter For Gain Reduction Indication
- Ultra-Low-Noise With 100% Discrete Analog Signal Path
- External Power Supply With 9V Battery Compartment. External Power Supply Leverages Internal Voltage Increase Via DC-DC Voltage Converter
What's in the box of our Warm Audio Pedal76 Compressor Pedal?
- Pedal76 Compressor Pedal
- Branded Pedal Box
- Warm Audio and DeathCloud Stickers
- Quality Control Card
- Manual
- Candy
Warm Audio Pedal76 Compressor Pedal Dimensions
- Dimensions: 6.25 x 4.5 x 2.25"
- Weight: 1.65 lbs
Warm Audio Pedal76 Compressor Pedal Popular Uses
- With Clean Amps For Extra Tight/Percussive Funk Tones
- Add Sustain To Solos To Stand Out And Sit Above The Mix
- Add A Professional Touch To Bass Guitar Live And In Studio
