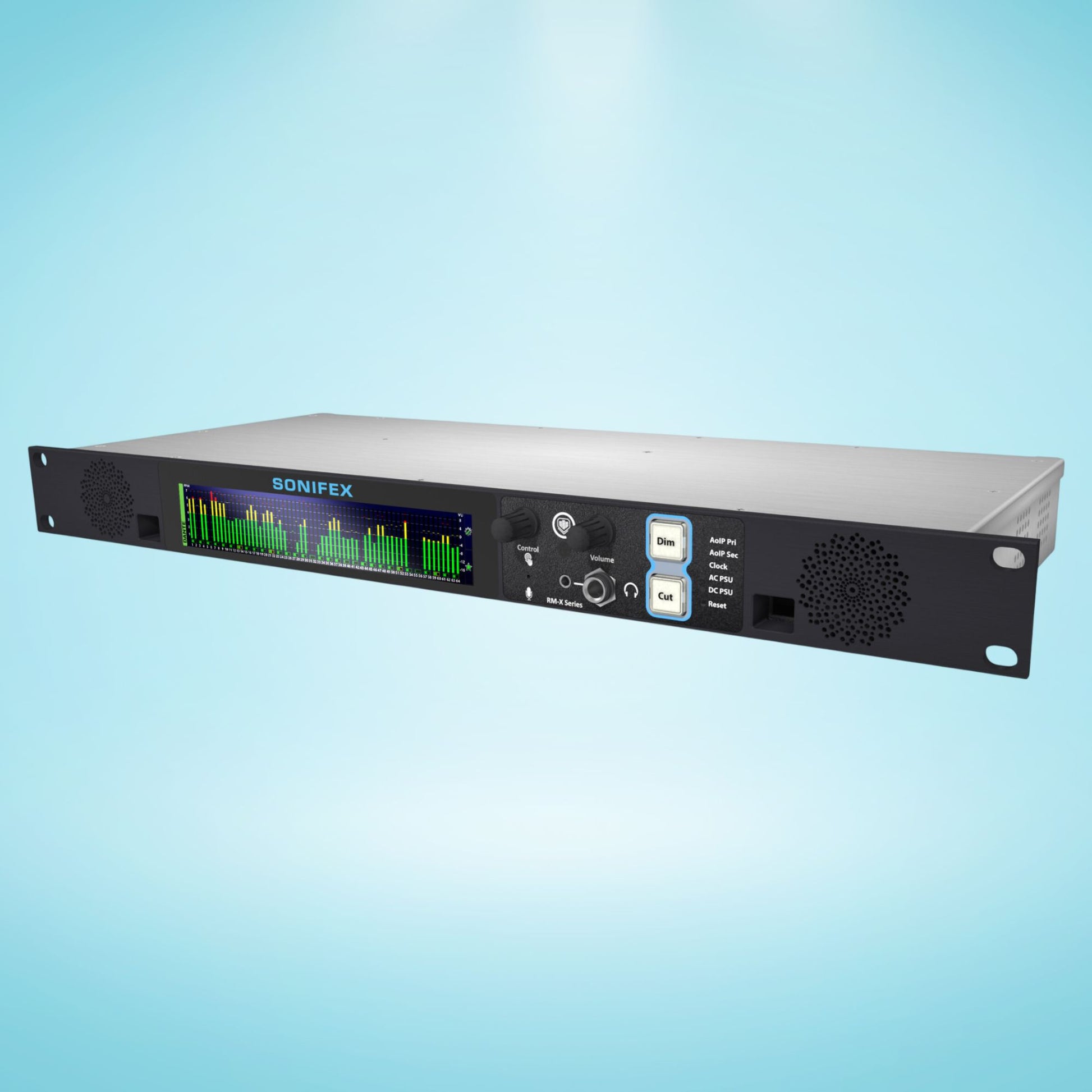

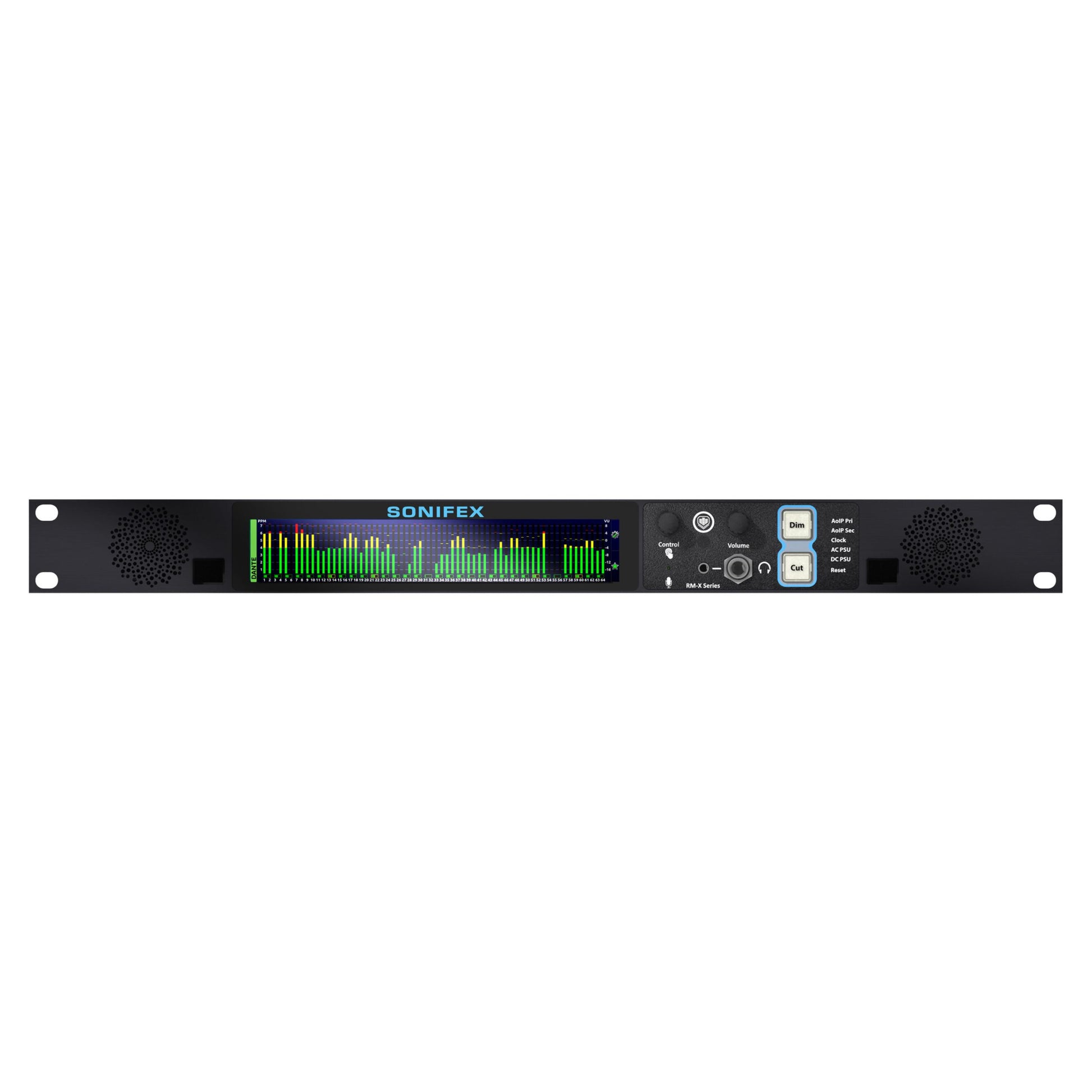

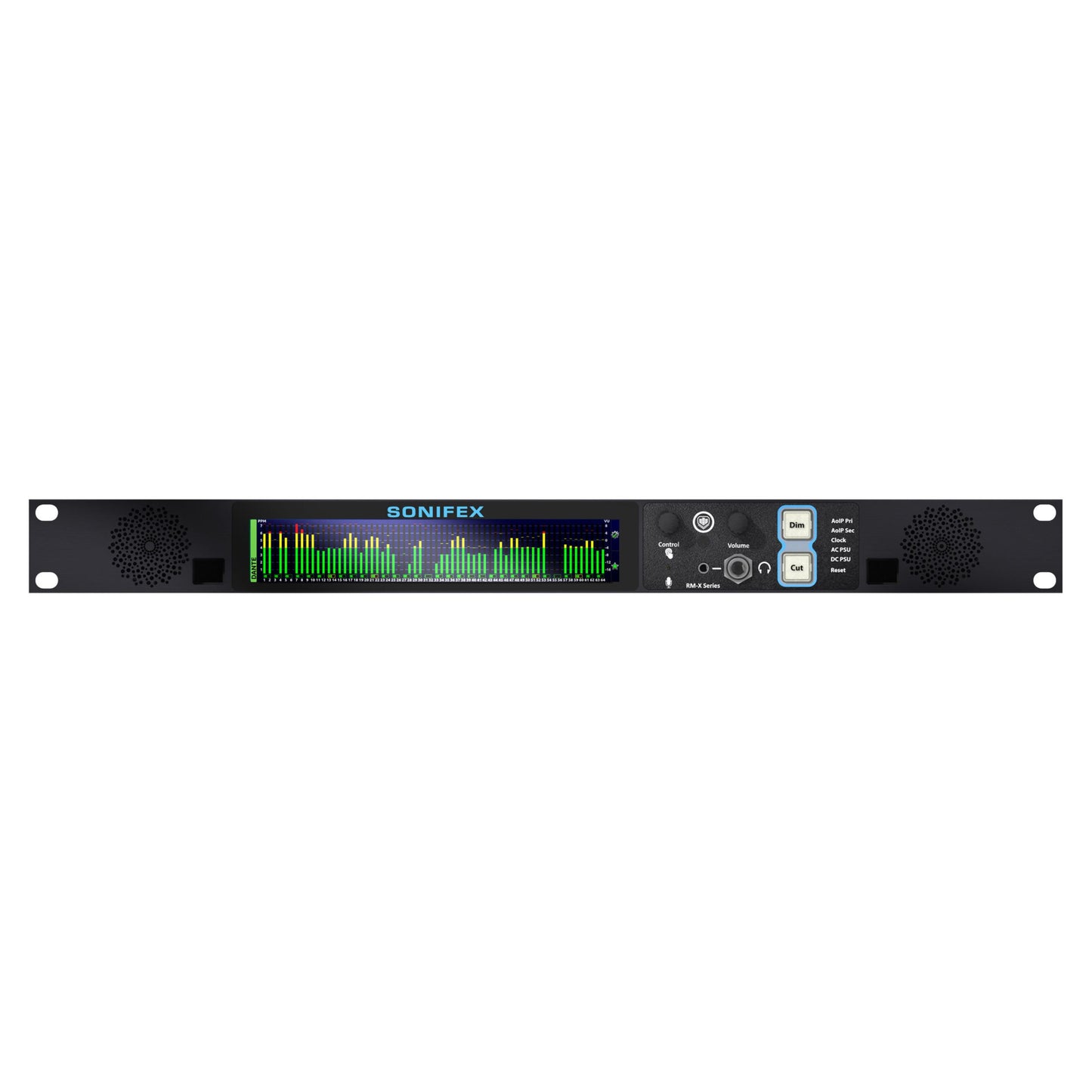

Sonifex RM-X-64-RAV 64-Channel RAVENNA & MADI Reference Monitor
The Sonifex RM-X-64-RAV 64-Channel RAVENNA & MADI Reference Monitor is a powerful all in one monitoring solution built for busy broadcast and production environments. It gives you an easy way to monitor and manage a large number of audio sources from a single compact unit. With a bright touchscreen, built in speakers, headphone connections, and dependable backup systems, it helps you stay in control while keeping your workspace clean and organized. Its flexible design makes it a smart choice for professionals who need reliable performance every day.
Sonifex RM-X-64-RAV 64-Channel RAVENNA & MADI Reference Monitor Review
Built for demanding audio workflows, the Sonifex RM-X-64-RAV combines 64 channels of RAVENNA/AES67 audio networking with 64 channels of MADI monitoring for a total of 128 channels. The intuitive 6.6 inch touchscreen allows fast source selection, detailed metering, EQ adjustments, and custom monitoring group management. Expansion slots provide room for additional analogue, digital, or SDI sources, allowing the unit to grow alongside your needs. Dual network connections, fiber support, redundant power inputs, and remote control options make it a dependable monitoring hub for control rooms, OB vehicles, and broadcast facilities.
Sonifex RM-X-64-RAV 64-Channel RAVENNA & MADI Reference Monitor Features
- Monitor hundreds of audio channels from a single compact unit
- Bright 6.6 inch touchscreen provides fast and simple operation
- Built in speakers and headphone outputs make monitoring convenient
- Create custom monitoring groups for quick access to important sources
- Built in microphone supports easy talkback communication
- Redundant power and network connections help prevent downtime
Sonifex RM-X-64-RAV 64-Channel RAVENNA & MADI Reference Monitor Specs
- Supports 64 channels of RAVENNA/AES67 audio and 64 channels of MADI monitoring
- Expandable with analogue, digital, and 12G SDI input modules
- Supports up to 256 monitored channels when fully configured

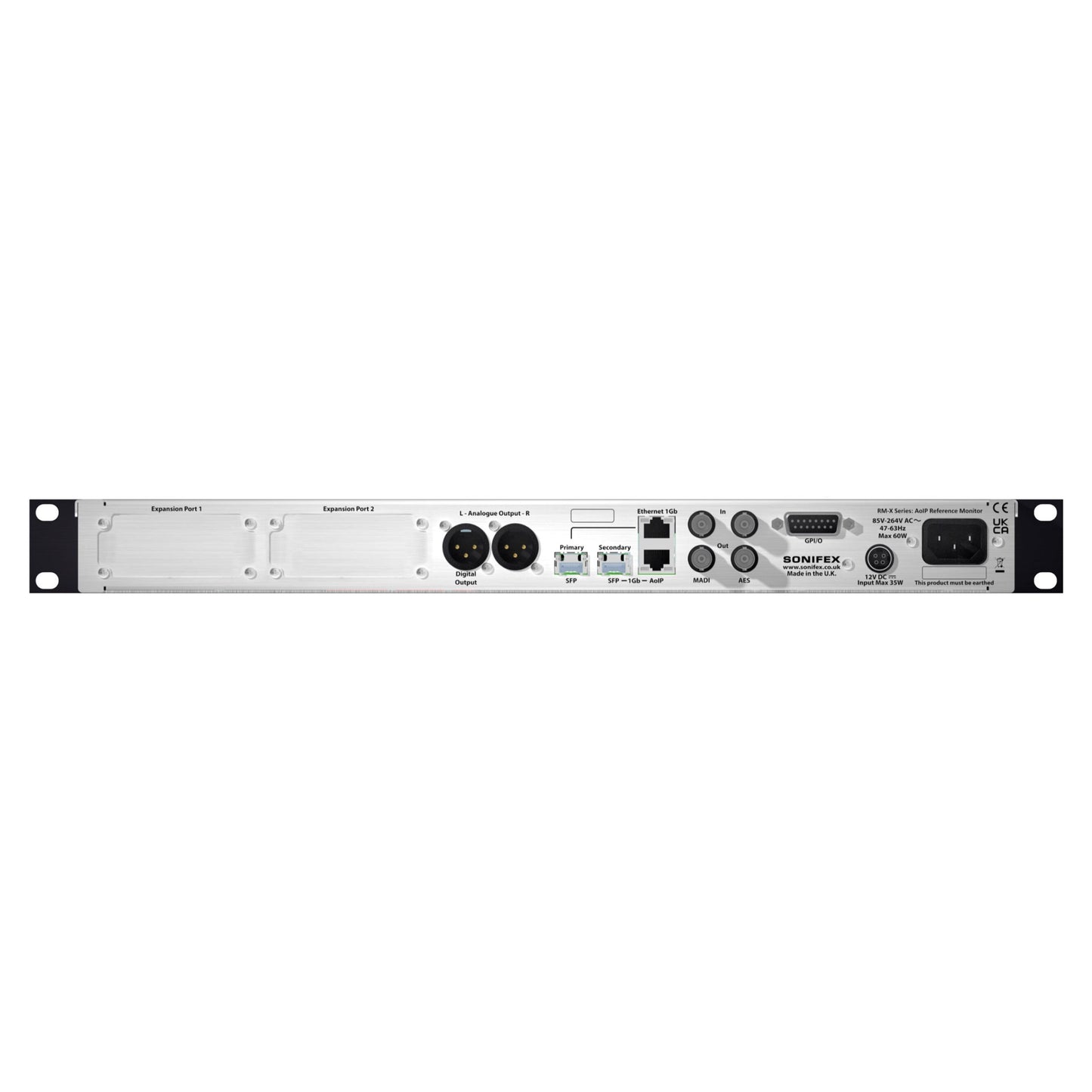

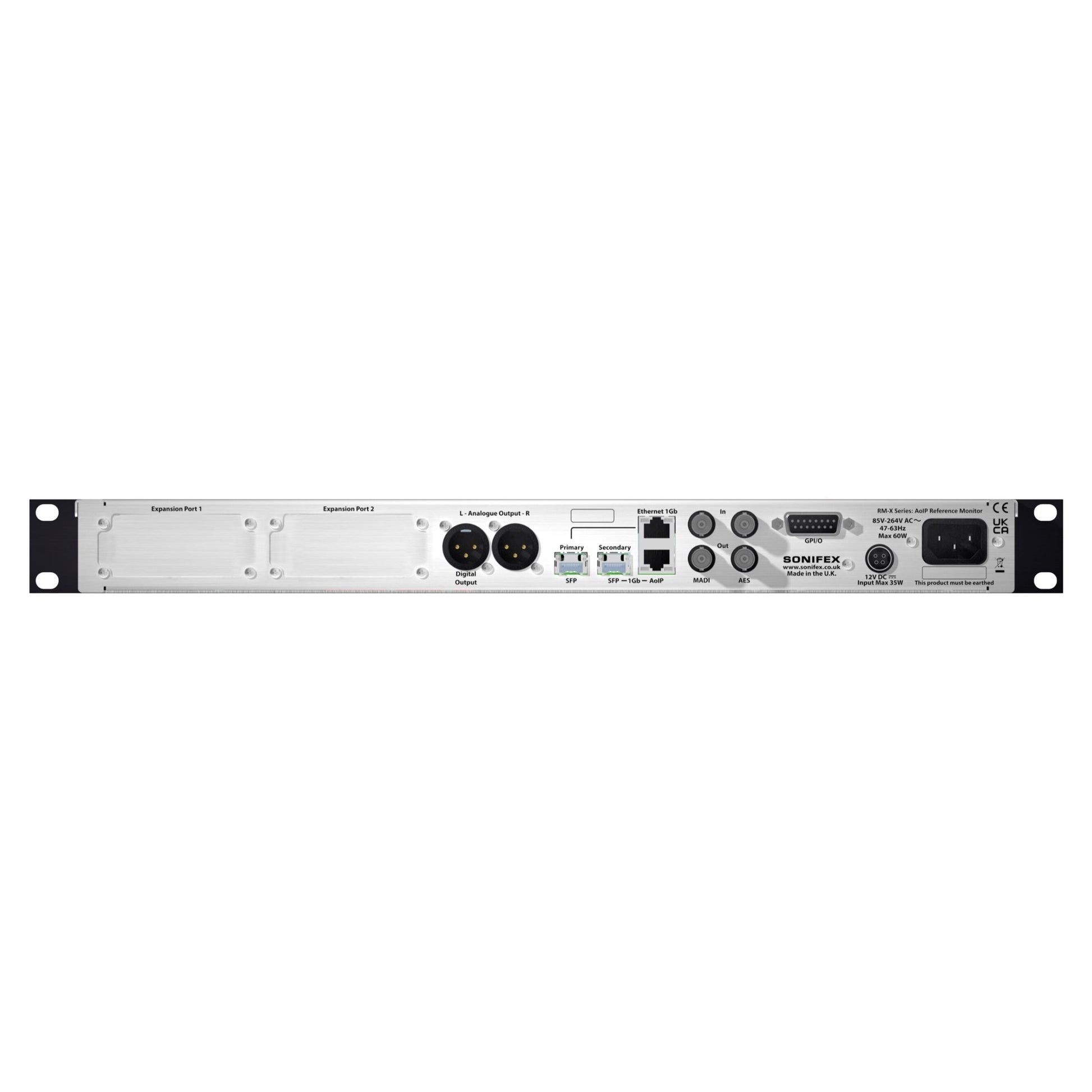

- Dual network ports with switched or redundant operating modes
- Dual SFP fiber ports for additional network connectivity
- Two balanced XLR line outputs for external monitoring systems
- Front panel 1/4 inch and 3.5 mm stereo headphone outputs
- AC power input rated from 85 to 264 VAC at 47 to 63 Hz
- Supports 12V DC backup power with automatic switchover
- Dimensions 19 inches wide, 12 inches deep, and 1.73 inches high
- Weight 10 lb
