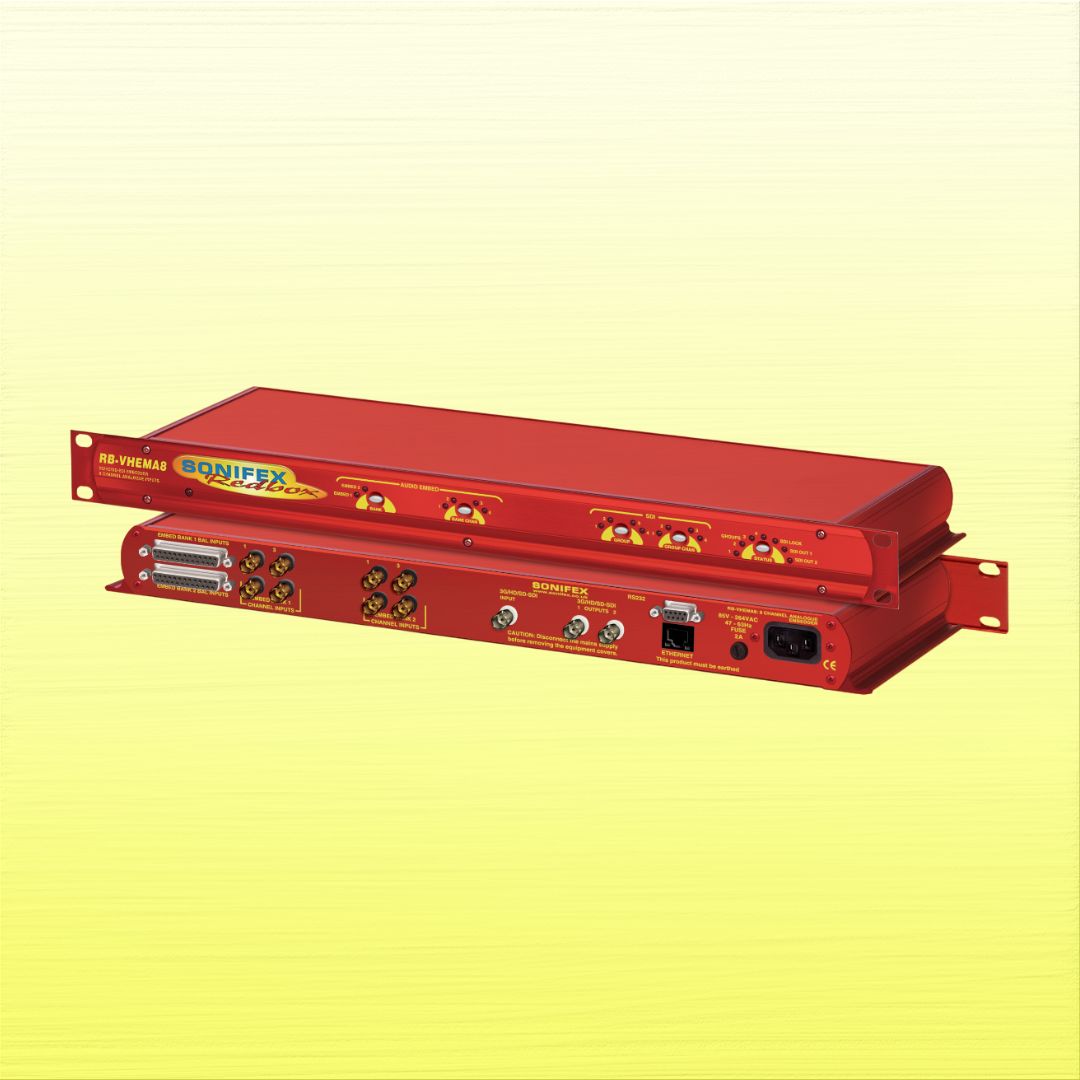

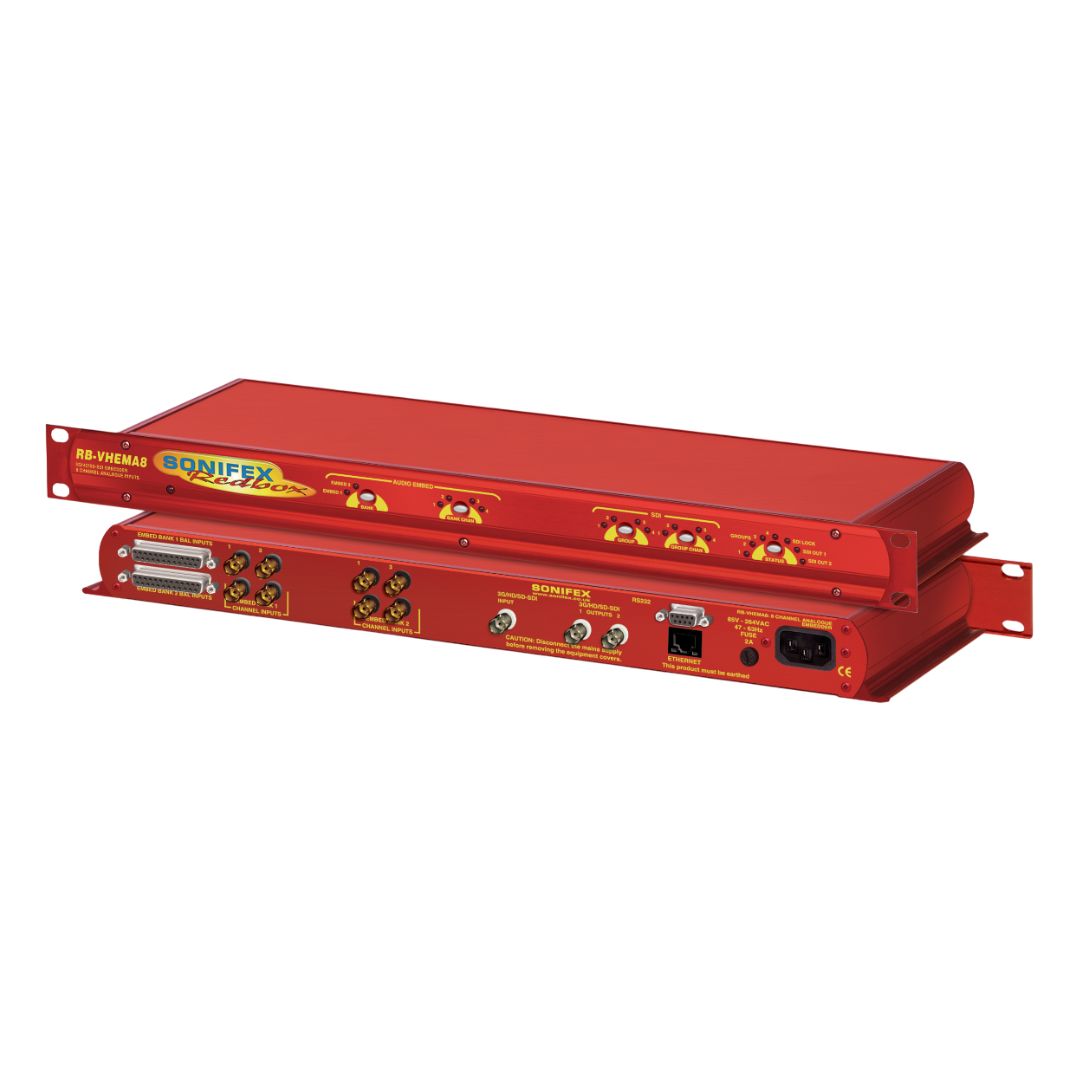

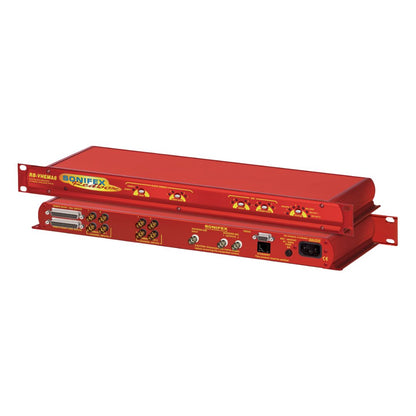

Sonifex RB-VHEMA8 3G/HD/SD-SDI Embedder 8 Channel Analog Inputs
The Sonifex RB-VHEMA8 3G/HD/SD-SDI Embedder with 8 Channel Analog Inputs is built for serious media professionals who need clean, high-quality audio and video integration. This unit takes your existing video signal and lets you blend in up to 8 analog audio channels—quickly and easily—so everything runs smoothly and sounds crystal clear. It’s a reliable workhorse in a sleek 1U rackmount that keeps your workflow sharp and efficient.
Sonifex RB-VHEMA8 3G/HD/SD-SDI Embedder 8 Channel Analog Inputs Review
The RB-VHEMA8 isn’t just about embedding—it gives you real-time control over every audio group and channel via a front panel interface with smart LED indicators. Whether you're routing analog audio to one or both SDI outputs, or choosing which groups to pass through or delete, this unit keeps you in command. Built-in Ethernet and RS232 ports allow remote setup through Sonifex SCi software, making it a strong fit for demanding broadcast or production environments. Plus, the triple-rate SDI receiver handles everything from NTSC and PAL to full 1080p60 video.
Sonifex RB-VHEMA8 3G/HD/SD-SDI Embedder 8 Channel Analog Inputs Features
- Fits right into a 1U rack and saves space
- Lets you embed up to 8 audio channels into your video feed

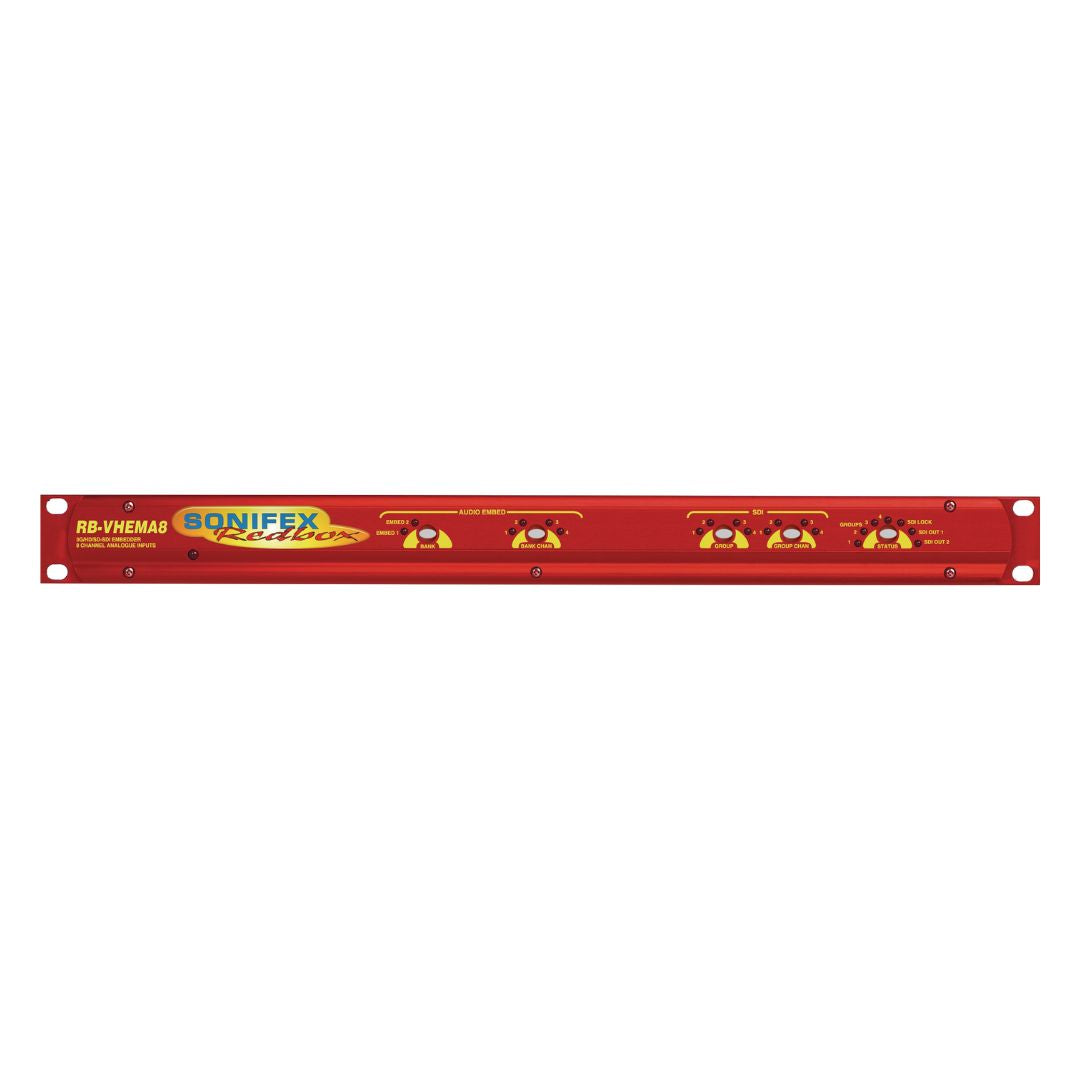

- Easy-to-use front panel with clear buttons and LED lights
- Works with almost any video format from standard to 1080p HD
- Remote control ready with both Ethernet and serial port options
- Offers precise control of audio levels for every input channel
Sonifex RB-VHEMA8 3G/HD/SD-SDI Embedder 8 Channel Analog Inputs Specs
- Accepts +12dBu, +18dBu, or +24dBu input levels (jumper selectable)

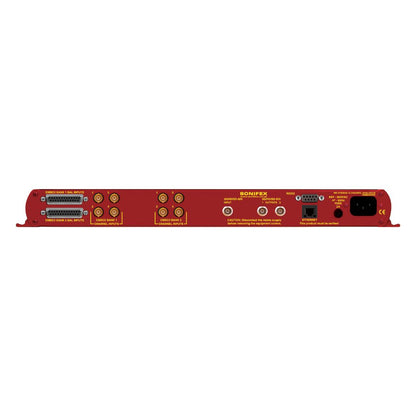

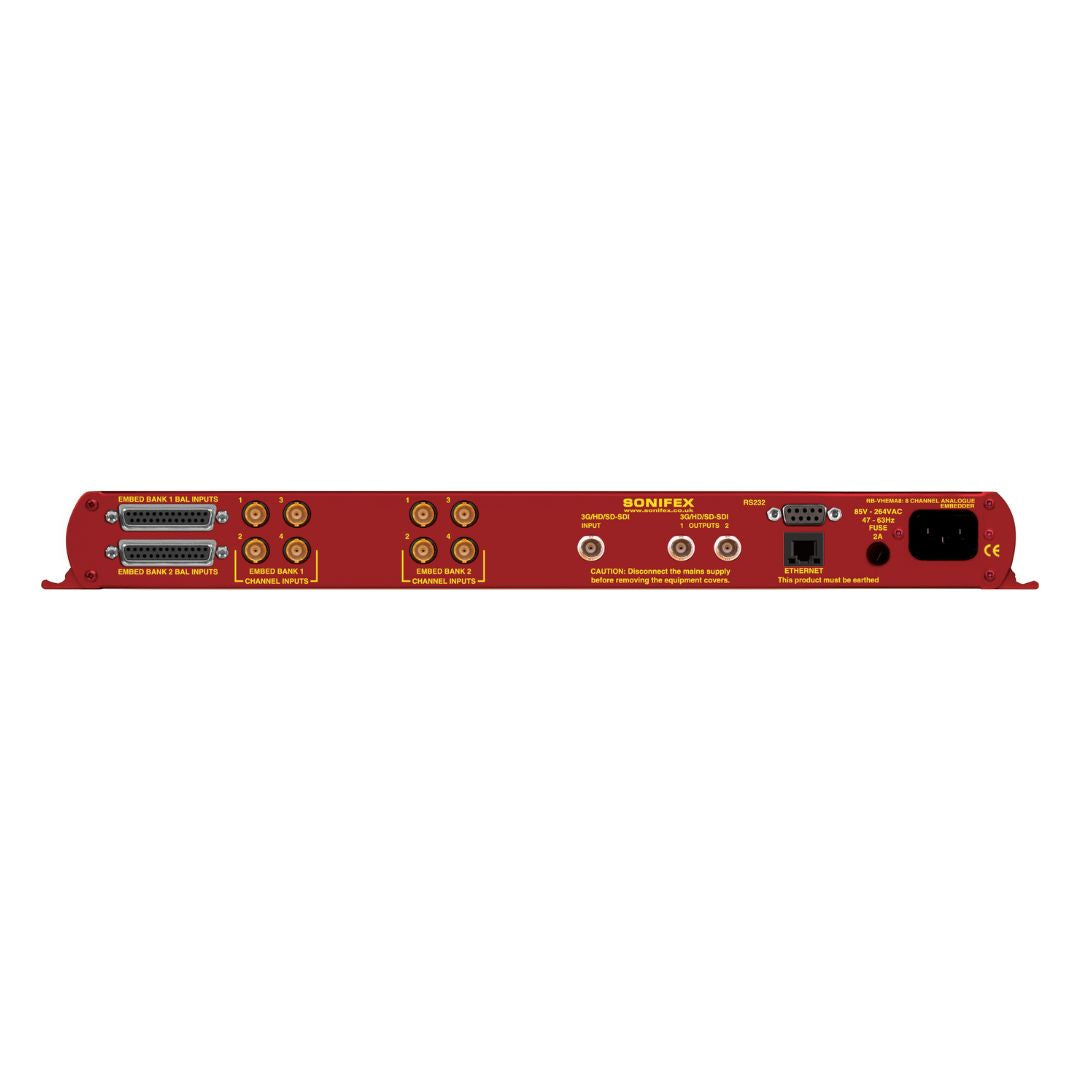

- Includes 2 re-clocked SDI outputs via BNC connectors
- Power supply supports 85–264V AC at 47–63Hz, max 18 watts
- Video delay is 22μs (SD), 8μs (HD), and 4μs (3G)
- Dimensions (raw): 19" wide × 6.2" deep × 1.7" high
- Weight: 4.0 lbs
