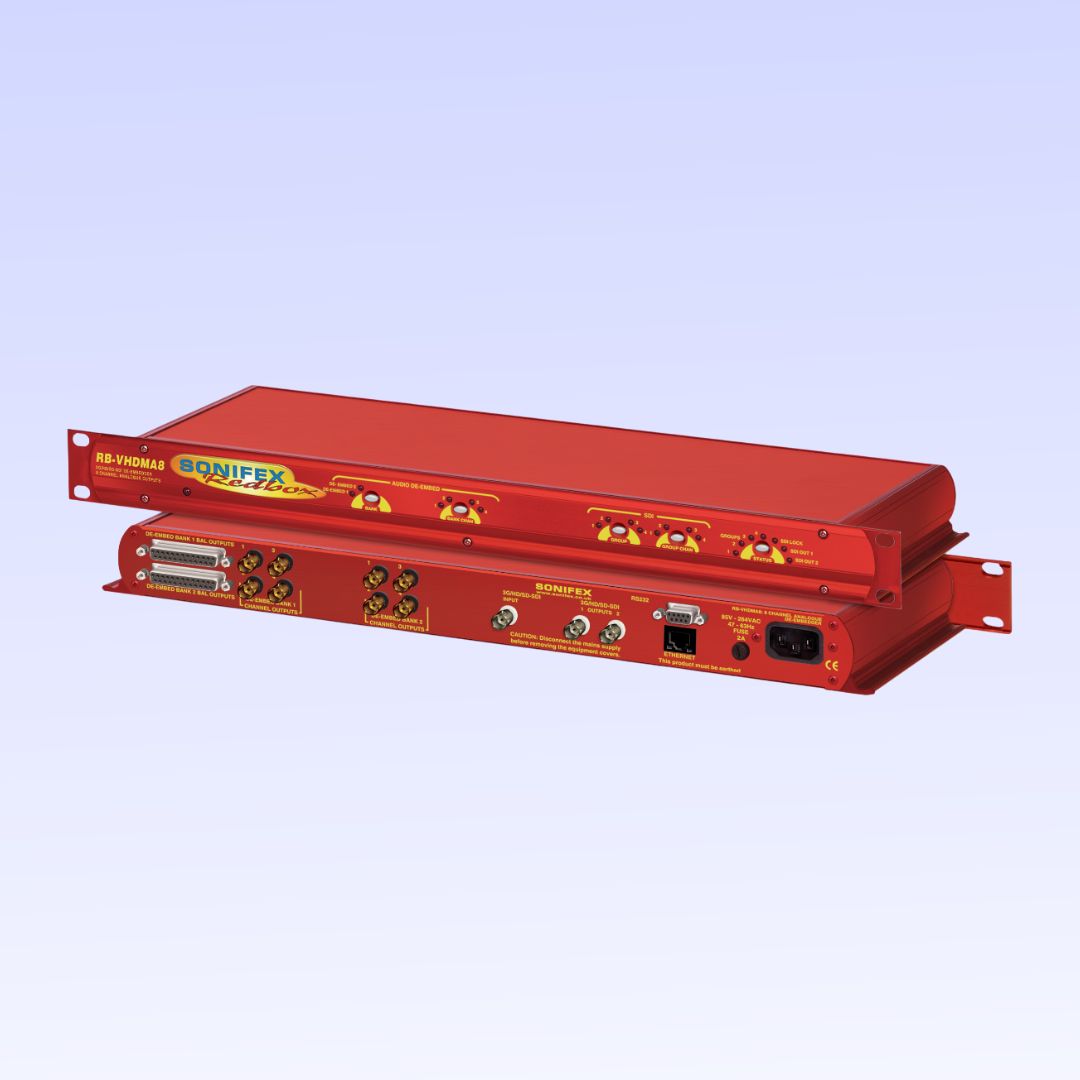

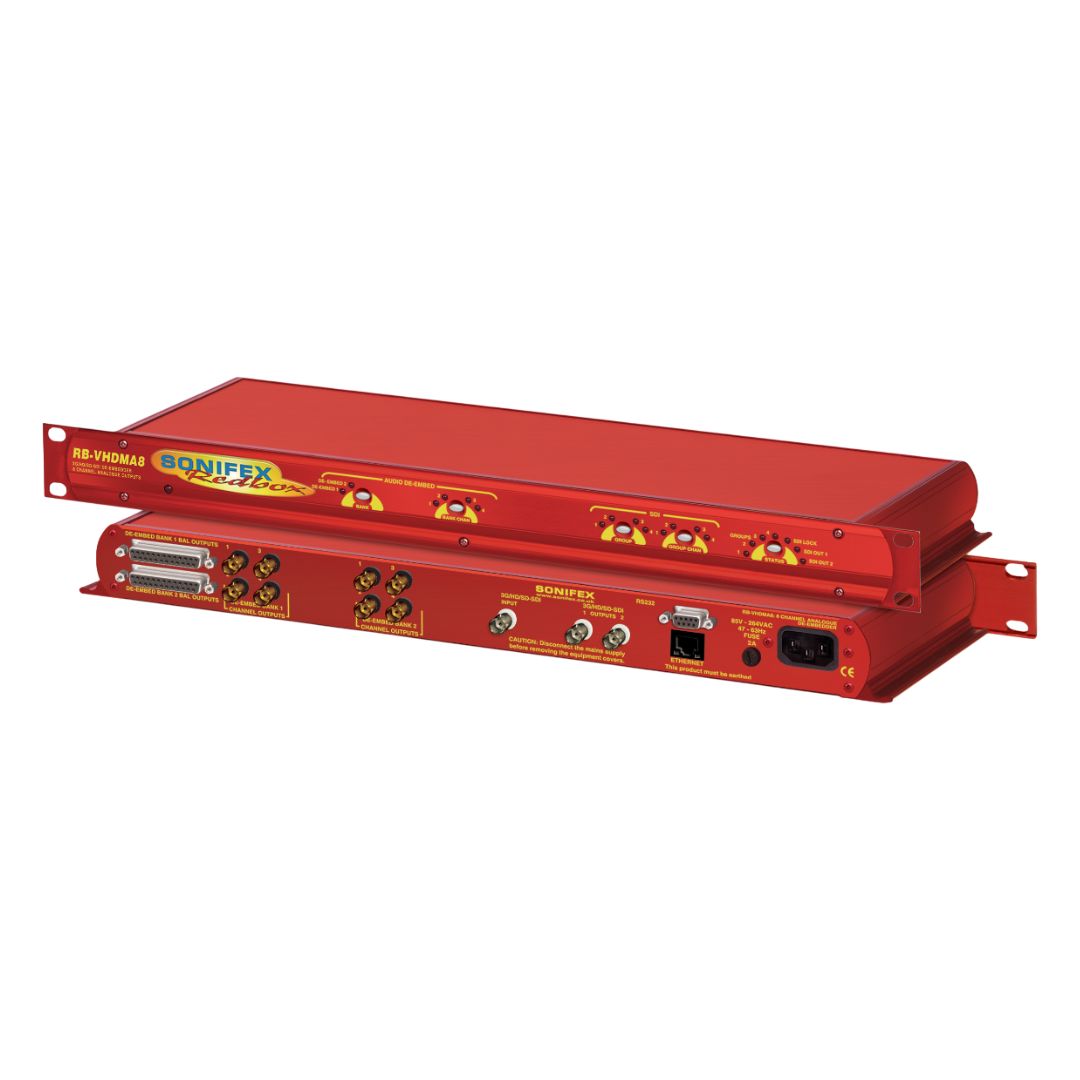

Sonifex RB-VHDMA8 3G/HD/SD-SDI De-Embedder
The Sonifex RB-VHDMA8 3G/HD/SD-SDI De-Embedder makes it easy to pull audio from video signals and send it out as clean, reliable sound. Built into a compact 19-inch rack unit, it gives you up to eight channels of professional-quality audio, making it perfect for studios, broadcasters, or anyone needing precision sound control.
Sonifex RB-VHDMA8 3G/HD/SD-SDI De-Embedder Review
This powerful unit handles 3G, HD, and SD video formats, supporting everything from standard PAL and NTSC up to 1080p at 60Hz. It lets you choose exactly which audio channels you want to extract, while offering flexible level adjustments from -24dB to +24dB in fine 0.5dB steps. With dual re-clocked SDI outputs, balanced and unbalanced audio connections, and control via Ethernet or serial port, the RB-VHDMA8 is designed for professional workflows that demand accuracy and dependability.
Sonifex RB-VHDMA8 3G/HD/SD-SDI De-Embedder Features
- Handles up to eight audio channels with smooth, clear sound
- Works with standard video formats from NTSC and PAL up to full HD 1080p

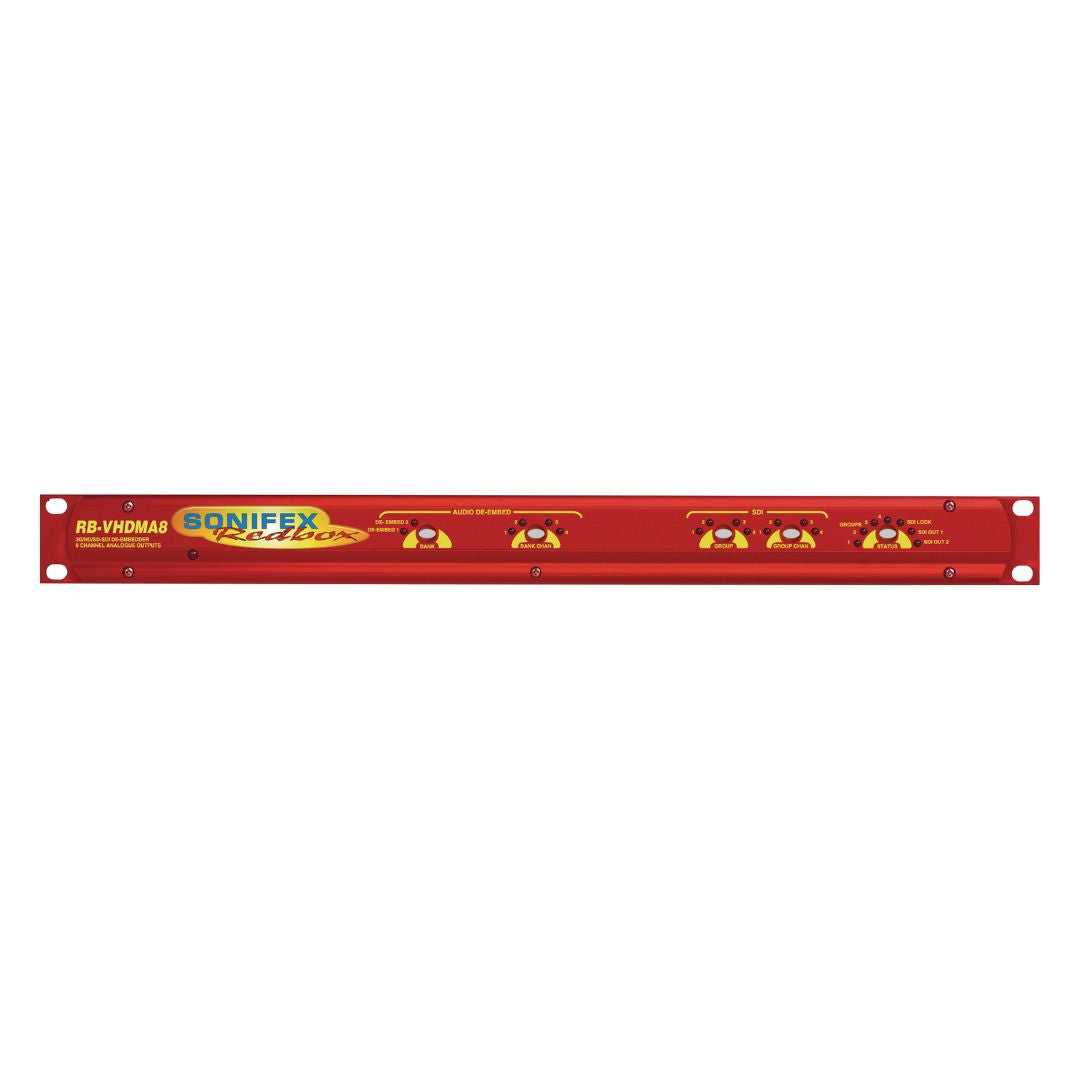

- Easy front panel buttons and LED lights for quick setup
- Remote control ready through Ethernet or serial connection
- Balanced and unbalanced audio outputs for flexible use
- Compact 1U rack design that saves space in your setup
Sonifex RB-VHDMA8 3G/HD/SD-SDI De-Embedder Specs
- Maximum output level +24dBu with gain settings of +12, +18, or +24dBu
- Dimensions 19in W x 6.2in D x 1.7in H, boxed 23.2in W x 10.8in D x 4.3in H
- Weight 4.0lb
- Power supply 85–264VAC at 47–63Hz, max 14W

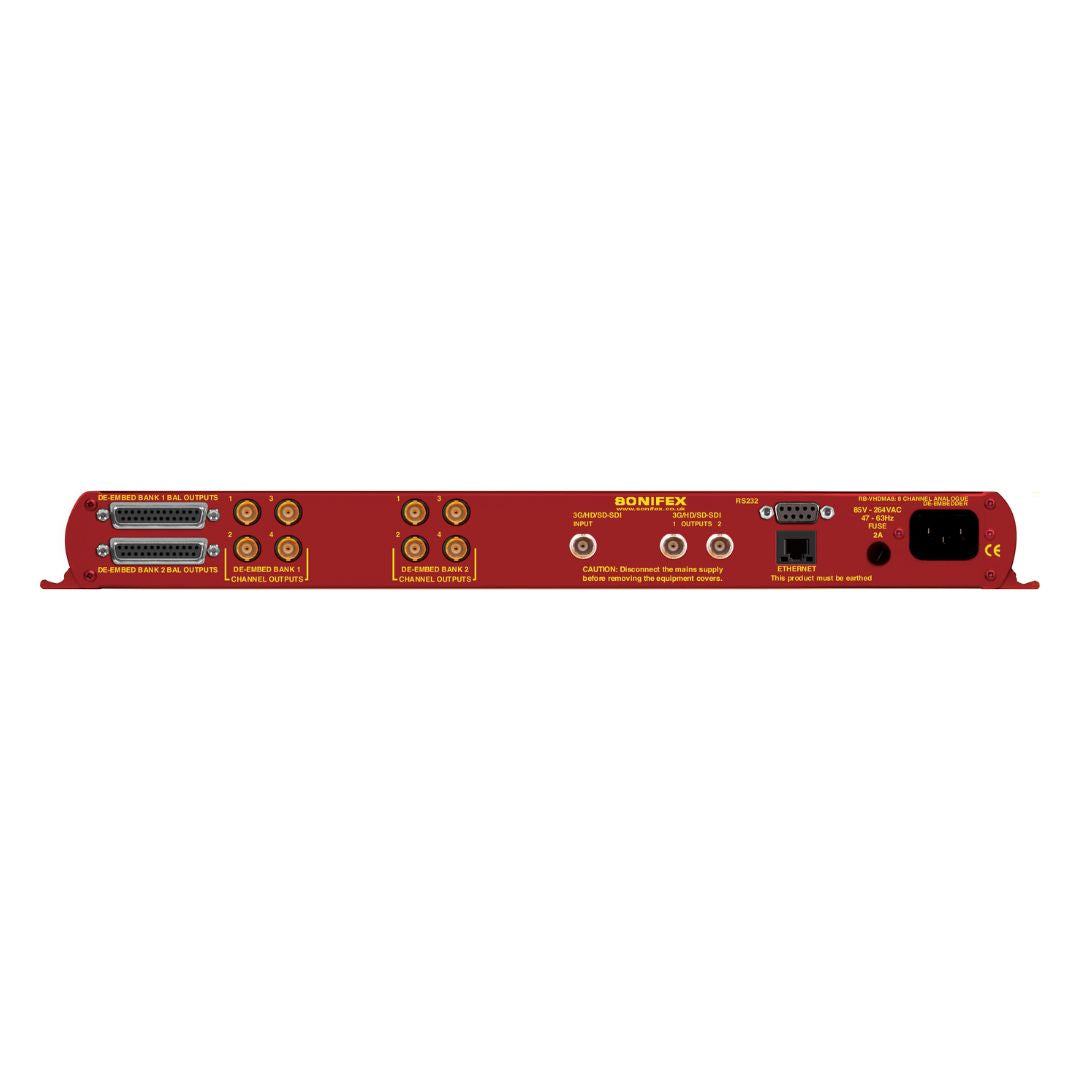

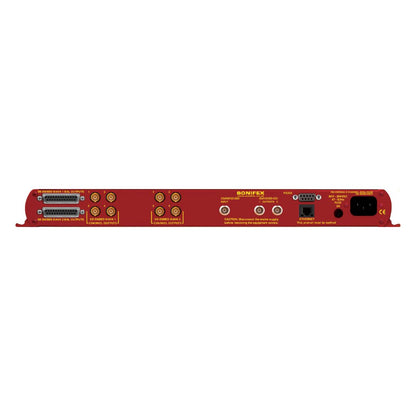

- Connections include 8 BNC outputs, 2 D-type 25-pin connectors, 1 BNC SDI input, and 2 BNC SDI outputs
- Signal-to-noise ratio better than -106dB (balanced)
