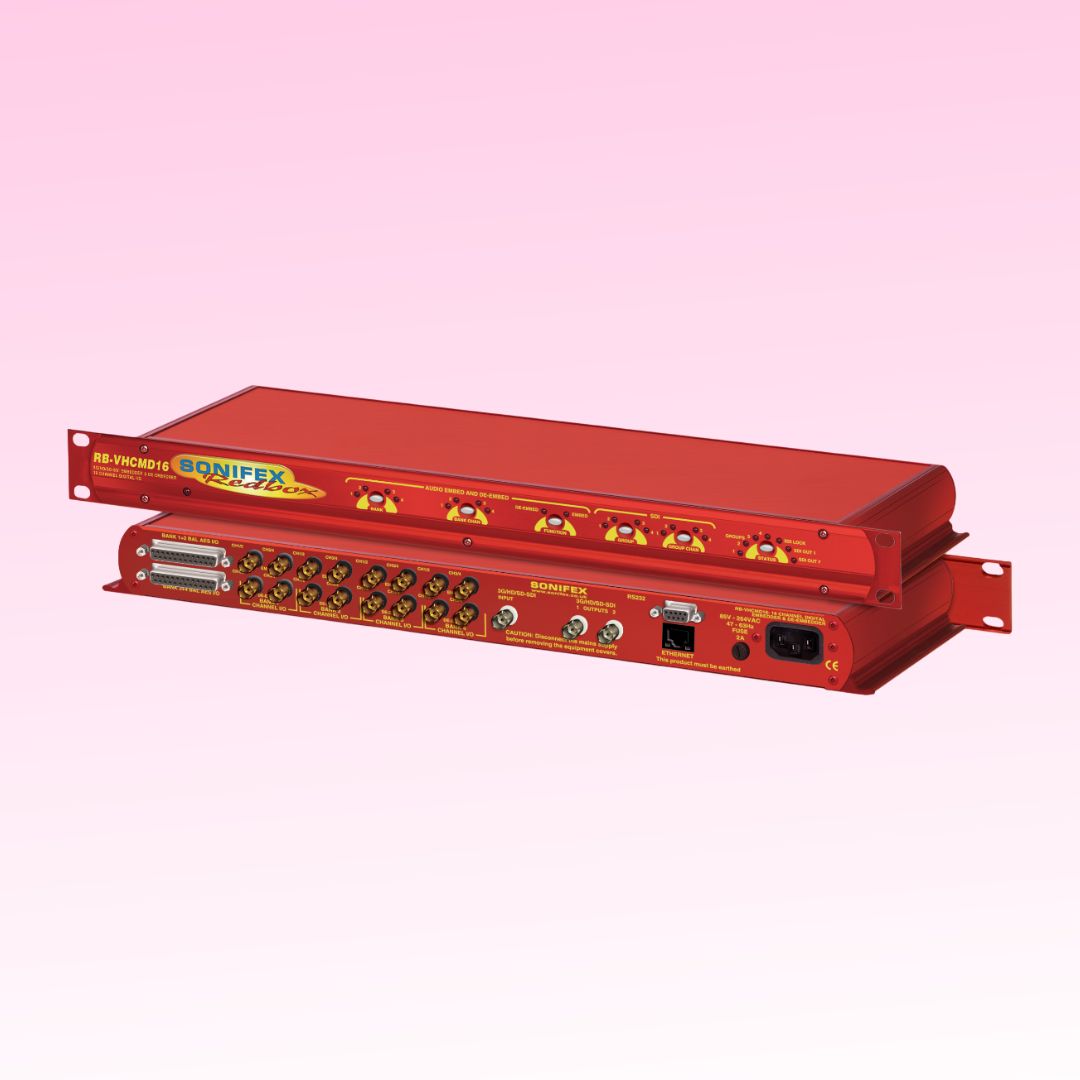

Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder
The Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder is a powerful all-in-one solution for handling both video and audio signals. With its sleek 1U rack design, it gives you the flexibility to pull audio out of video or put it back in with ease. Whether you’re working in broadcast, production, or post, this unit keeps your workflow smooth and reliable.
Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder Review
This professional tool combines a 16-channel de-embedder and a 16-channel embedder into one system, offering unmatched versatility. It allows you to choose any audio channel from an SDI video signal and re-route it exactly where you need. Dual video paths give you extra control, and the built-in sample rate conversion ensures audio stays locked to your video. With Ethernet or serial control options through Sonifex SCi software, you can fine-tune everything remotely. Its ability to support all major 3G, HD, and SD standards makes it a future-proof investment for any studio.
Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder Features
- Fits into a single rack space for easy setup and storage
- Lets you add or remove audio from video signals with no hassle

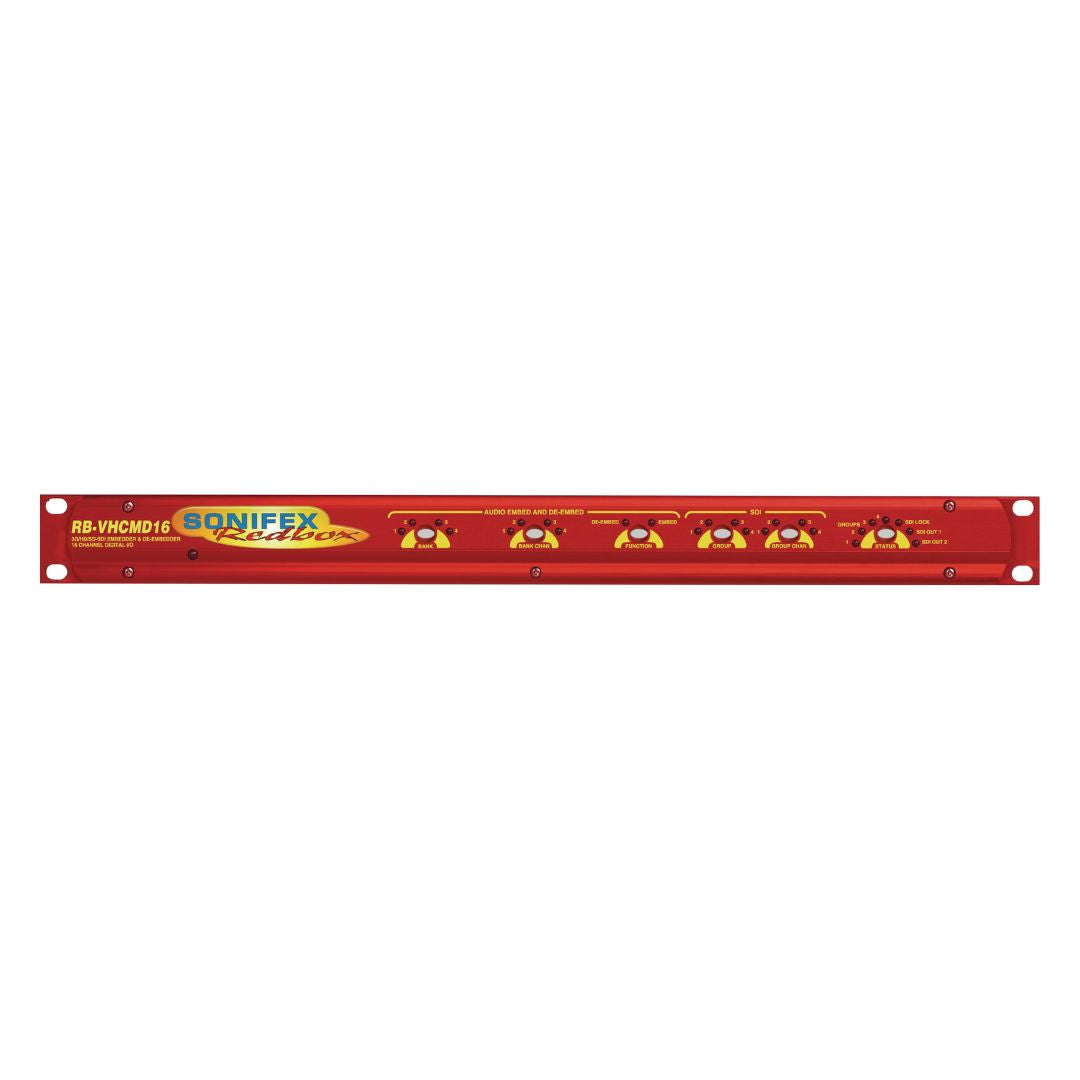

- Simple front panel controls with clear LED status indicators
- Remote control through Ethernet or serial connection for flexibility
- Reliable, re-clocked outputs keep your video signal clean and stable
- Works across a wide range of video formats up to full 1080p at 60Hz
Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder Specs

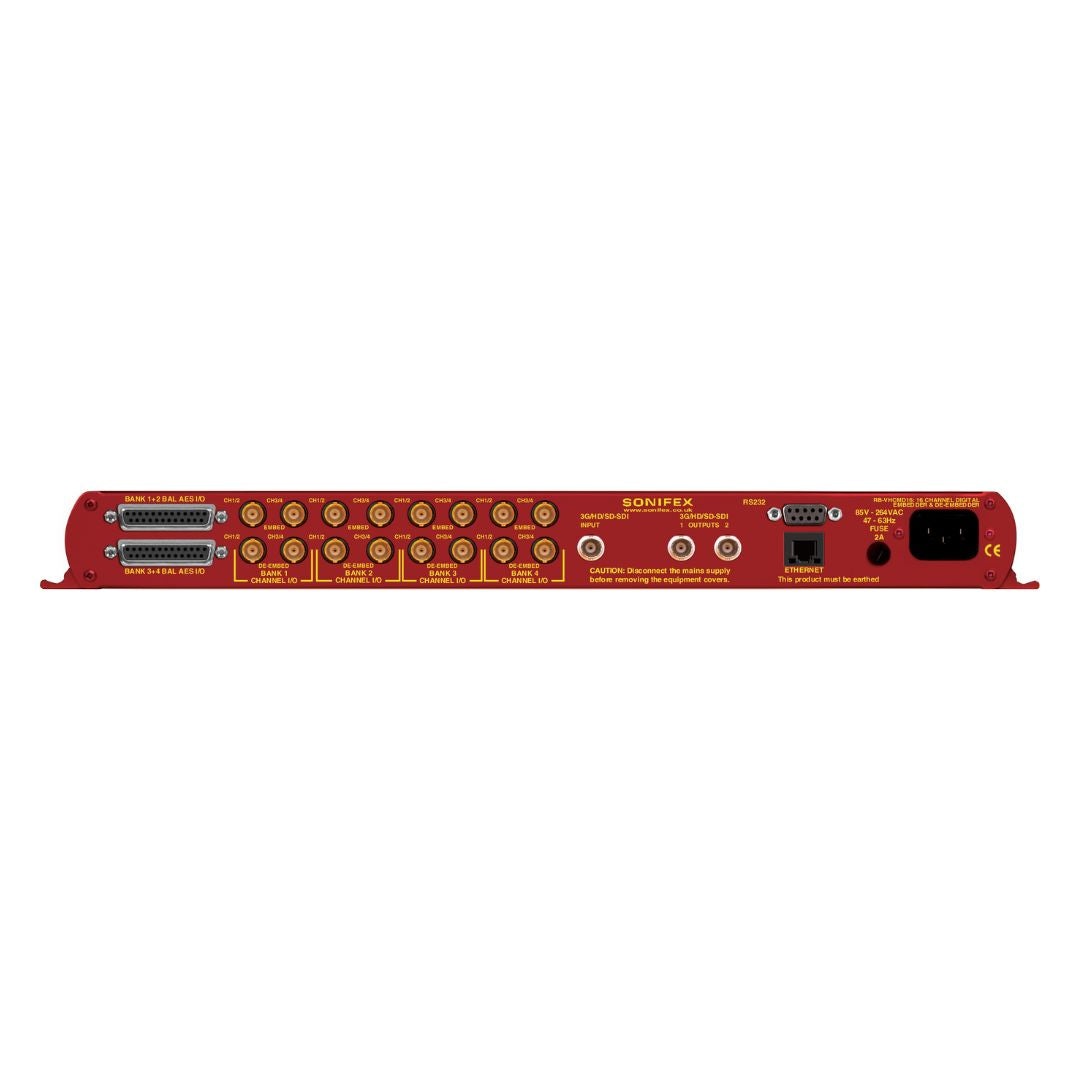

- 1 BNC SDI input and 2 BNC SDI outputs with re-clocking
- 16 digital audio inputs and 16 outputs via BNC or 25-way D-type connectors
- Input sample rates from 32kHz to 192kHz, converted to 48kHz
- Digital audio connections switchable between 75Ω or 110Ω impedance
- Power supply supports 85–264V AC, 47–63Hz, max 13W
- Dimensions 19in W x 6.2in D x 1.7in H (1U rackmount)
- Weight 4lb
