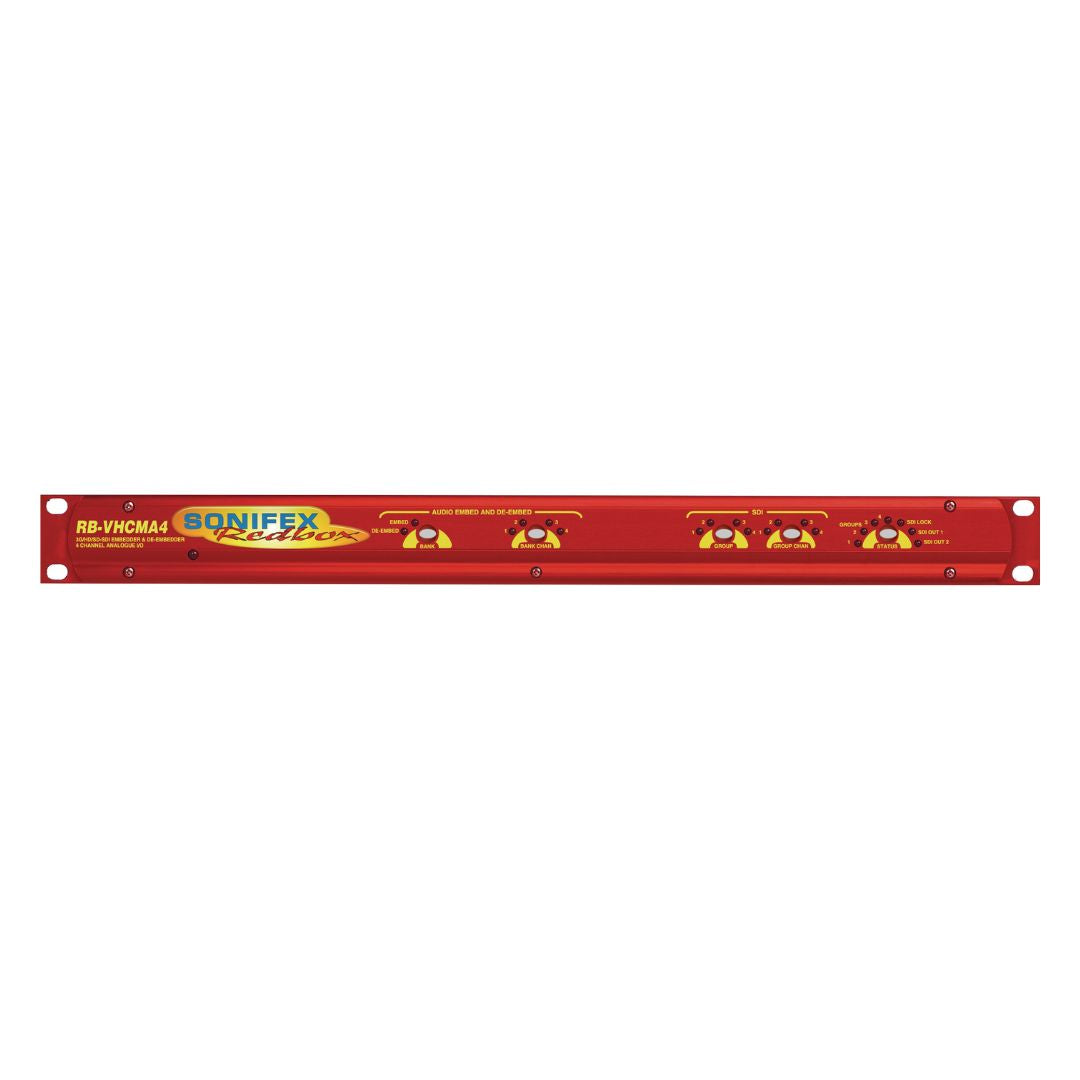

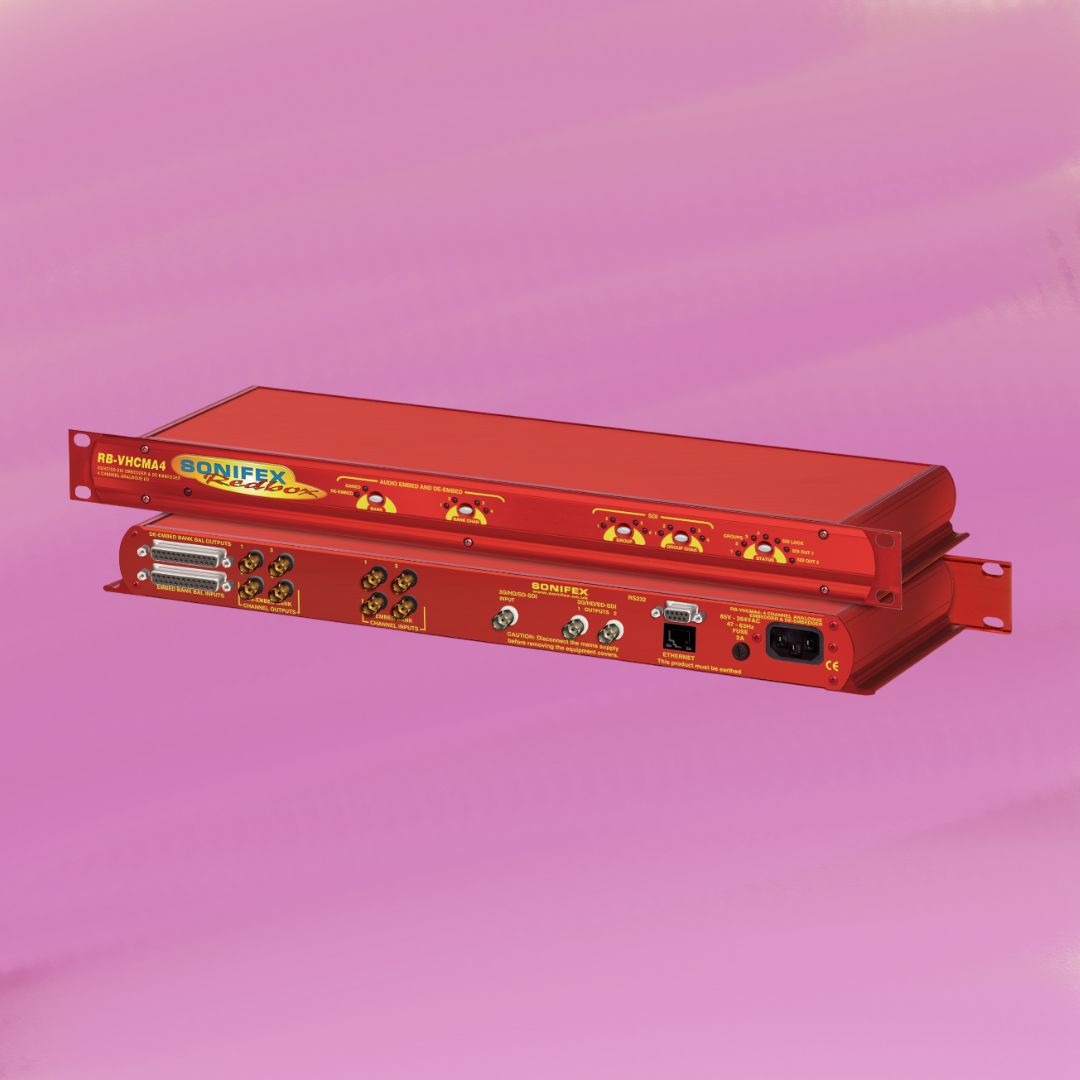

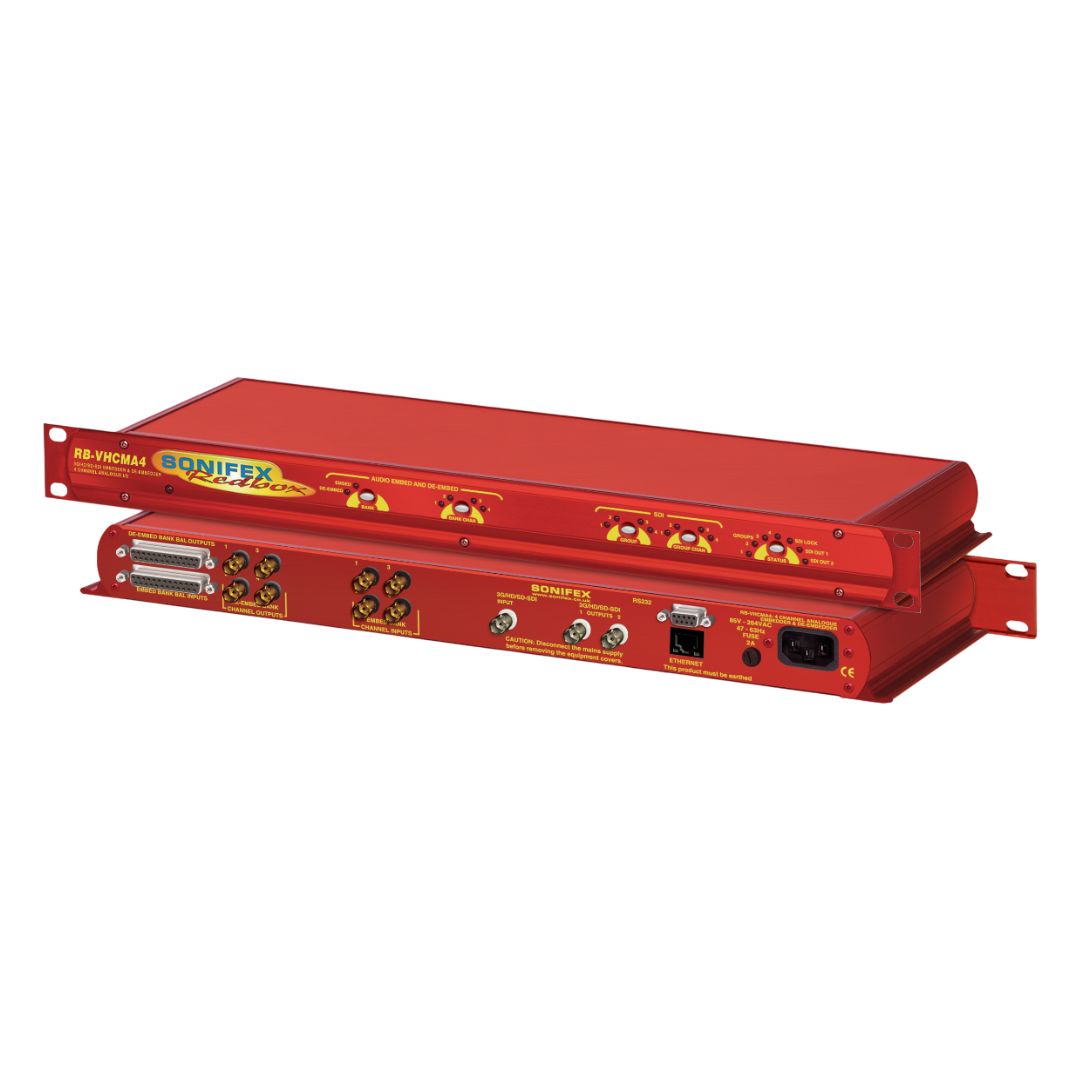

Sonifex RB-VHCMA4 3G/HD/SD-SDI Embedder/De-Embedder
The Sonifex RB-VHCMA4 3G/HD/SD-SDI Embedder/De-Embedder makes handling audio and video together simple and reliable. It takes sound from video signals and sends it out as clear, balanced audio, while also letting you add new audio back in before sending the video forward. Built for professional setups, this sleek 1U rack unit ensures your workflow stays smooth and efficient.
Sonifex RB-VHCMA4 3G/HD/SD-SDI Embedder/De-Embedder Review
This unit is designed for broadcast and production environments where precise audio and video integration is essential. It can extract up to four channels of audio from an SDI video feed and replace or add audio back into two separate video outputs. With automatic signal detection, rock-solid SDI re-clocking, and independent level controls for each channel, the RB-VHCMA4 offers unmatched flexibility. Control is easy through front panel buttons or remote operation via Ethernet and RS232 using Sonifex’s SCi software.
Sonifex RB-VHCMA4 3G/HD/SD-SDI Embedder/De-Embedder Features
- Fits neatly into a 1U rack mount design for easy setup
- Lets you pull audio from video and send it out as clean sound
- Adds new audio back into video signals with no hassle
- Clear status lights make it easy to see what’s happening at a glance
- Remote control available with simple software for flexible operation
Sonifex RB-VHCMA4 3G/HD/SD-SDI Embedder/De-Embedder Specs
- Supports SD, HD, and 3G-SDI standards with re-clocked dual SDI outputs
- Adjustable analogue input and output levels from -24dB to +24dB in 0.5dB steps
- Maximum analogue input level +27dBu and output up to +24dBu

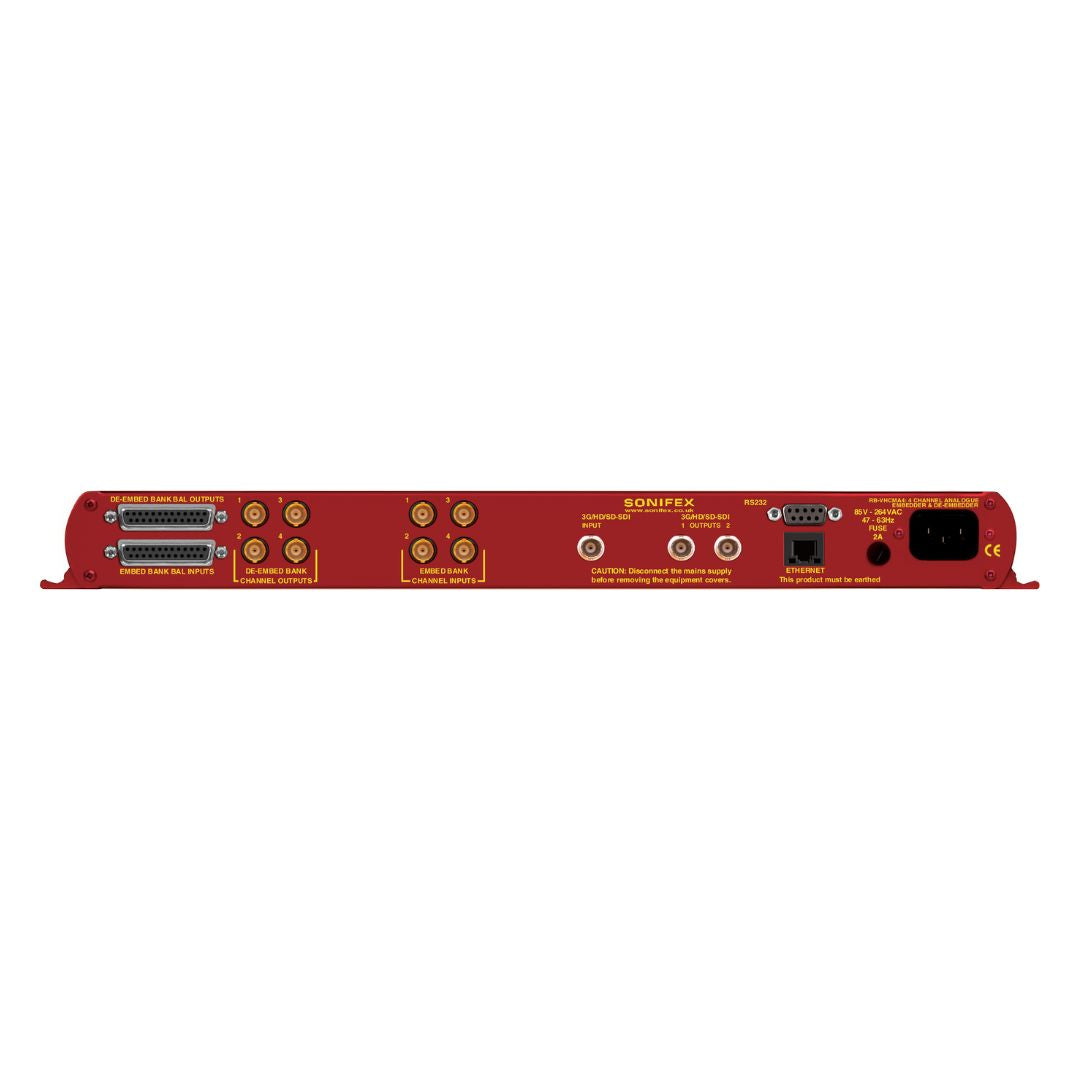

- Connections include 8 BNC ports and two 25-way D-type connectors
- Power supply universal IEC, 85–264VAC at 47–63Hz, maximum 16W
- Dimensions 19in wide x 6.2in deep x 1.7in high, weight 4lb
