Sonifex RB-TGHD Multi-Channel High Definition Tone Generator
The Sonifex RB-TGHD Multi-Channel High Definition Tone Generator makes audio line-up simple and accurate, whether you’re working in 5.1 or 7.1 surround sound. Built for professional broadcast and production, it delivers industry-standard test tones so you can be sure every channel is balanced and in the right place. With two versions available to fit your workflow, the RB-TGHD is a reliable tool that keeps your system sounding right every time.
Sonifex RB-TGHD Multi-Channel High Definition Tone Generator Review

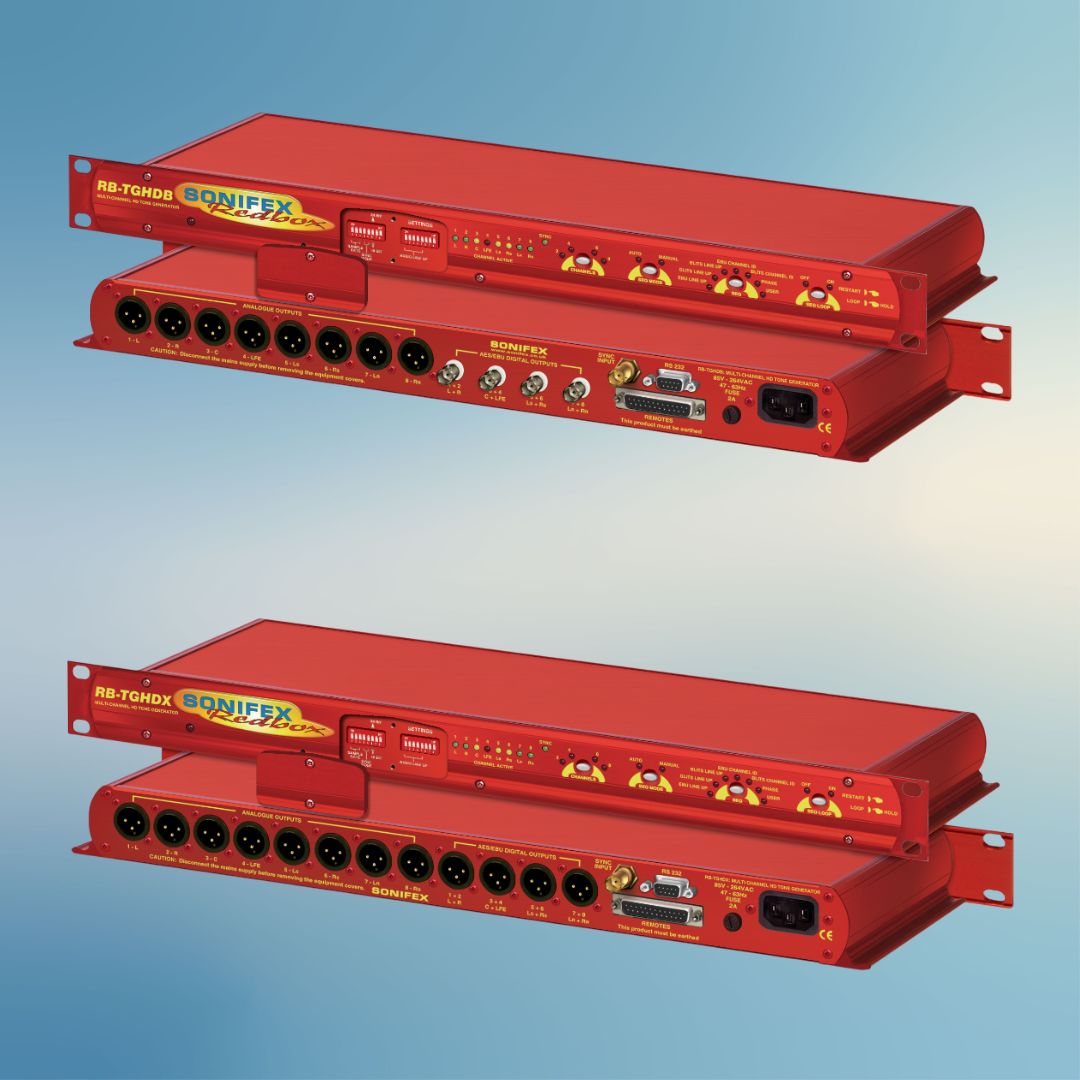

The RB-TGHD comes in two models: the RB-TGHDX with balanced AES/EBU digital outputs on XLR connectors, and the RB-TGHDB with unbalanced digital outputs on BNC connectors. Both include 8 balanced analogue outputs and support 2, 4, 6, or 8 channel setups. With well-known test tones such as EBU R49, GLITS, and BLITS, plus user-defined sequences through the SCi software, this unit delivers precision and flexibility. Adjustable levels up to +24dBu, selectable digital sample rates up to 192 kHz, and wordclock or optional video sync make it a versatile tool for any professional audio environment.
Sonifex RB-TGHD Multi-Channel High Definition Tone Generator Features
- Two variants available for different connection needs
- Supports 2, 4, 6, or 8 audio channels

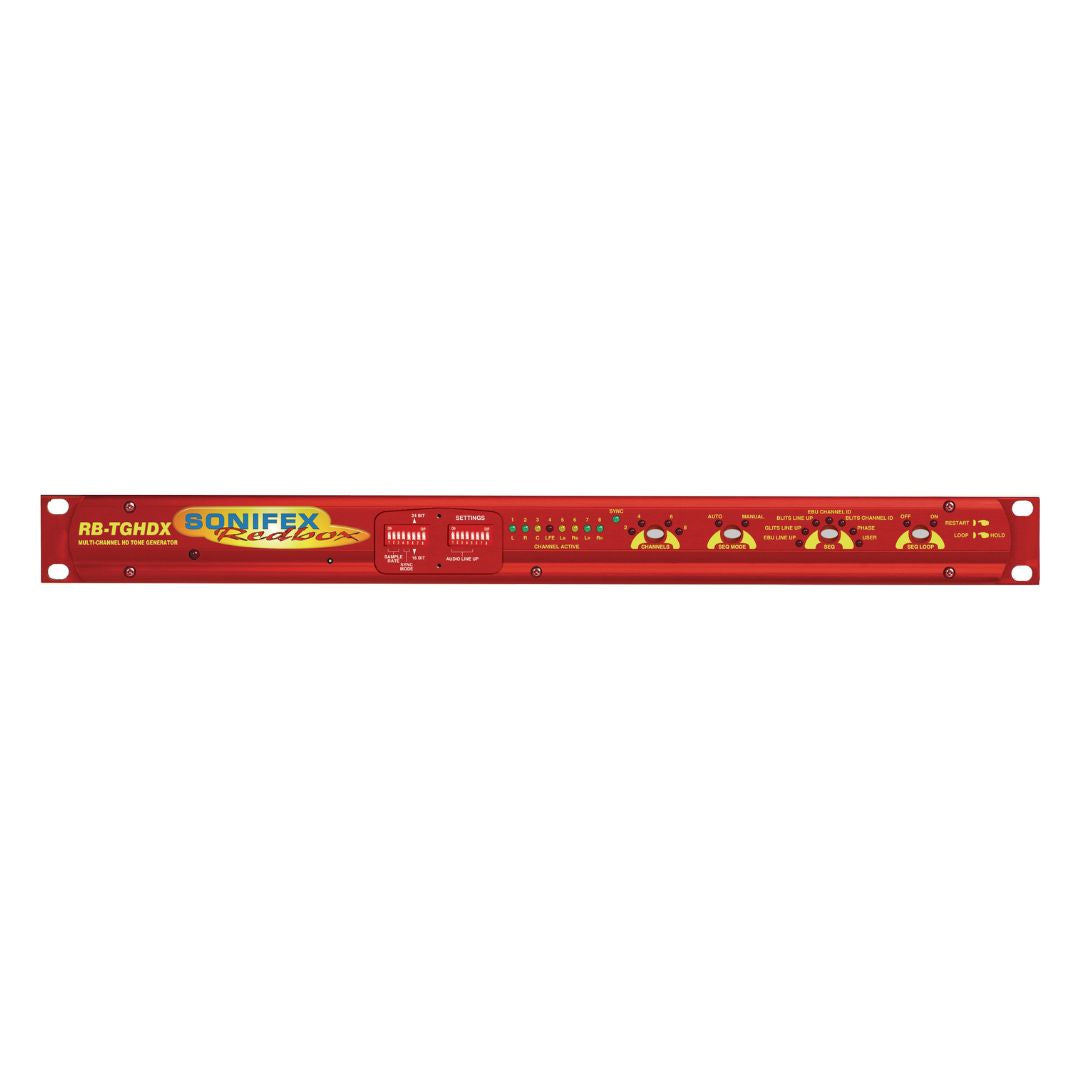

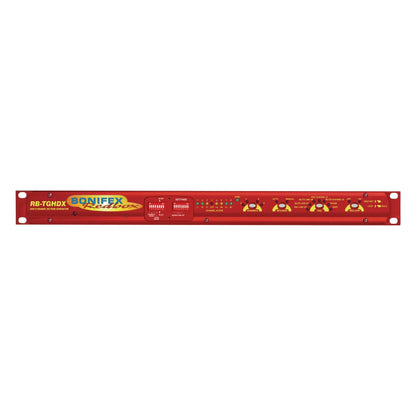

- Easy front panel operation with LEDs for each channel
- Includes trusted tone sequences for quick setup
- Loop mode for repeating tone patterns
- Can be controlled remotely or via PC software
Sonifex RB-TGHD Multi-Channel High Definition Tone Generator Specs
- Maximum output level +24 dBu with over 100 dB dynamic range
- Digital sample rates from 32 kHz to 192 kHz, 16 or 24-bit
- Analogue outputs 8 balanced XLR connectors

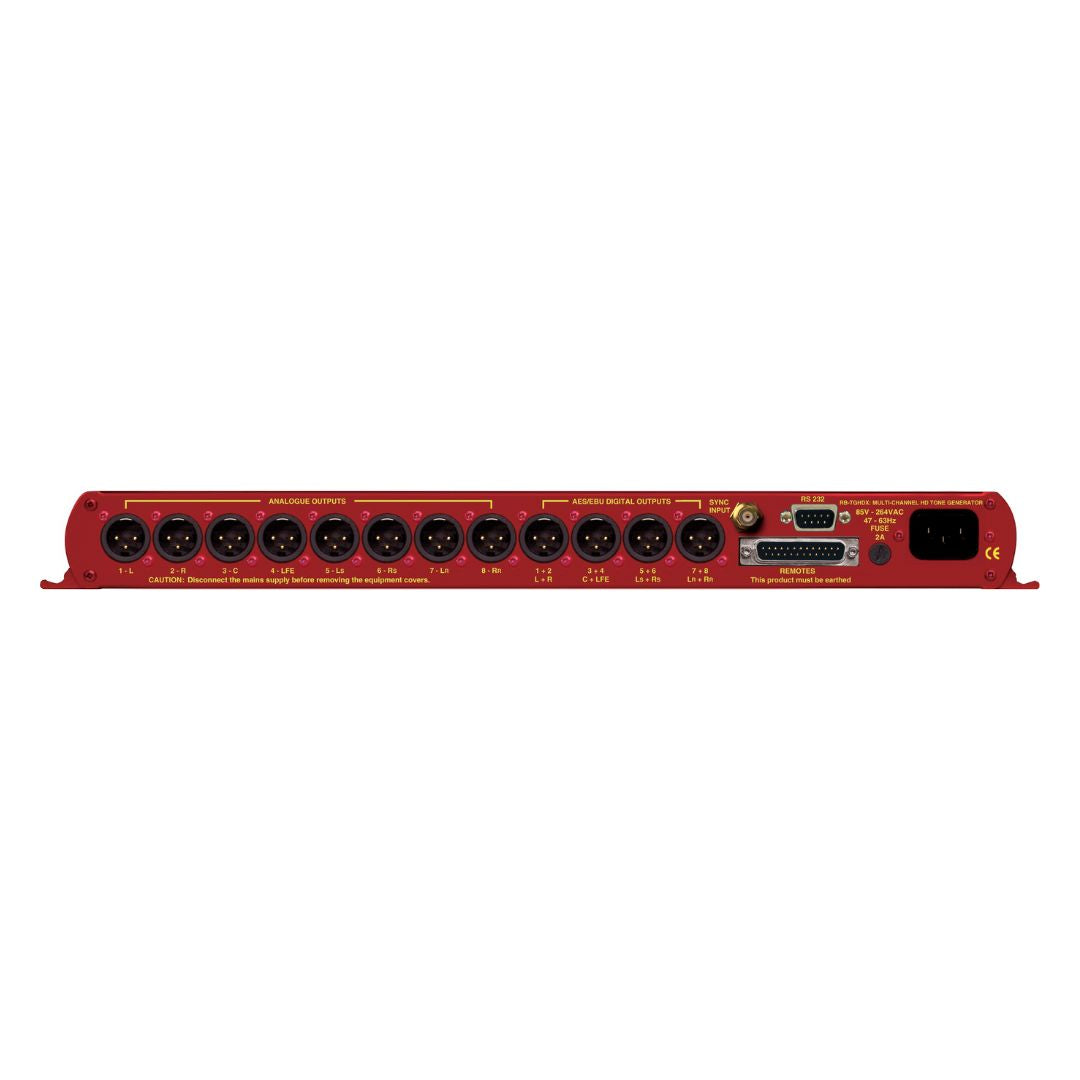

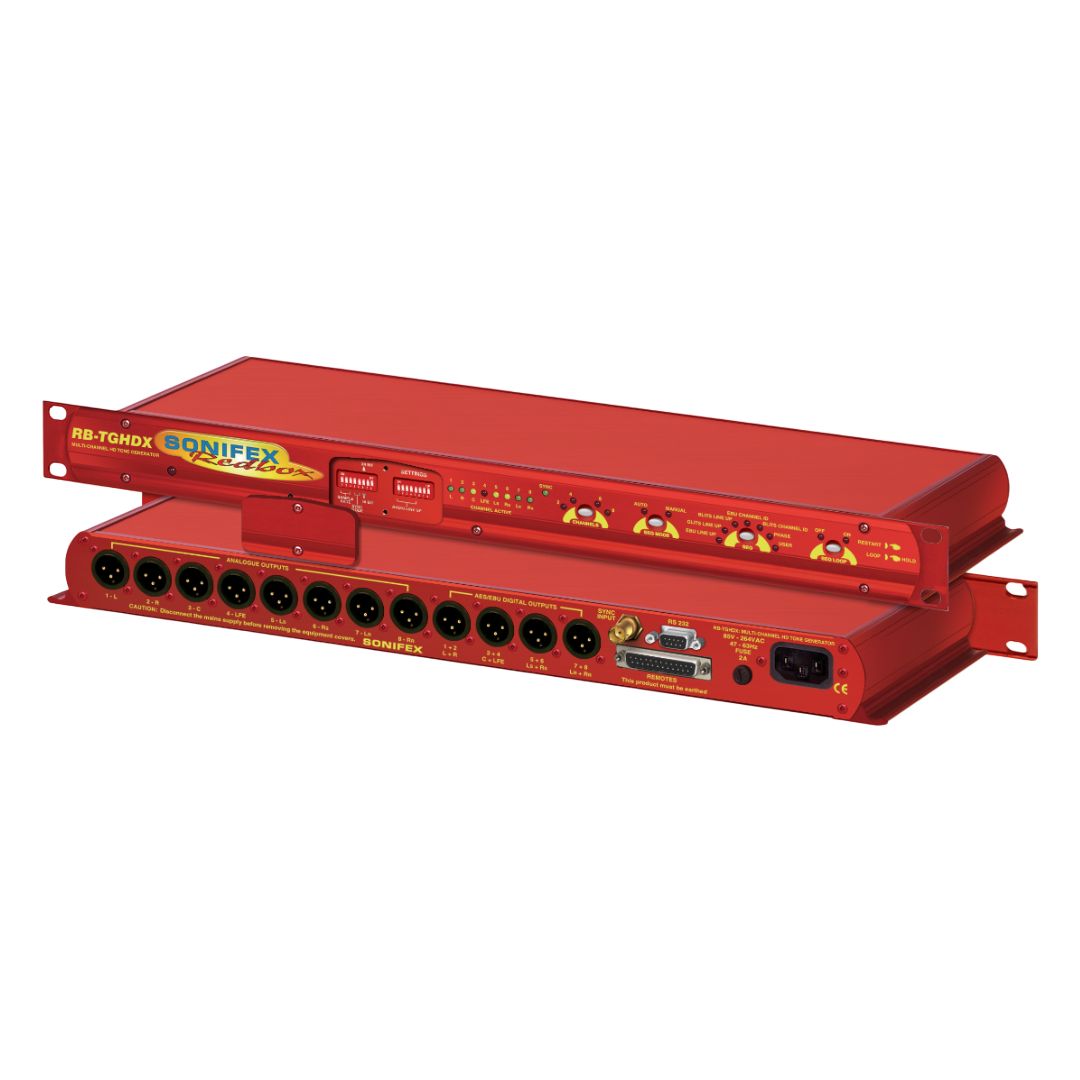

- RB-TGHDX model provides 4 AES/EBU balanced XLR digital outputs

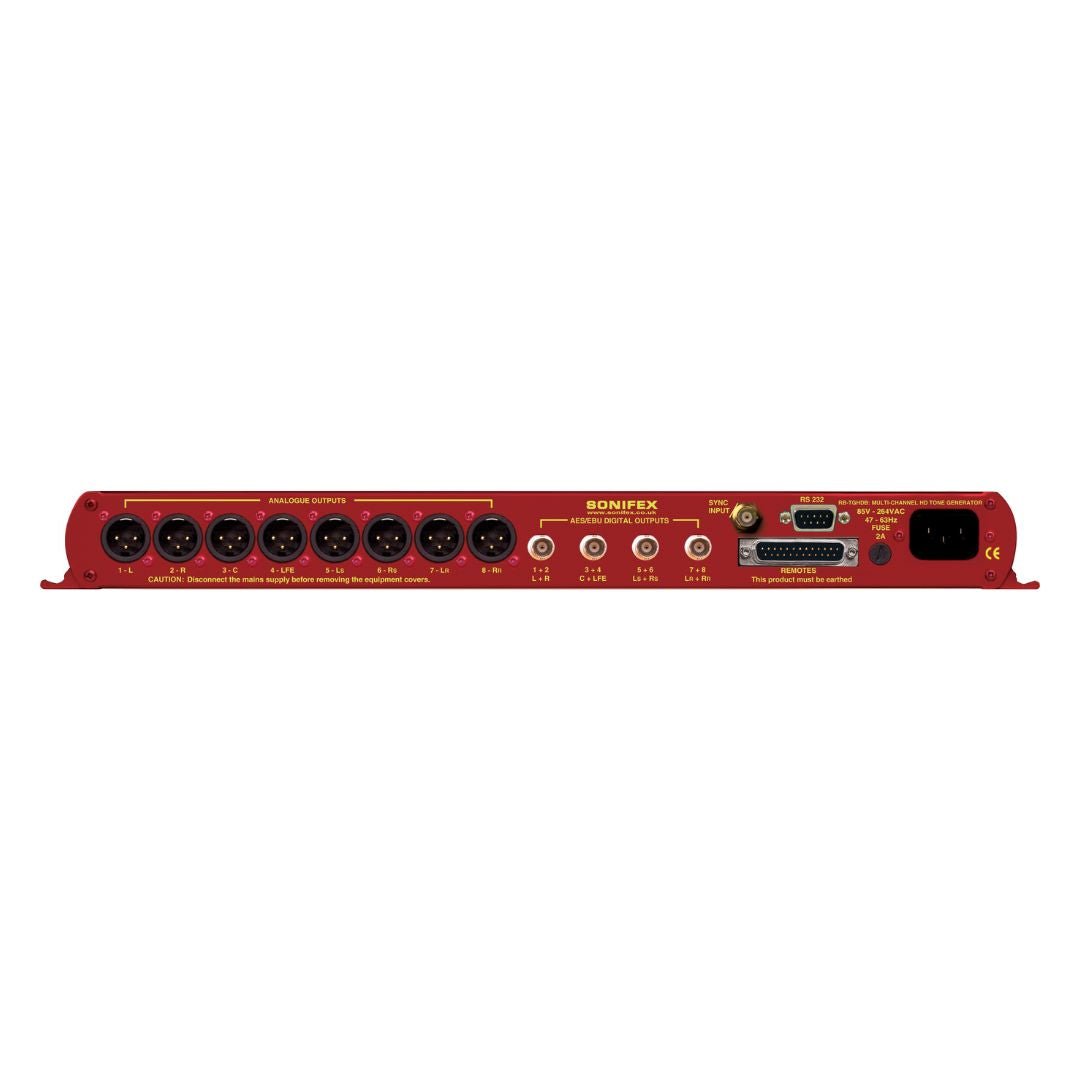

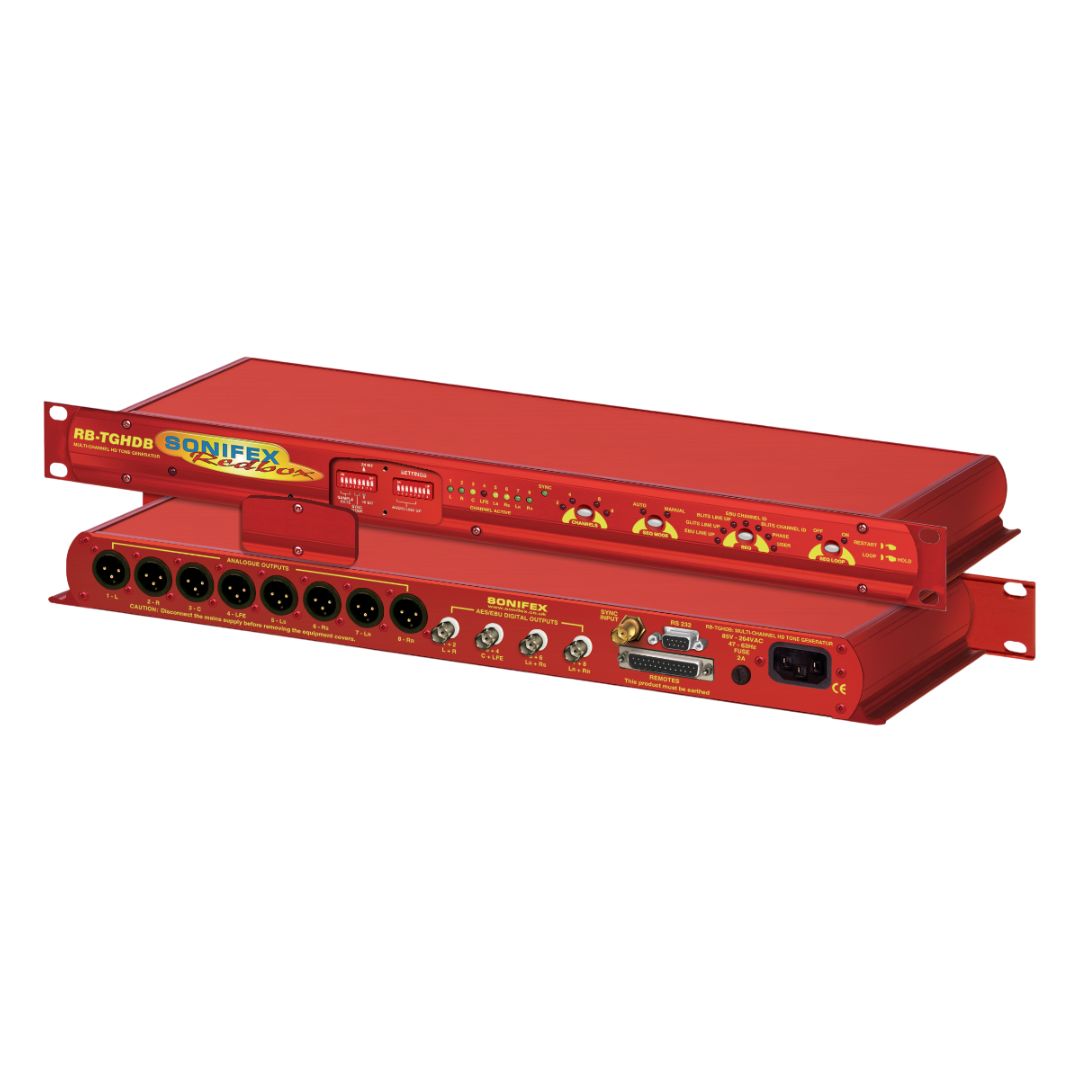

- RB-TGHDB model provides 4 unbalanced BNC digital outputs
- Wordclock input with optional video sync card
- Power input 85–264 VAC, 47–63 Hz, 60W peak, 30W average
- Size 19 in (W) x 6.2 in (D) x 1.7 in (H), weight 2.9 lbs
