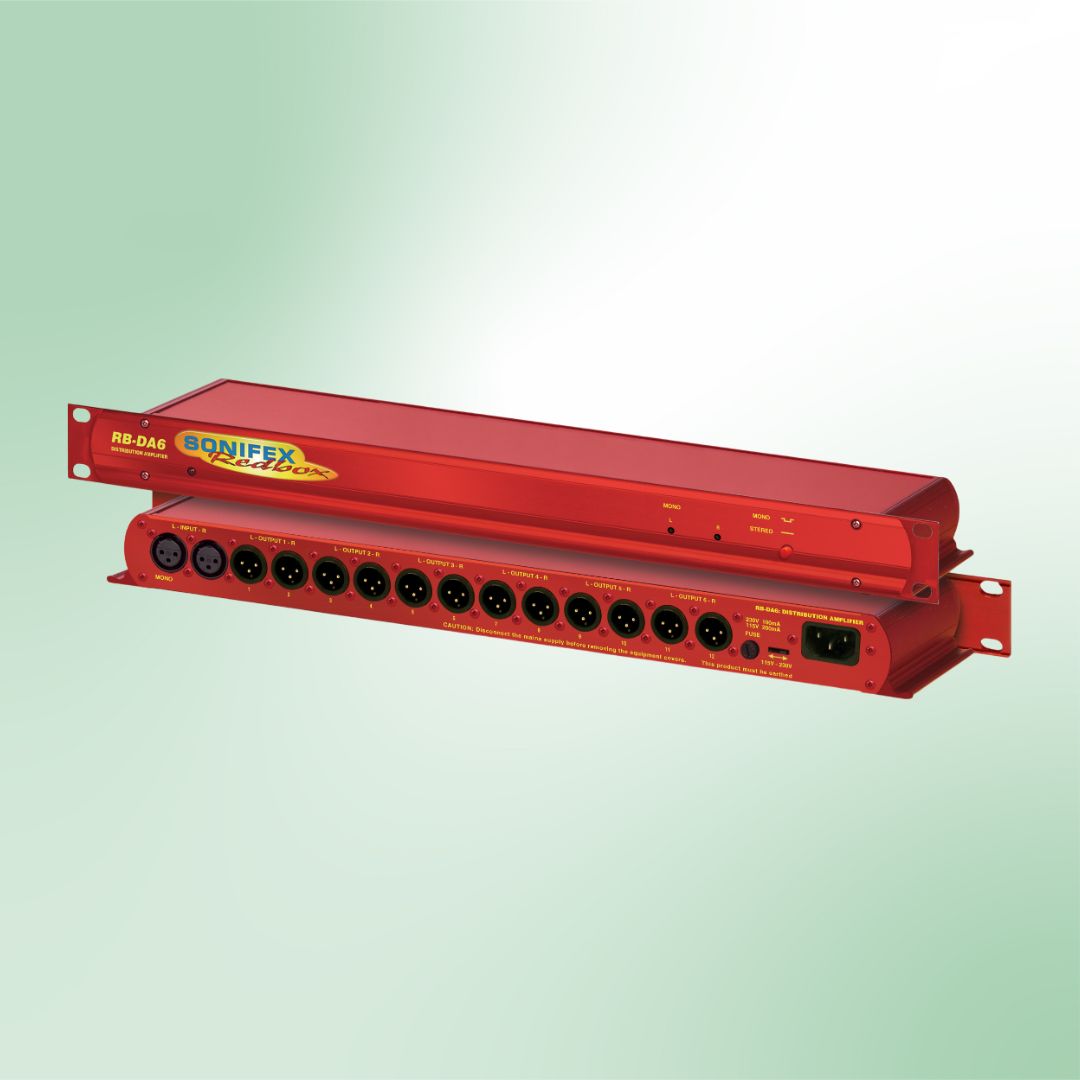

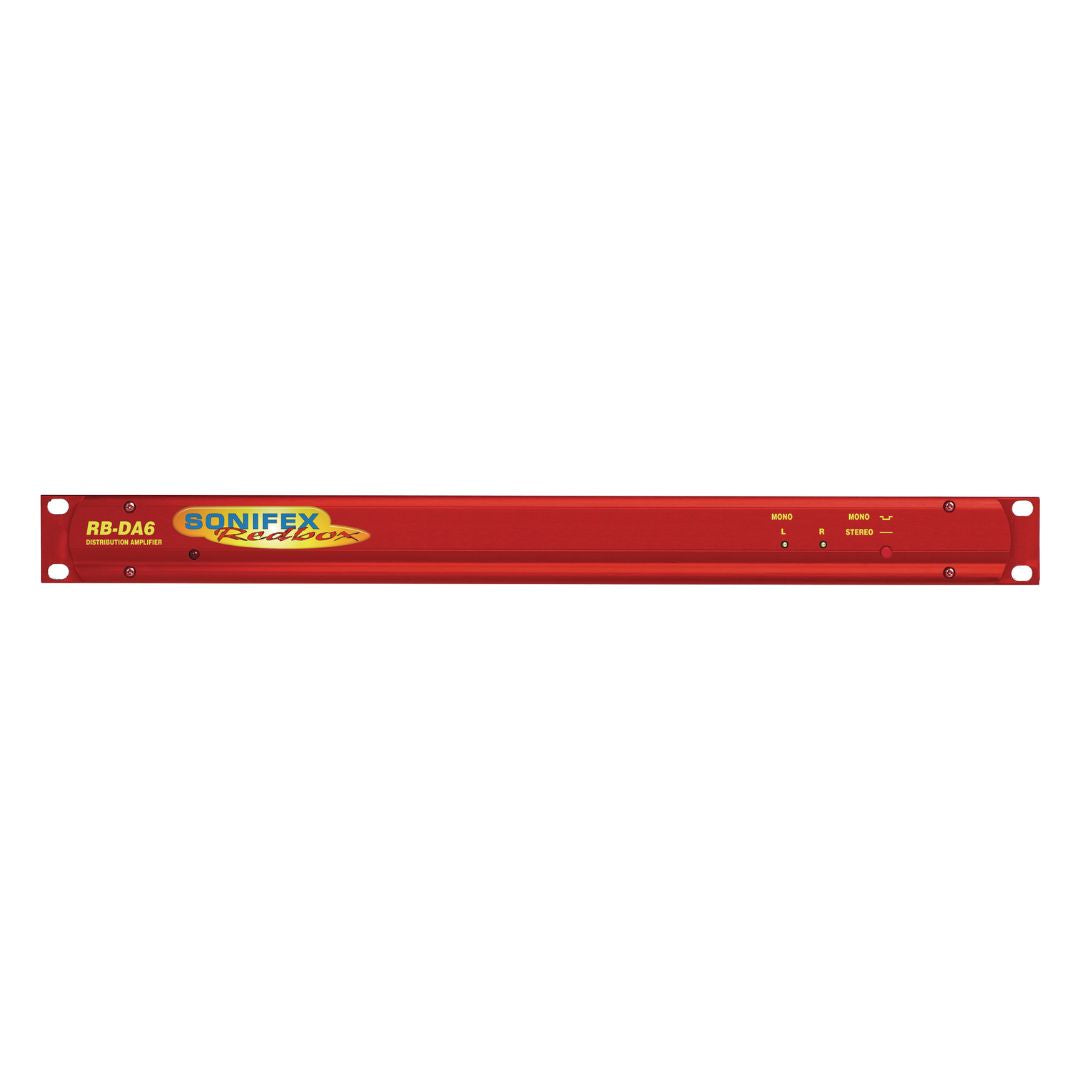

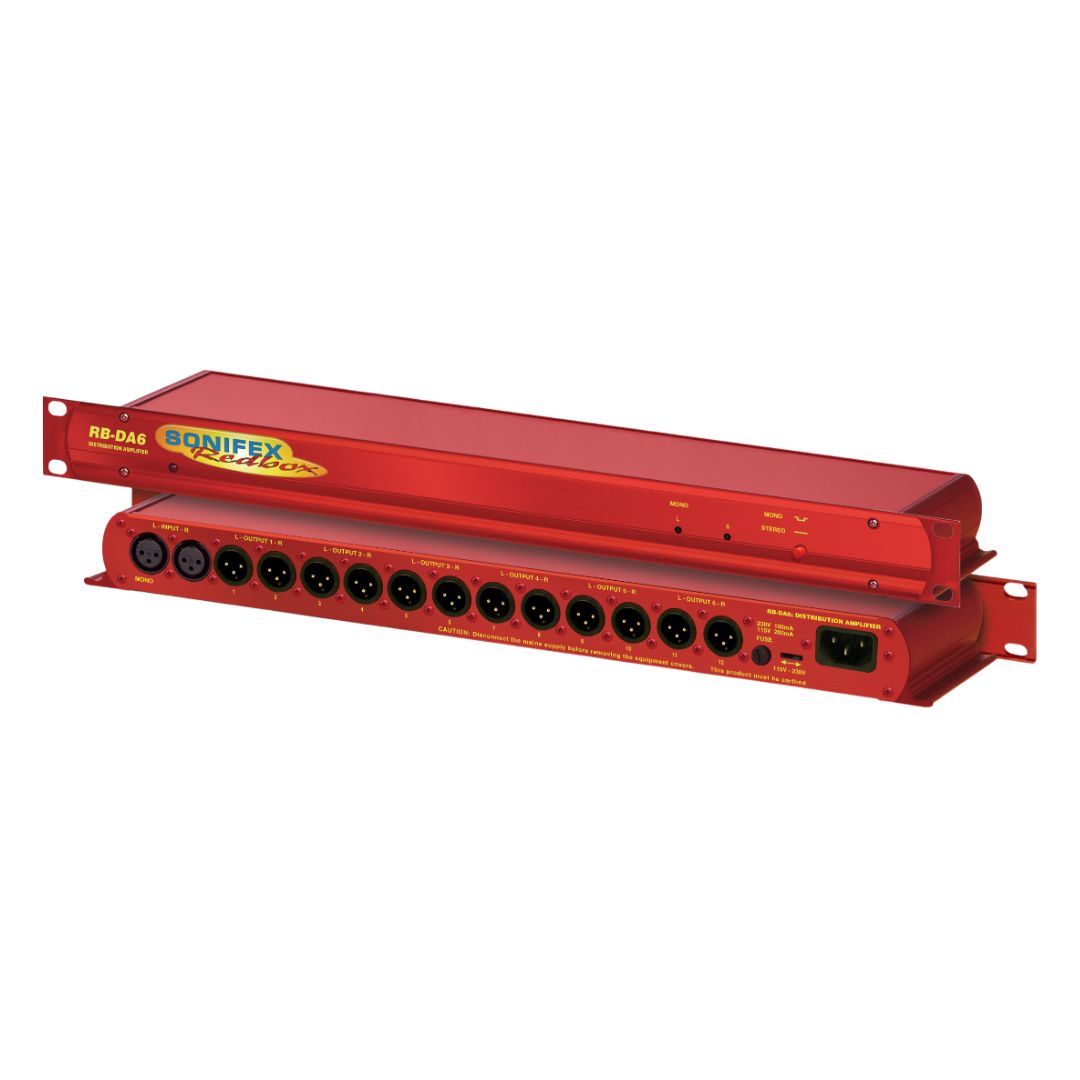

Sonifex RB-DA6 6 Way Stereo Distribution Amplifier
The Sonifex RB-DA6 6 Way Stereo Distribution Amplifier is the perfect solution for when you need one audio source to be heard in multiple places without losing sound quality. With the ability to split a stereo signal into six stereo outputs—or even turn a mono signal into twelve outputs—it’s a versatile tool for studios, live events, and broadcast setups. Built with reliability in mind, this unit ensures every output stays crystal clear, even if one connection runs into trouble.
Sonifex RB-DA6 6 Way Stereo Distribution Amplifier Review

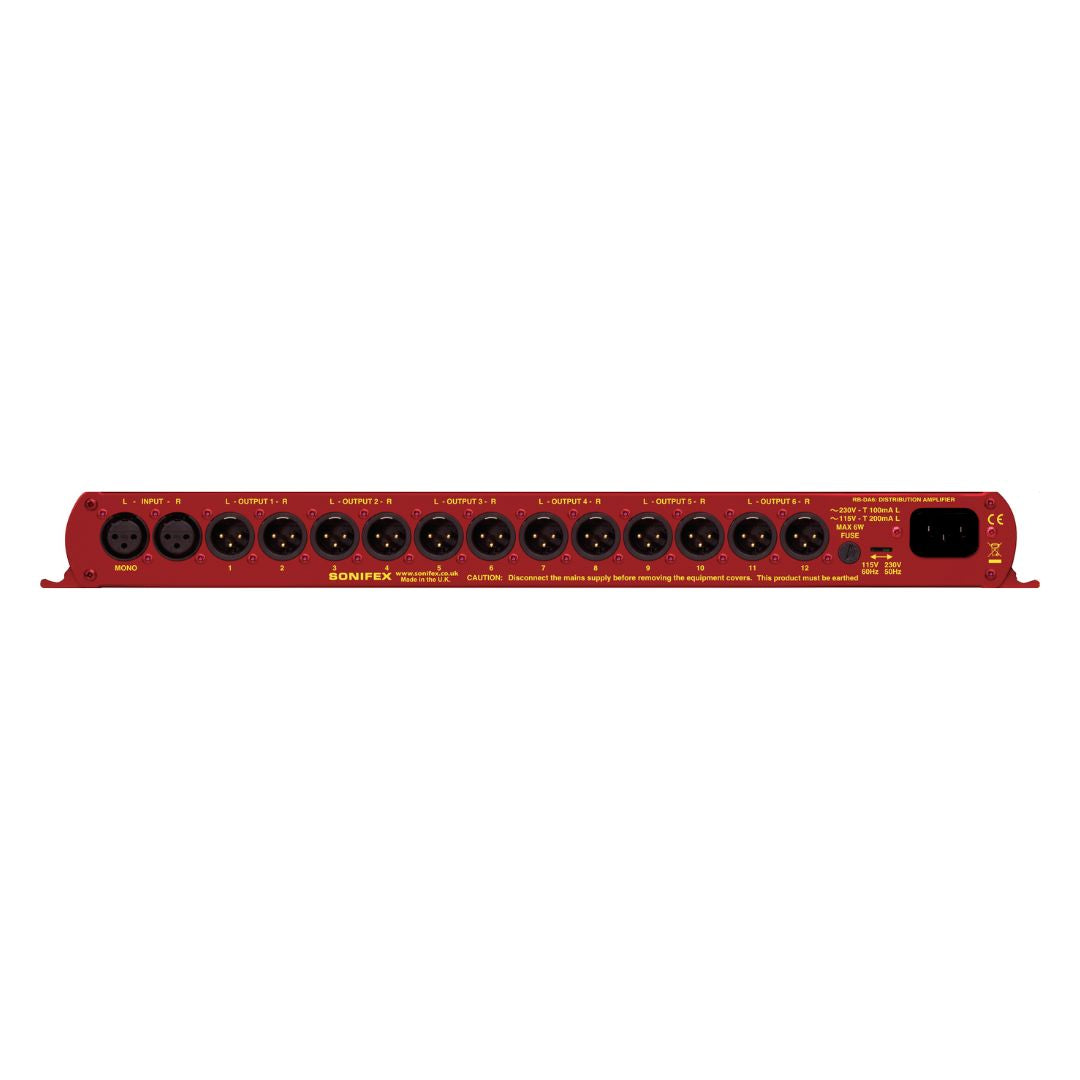

The Sonifex RB-DA6 6 Way Stereo Distribution Amplifier delivers top-tier performance in a compact 1U rackmount design. It offers electronically balanced XLR connections for both inputs and outputs, and each output is individually buffered to protect the signal path. With an adjustable gain range from -8dB to +18dB, it can easily adapt between consumer and professional audio levels. Its frequency response is impressively flat from 20Hz to 20kHz, ensuring your audio stays accurate and clean. This is a dependable, studio-grade piece of gear for anyone who values consistency and precision.
Sonifex RB-DA6 6 Way Stereo Distribution Amplifier Features
- Splits one stereo signal into six stereo outputs or one mono signal into twelve outputs
- Each output is protected so one bad cable won’t ruin the others
- Adjustable volume levels to match different audio setups
- Designed to keep sound true to the original source
- Compact and sturdy rackmount design for easy installation
- Built to handle professional use while staying easy to operate
Sonifex RB-DA6 6 Way Stereo Distribution Amplifier Specs
- Maximum input and output level +28dBu
- Frequency response 20Hz to 20kHz ±0.1dB
- Gain range adjustable from -8dB to +18dB
- Input impedance over 20kΩ bridging, output impedance under 50Ω
- Dimensions 19in W x 4.3in D x 1.7in H (rackmount 1U)
- Weight 2.9lbs
- Power 110-120V or 220-240V AC, 6W max
