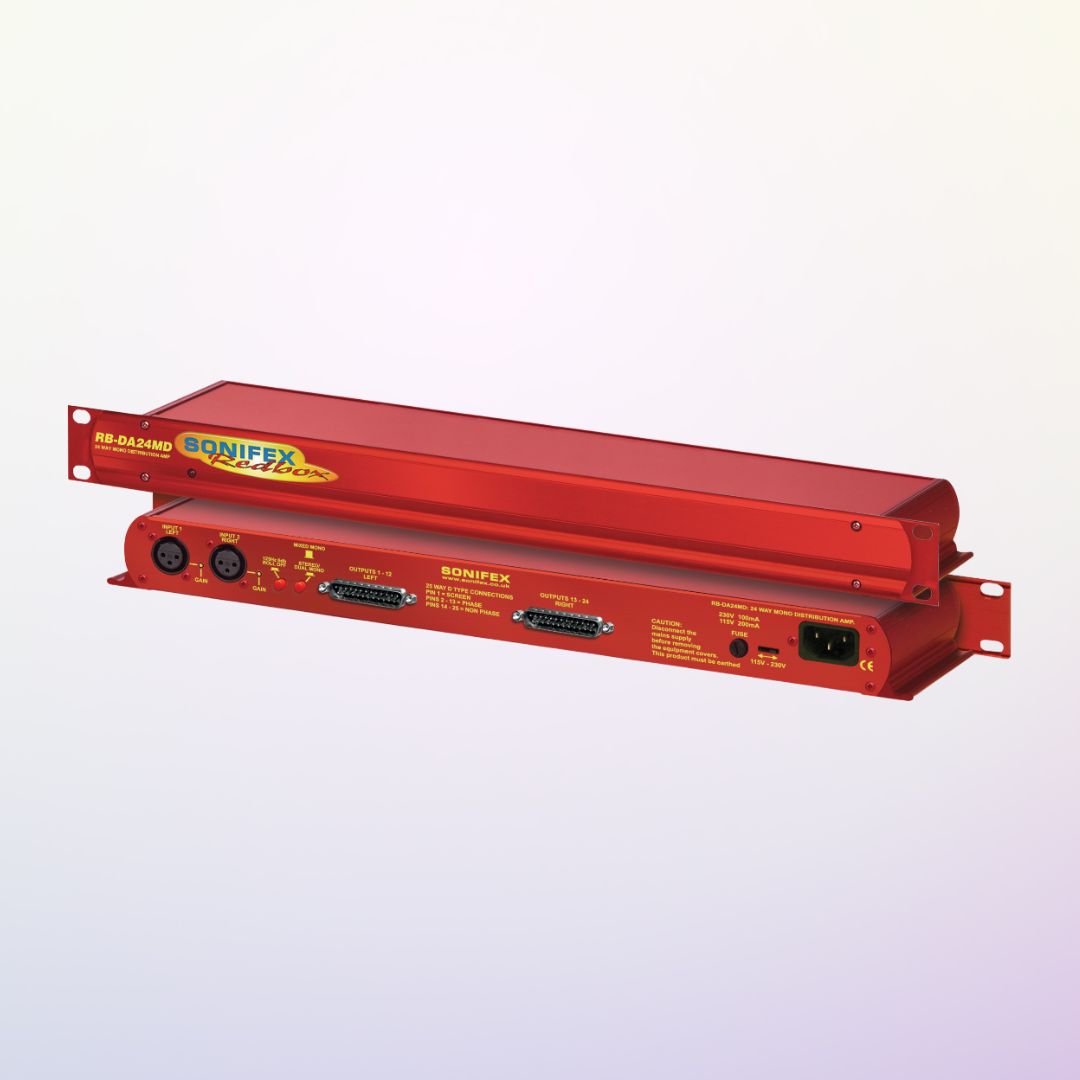

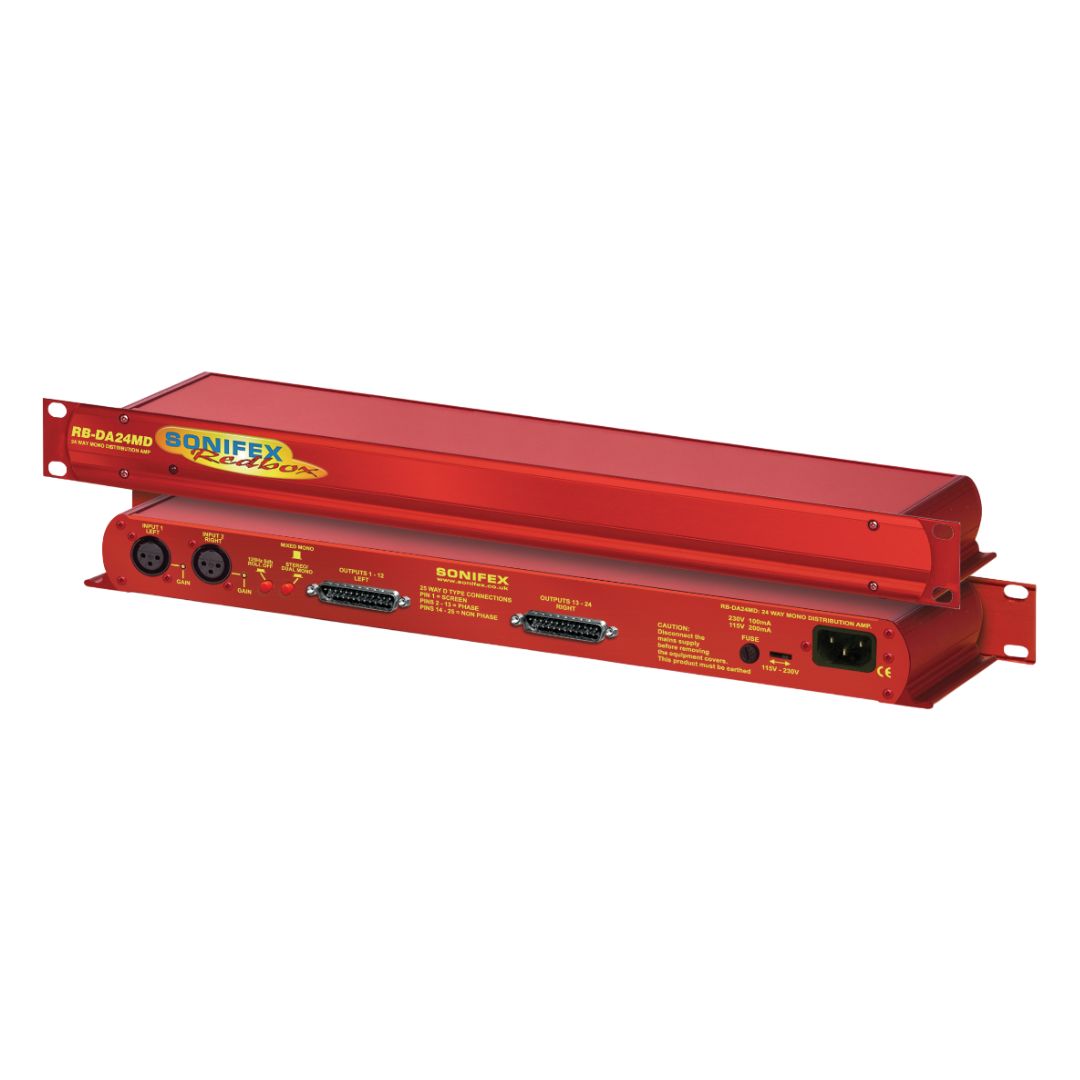

Sonifex RB-DA24MD 24-Way Mono Audio Distribution Amplifier
The Sonifex RB-DA24MD 24-Way Mono Audio Distribution Amplifier gives you a simple and reliable way to send high-quality audio to multiple places at once. Compact and easy to set up, it’s built to handle demanding studio, broadcast, or live sound needs while keeping your signal clean and consistent.
Sonifex RB-DA24MD 24-Way Mono Audio Distribution Amplifier Review
Behind its slim 1U rack design, the Sonifex RB-DA24MD packs powerful routing options. With two inputs that can either be split across 12 outputs each or blended together and sent to all 24 outputs, it adapts to any workflow. Each output is individually buffered for stability, so if one connection fails, the others stay unaffected. With adjustable gain and a built-in filter for smoothing out low-end rumble, this unit ensures every feed stays strong, clear, and ready for professional use.
Sonifex RB-DA24MD 24-Way Mono Audio Distribution Amplifier Features
- Routes audio to up to 24 different outputs with ease
- Two input channels can work separately or be blended into one mix
- Each output stays stable even if another output is shorted
- Built-in filter helps remove unwanted low-end noise
- Adjustable gain keeps levels balanced between different gear

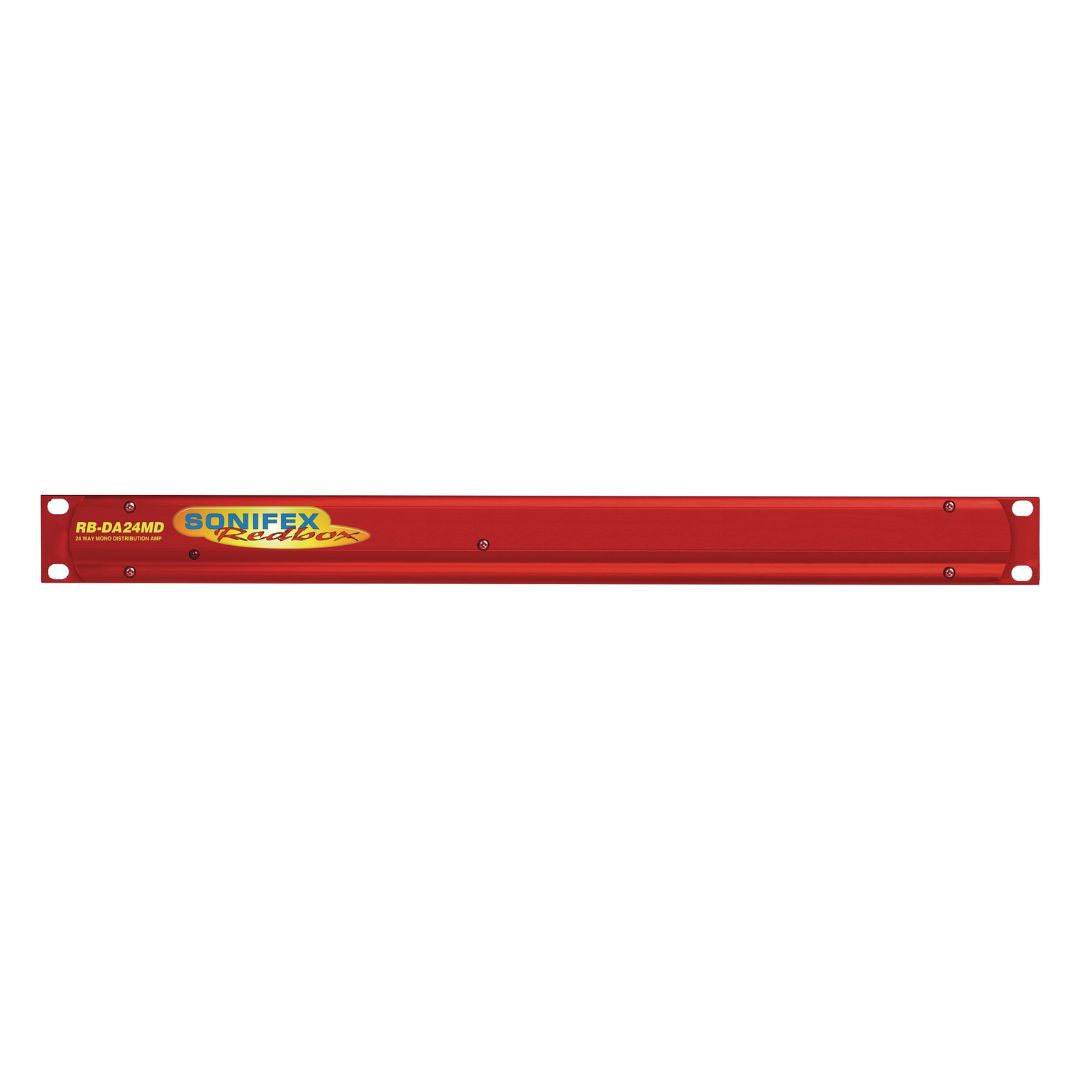

- Slim 1U rack size fits neatly into any setup
Sonifex RB-DA24MD 24-Way Mono Audio Distribution Amplifier Specs

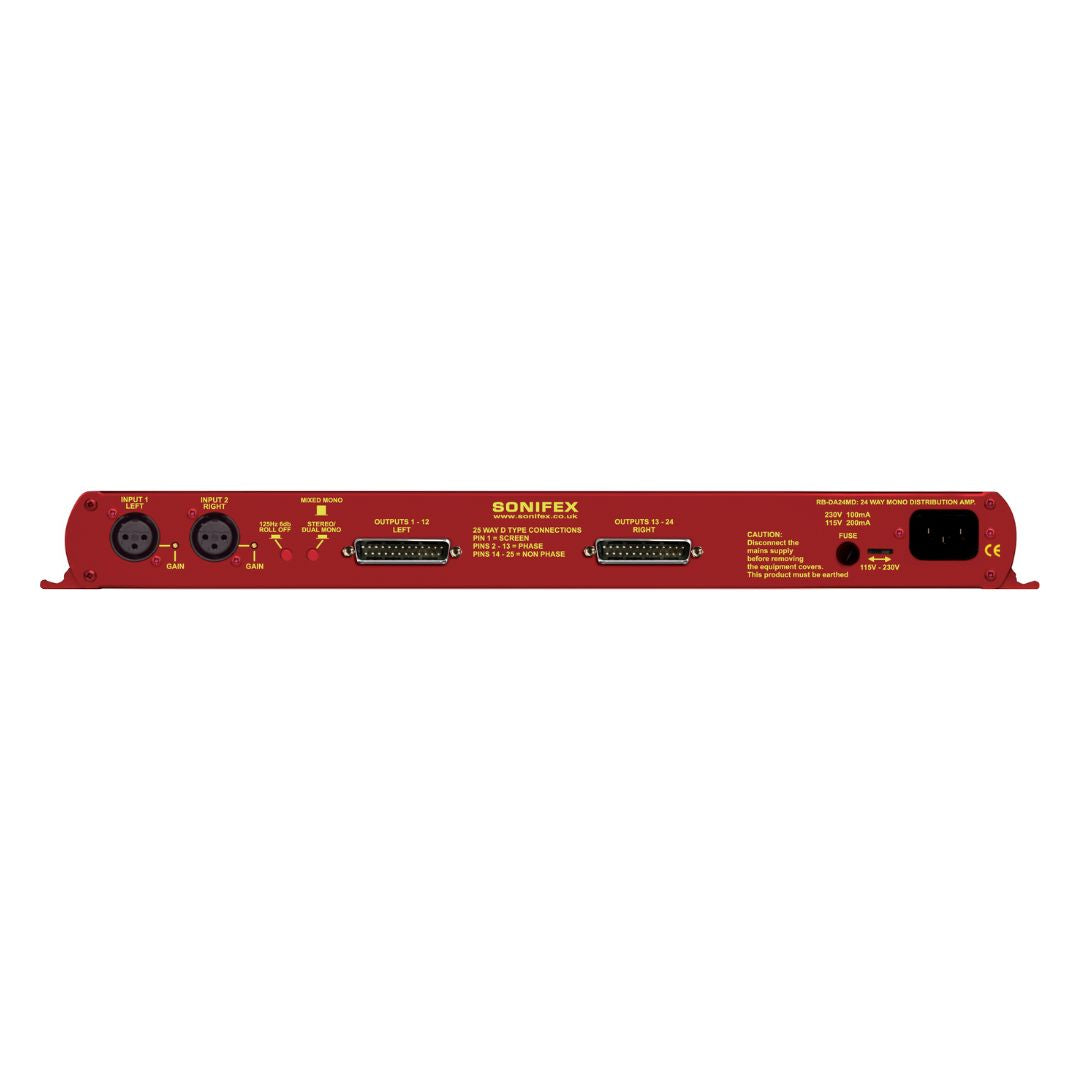

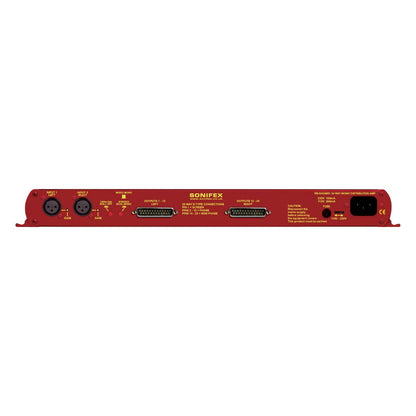

- Input connections are 2 XLR 3-pin female balanced
- Output connections are 2 D-type 25-pin plugs balanced or unbalanced
- Frequency response 20Hz to 20kHz ±0.1dB
- Gain range adjustable from -15dB to +15dB
- Maximum input and output level +28dBu
- Power supply 110–120V or 220–240V switchable, 12W max
- Dimensions 19 in W x 6.2 in D x 1.7 in H (rackmount 1U)
- Weight 3.5 lbs
