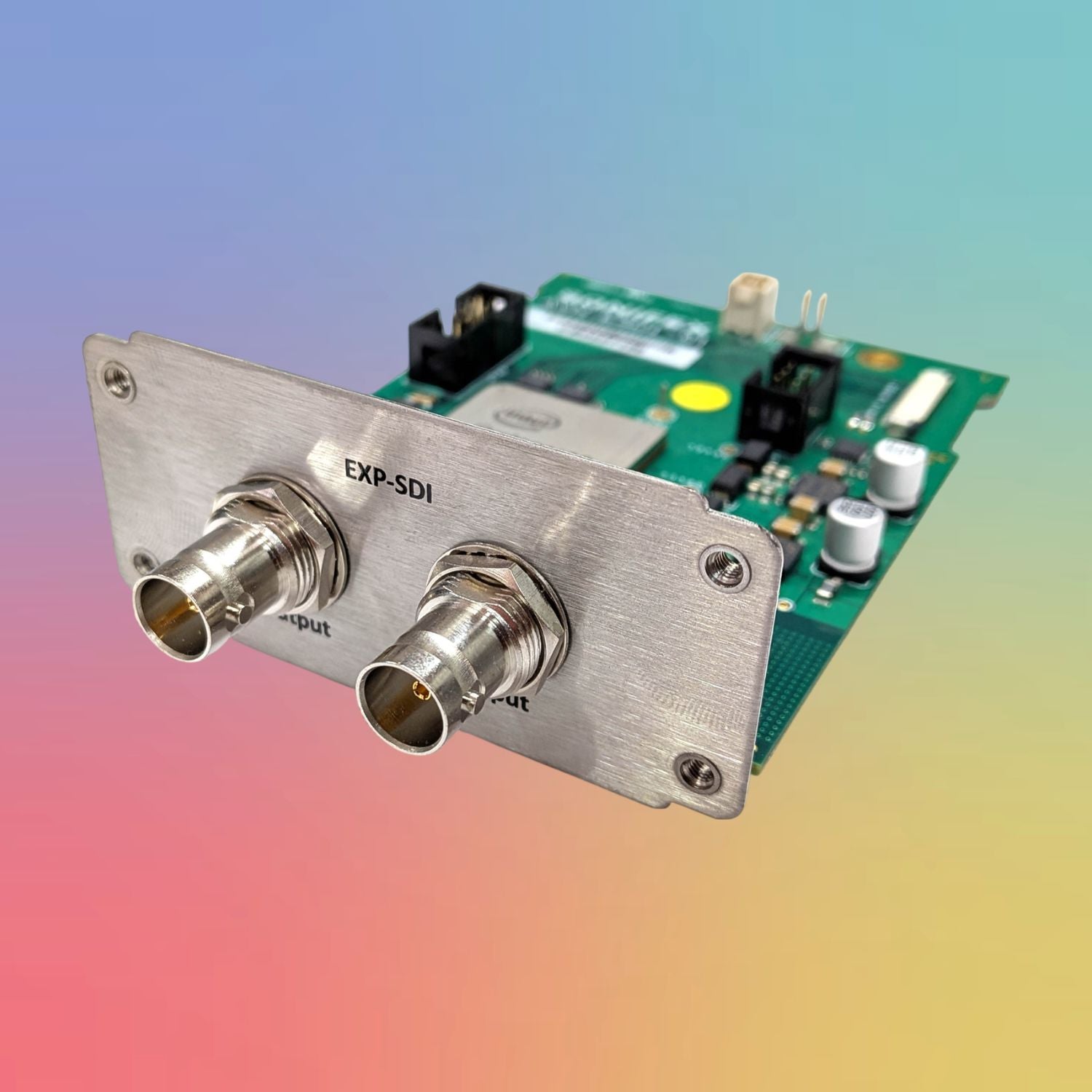

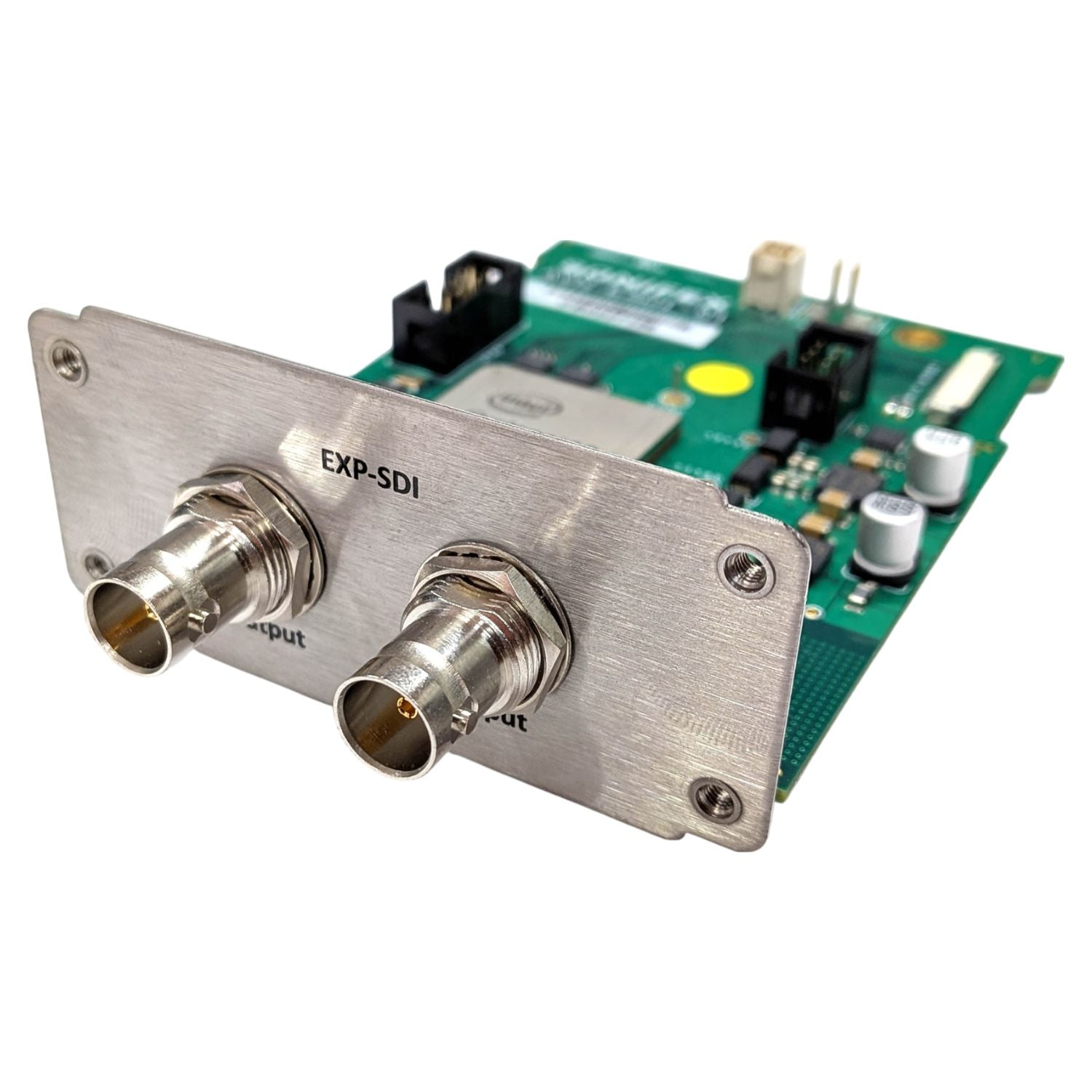

Sonifex EXP-SDI 12G/6G/3G/HD-SDI Expansion Card
The Sonifex EXP-SDI 12G/6G/3G/HD-SDI Expansion Card is an easy and effective way to add audio extraction capabilities to your monitoring and broadcast system. Designed for seamless integration, it lets you pull audio directly from video feeds while keeping your signal moving smoothly through the rest of your setup. Whether you're working in a broadcast facility, production truck, or monitoring environment, this expansion card helps simplify your workflow and keeps everything connected.
Sonifex EXP-SDI 12G/6G/3G/HD-SDI Expansion Card Review
Built for professional broadcast applications, the Sonifex EXP-SDI 12G/6G/3G/HD-SDI Expansion Card supports a wide range of SDI video formats, including resolutions up to 12G-SDI. It extracts embedded audio channels from incoming SDI signals and makes them available through the system's internal routing grid for flexible assignment and monitoring. The card also features a re-clocked and re-driven SDI output that maintains signal quality when feeding additional equipment. Installation is straightforward, whether fitted at the factory or added later in the field.
Sonifex EXP-SDI 12G/6G/3G/HD-SDI Expansion Card Features
- Extracts audio directly from incoming video signals
- Keeps video signals flowing smoothly to other connected equipment
- Works with a wide range of broadcast video formats
- Integrates easily into compatible Sonifex systems
- Flexible audio routing through the built-in control interface
- Can be installed during manufacturing or added later on site
Sonifex EXP-SDI 12G/6G/3G/HD-SDI Expansion Card Specs
- 1 x 12G/6G/3G/HD/SD-SDI input on BNC connector
- 1 x re-driven 12G/6G/3G/HD/SD-SDI output on BNC connector
- Supports SDI data rates from 270 Mbps up to 11.88 Gbps
- Compatible with SD, HD, 3G, 6G, and 12G video standards
- Supports embedded 48 kHz synchronous audio extraction
- Output impedance 75Ω unbalanced
- Output level 800 mV ±10%
- Alignment jitter less than 0.2 UI
- Includes 4-pin power cable and 30-pin FFC audio/control cable
- De-embedder only with no audio embedding functionality
