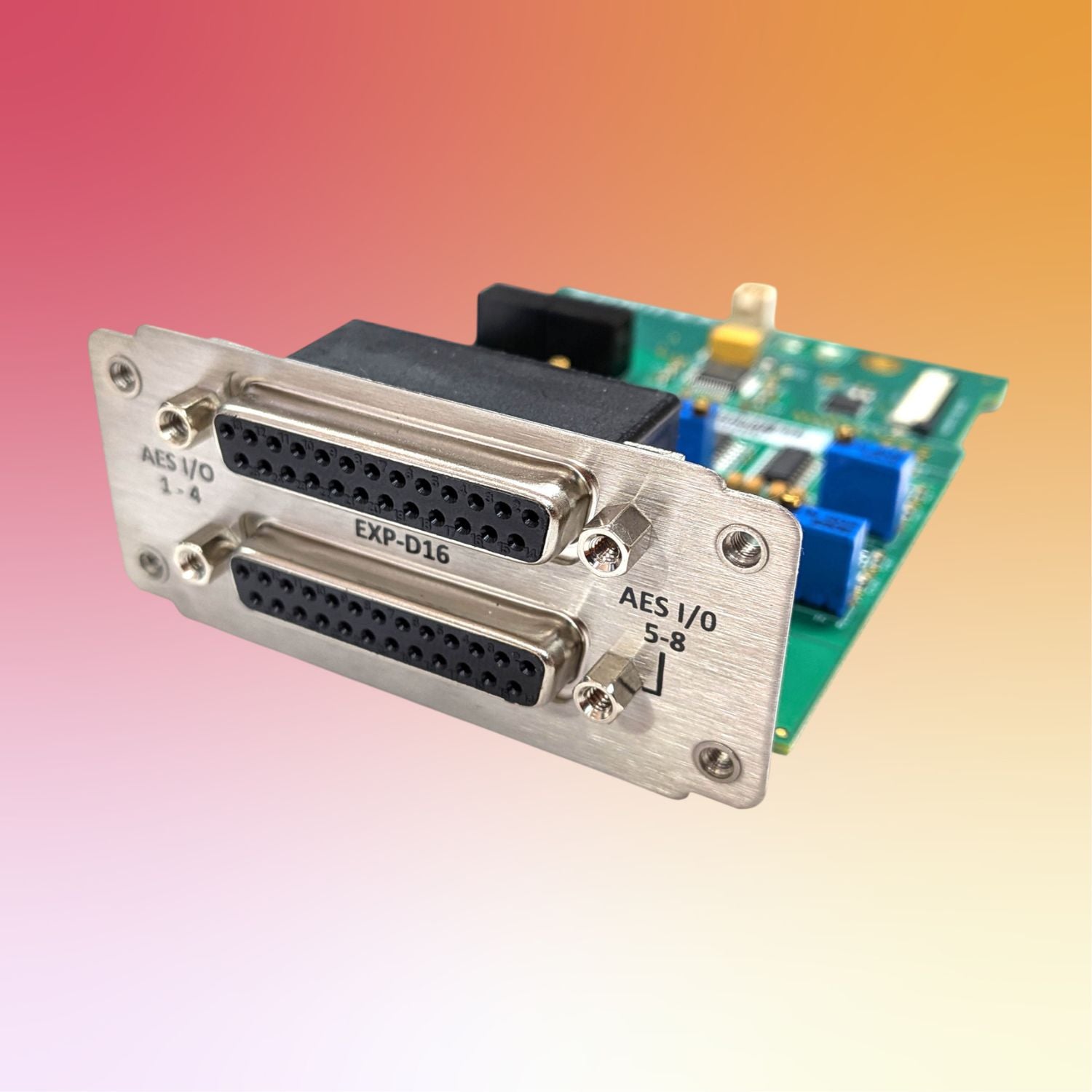

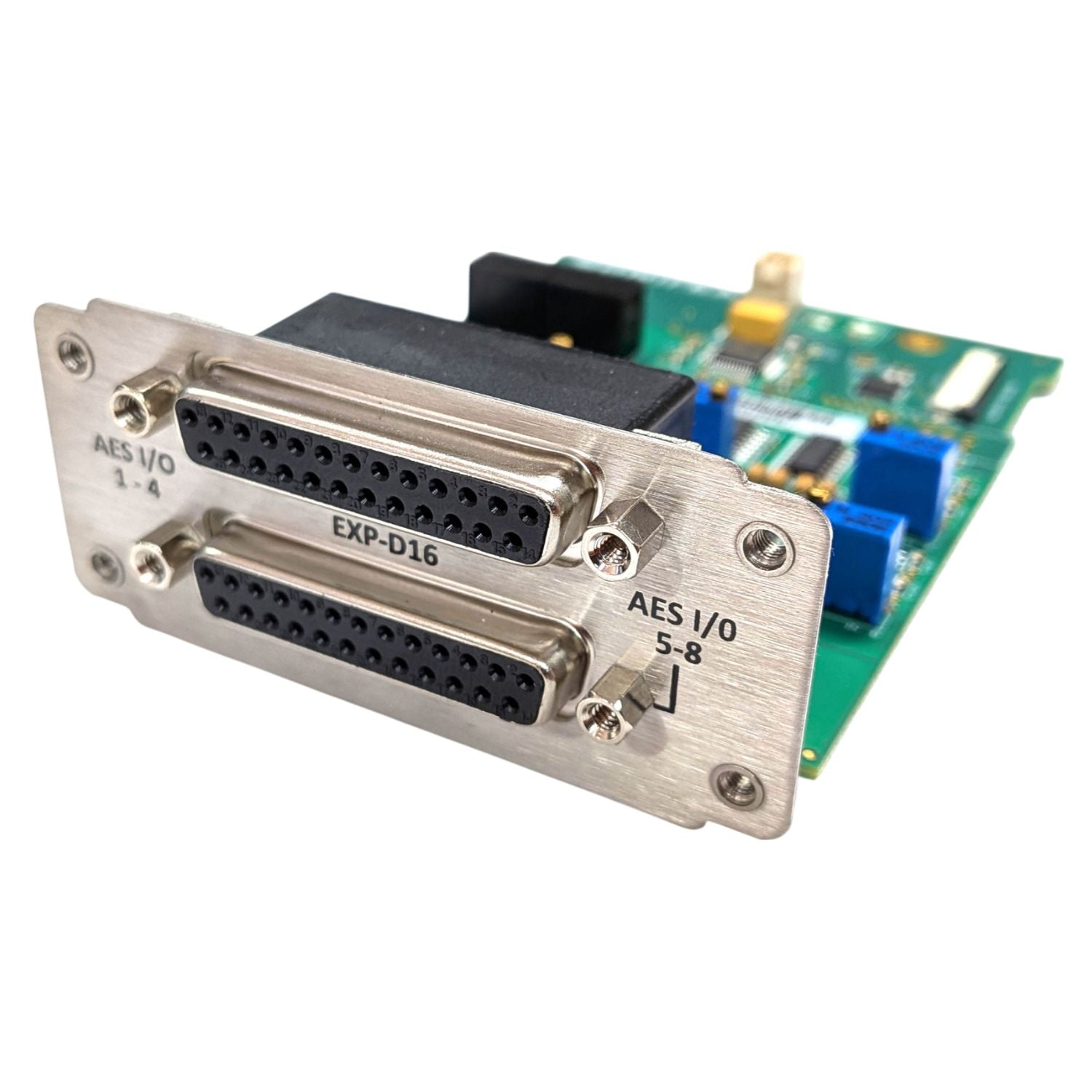

Sonifex EXP-D16 8 AES3 Stereo Digital I/O Expansion Card
The Sonifex EXP-D16 8 AES3 Stereo Digital I/O Expansion Card is an easy way to add more digital audio connections to your existing system. Designed for professional broadcast and audio environments, it expands your setup with multiple input and output channels while keeping everything organized and easy to manage. Whether you're working in a control room or a mobile production vehicle, this expansion card helps you handle more audio sources without adding unnecessary complexity.
Sonifex EXP-D16 8 AES3 Stereo Digital I/O Expansion Card Review
Built for demanding broadcast applications, the Sonifex EXP-D16 provides eight stereo AES3 digital inputs and eight stereo AES3 digital outputs, delivering a total of 16 input and 16 output channels. Once installed, every channel becomes available through the system's internal routing grid and web-based interface, making signal management fast and flexible. The card can be factory installed or added later in the field, offering a practical upgrade path for facilities that need increased digital audio capacity.
Sonifex EXP-D16 8 AES3 Stereo Digital I/O Expansion Card Features
- Expands your system with 16 channels of digital audio input and 16 channels of digital audio output
- Makes audio routing simple through the built-in web control interface
- Helps keep complex audio systems organized and easy to manage
- Designed for professional broadcast, production, and monitoring environments
- Can be installed during manufacturing or added later as your needs grow
- Includes the required cables for a reliable and straightforward installation
Sonifex EXP-D16 8 AES3 Stereo Digital I/O Expansion Card Specs
- 8 stereo AES3 digital audio inputs
- 8 stereo AES3 digital audio outputs
- 16 input channels and 16 output channels total
- 25-pin D-type connector using AES59 digital pinout
- 110-ohm balanced digital input impedance
- Supports PCM audio encoding up to 24-bit resolution
- Includes 4-pin power cable
- Includes 30-pin FFC audio and control cable
- Compatible with internal routing and control through the integrated web server
