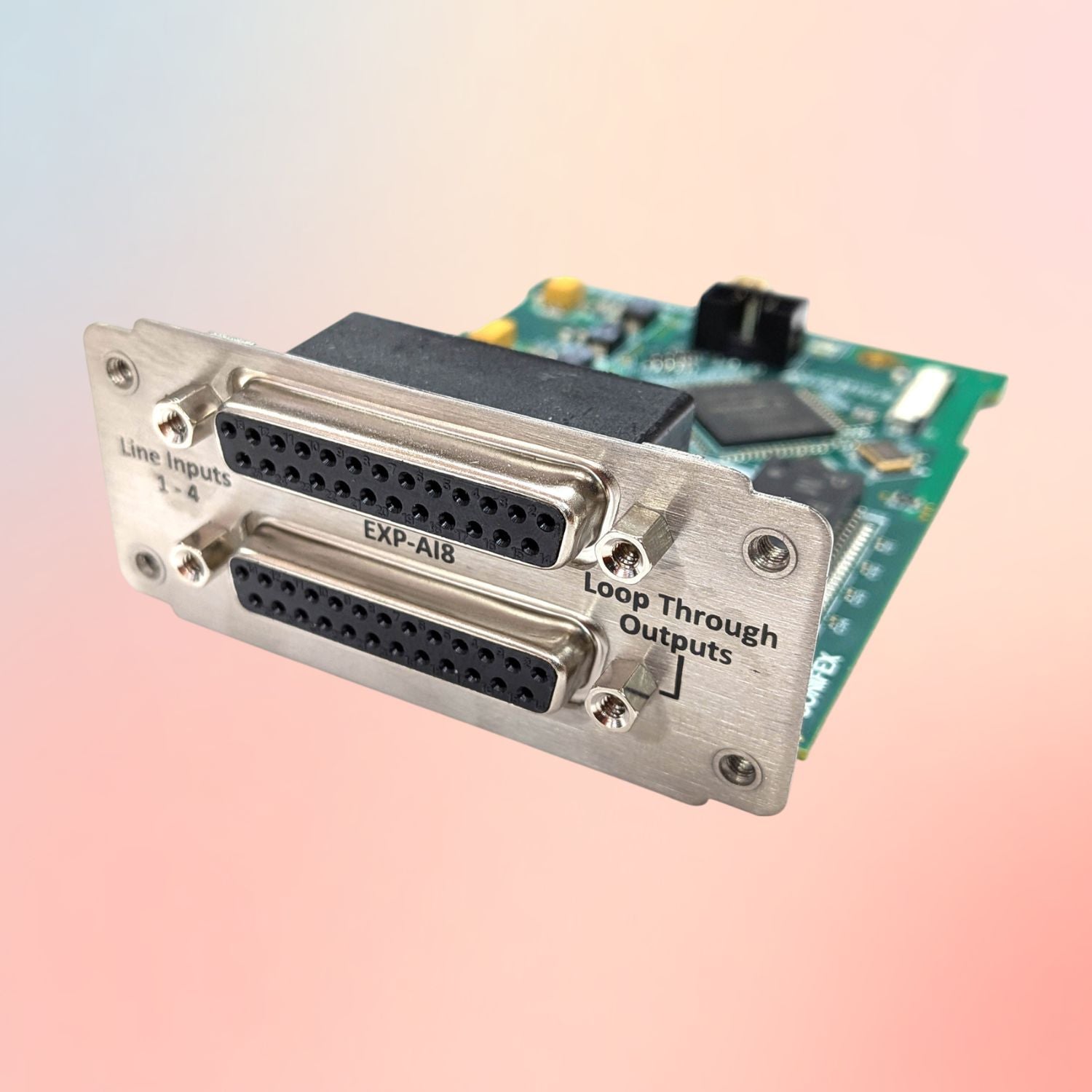

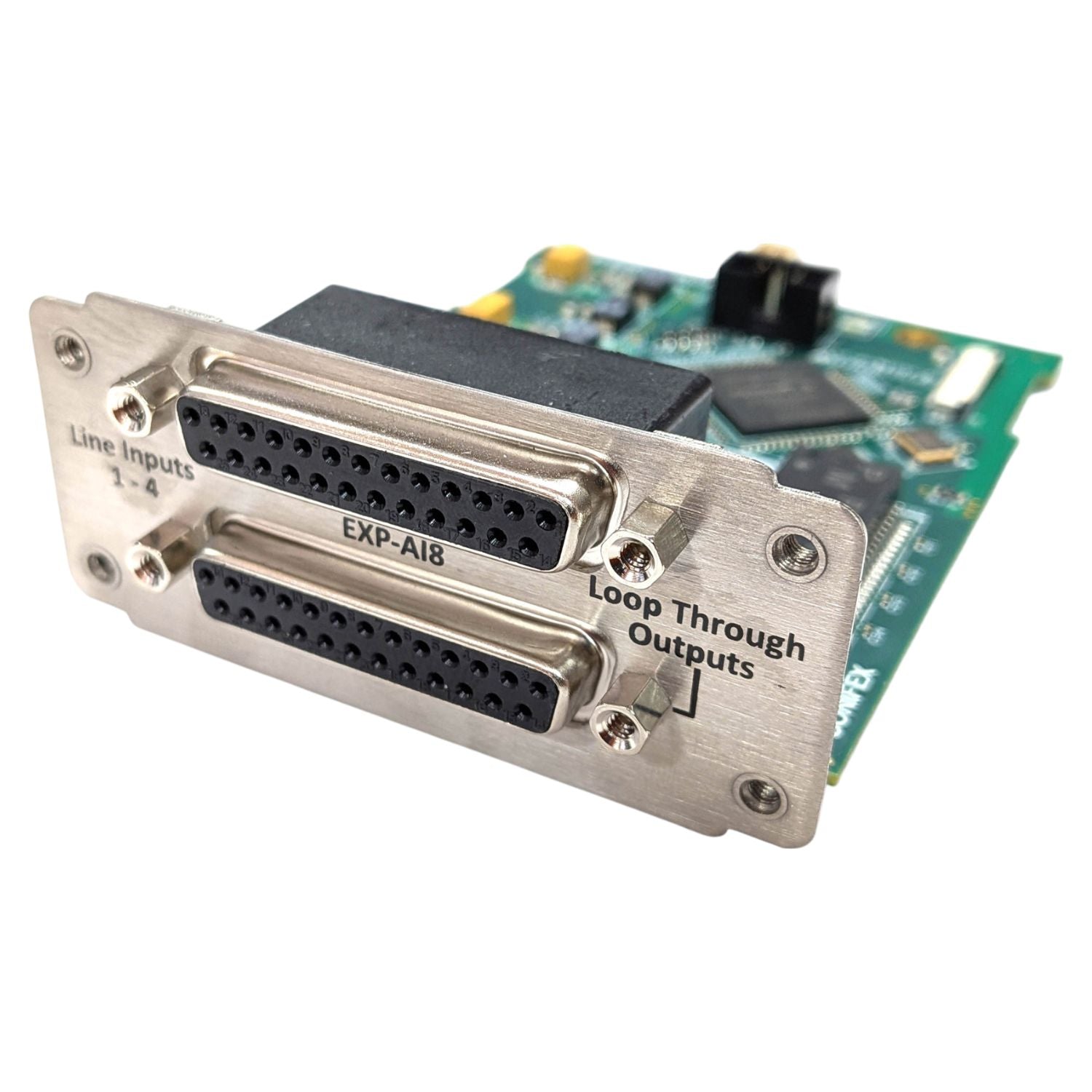

Sonifex EXP-AI8 8 Analogue Input Expansion Card
The Sonifex EXP-AI8 8 Analogue Input Expansion Card is an easy way to add more audio sources to your existing monitoring system. Designed for professional broadcast and production environments, it gives you eight additional analogue inputs while keeping everything organized and easy to manage. Whether you're working in a control room or a mobile production setup, this expansion card helps bring more audio into your workflow without adding extra complexity.
Sonifex EXP-AI8 8 Analogue Input Expansion Card Review
Built for reliable performance, the Sonifex EXP-AI8 8 Analogue Input Expansion Card provides eight balanced analogue input channels through industry-standard 25-pin D-type connections. A convenient loop-through output allows signals to be shared with other equipment without requiring separate distribution hardware. Once installed, all inputs become available through the system's internal routing grid and web interface, making source management simple and flexible. Its high-quality audio performance, low noise, and broad frequency response make it a valuable upgrade for demanding broadcast and monitoring applications.
Sonifex EXP-AI8 8 Analogue Input Expansion Card Features
- Adds eight extra audio inputs to expand your system
- Makes it easy to connect multiple external audio sources
- Includes signal pass-through connections for added flexibility
- Works seamlessly with the built-in routing and control interface
- Suitable for broadcast trucks, control rooms, and production facilities
- Can be installed at the factory or added later as an upgrade
Sonifex EXP-AI8 8 Analogue Input Expansion Card Specs
- 8 balanced analogue audio input channels
- Dual 25-pin D-type connectors using AES-59 pin configuration
- Input impedance greater than 20kΩ balanced
- Frequency response from 20 Hz to 20 kHz within +0/-0.2 dB
- THD+N less than -110 dBFS at -30 dBFS, 20 Hz to 20 kHz
- Crosstalk below -100 dB at 1 kHz
- Common mode rejection greater than 70 dB at 1 kHz
- Supports line-up levels from +15 dBu to +24 dBu balanced
- Connects using supplied 4-pin power cable and 30-pin FFC audio/control cable
