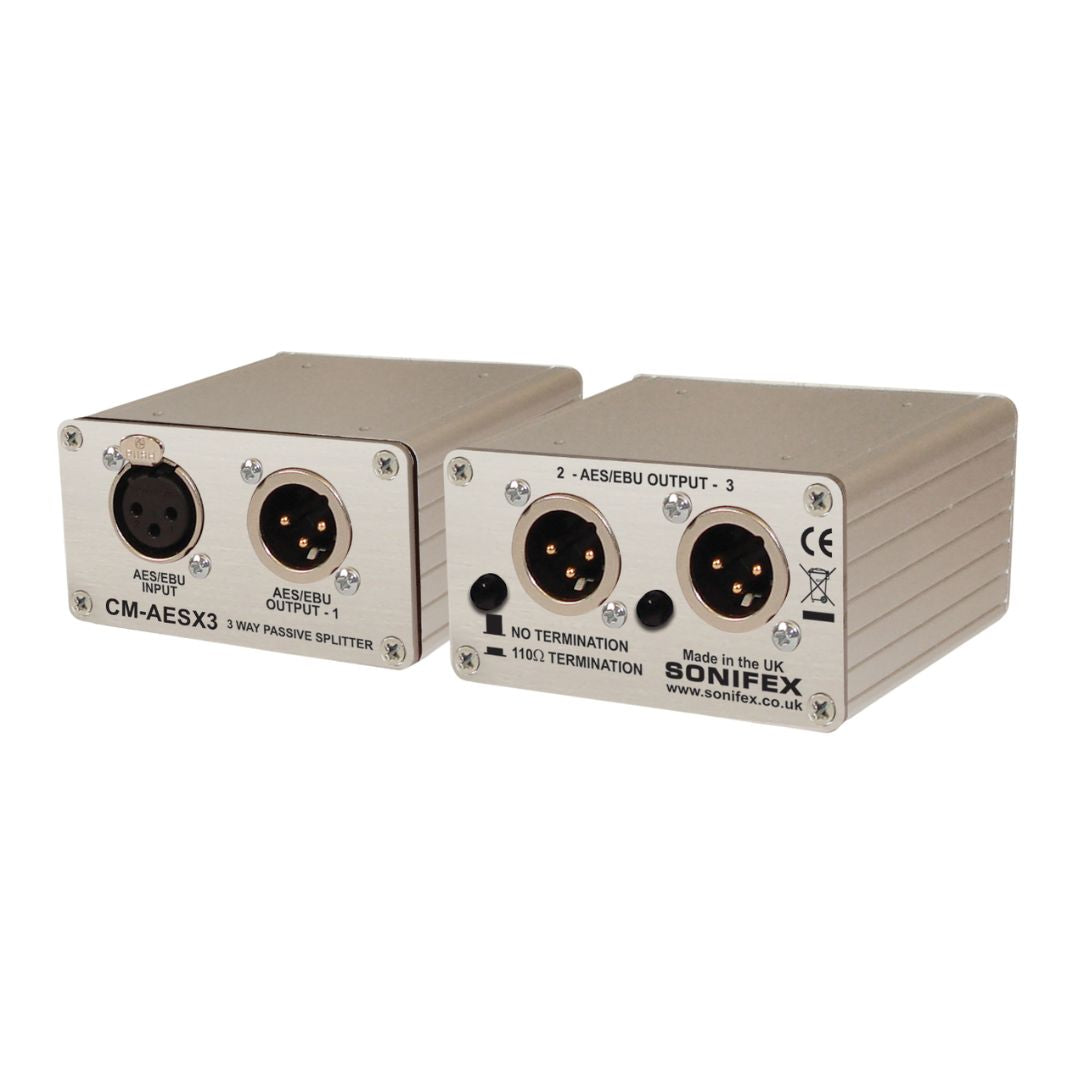

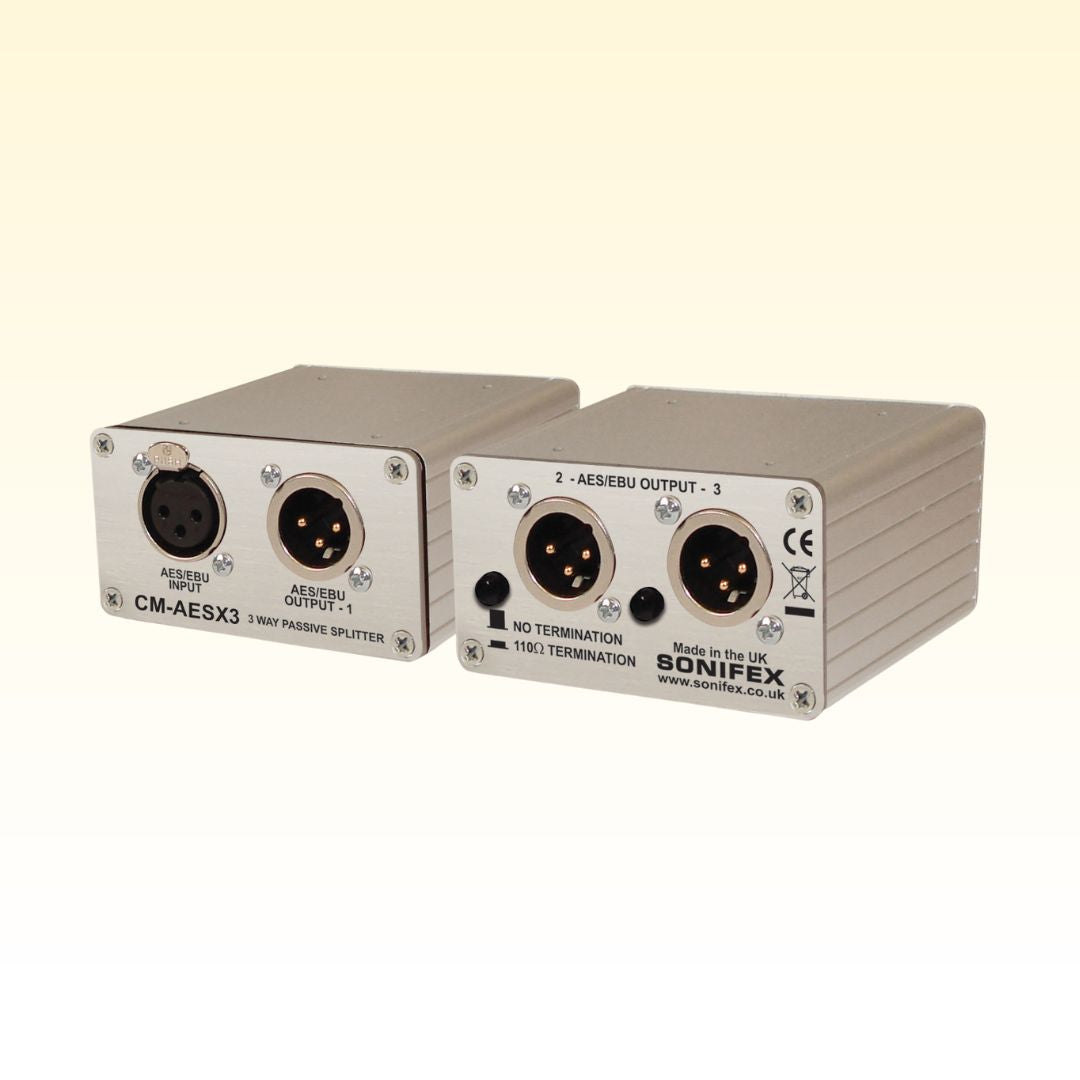

Sonifex CM-AESX3 Single 3 Way Passive AES/EBU Splitter XLR Connectors
Need to send one digital audio signal to multiple places? The Sonifex CM-AESX3 makes it easy. This tough little box splits a single signal into three, so you can connect your gear without any hassle. It doesn’t need any power to work, and the strong metal case means it’s built to last. Just plug it in and go—no setup, no stress.
Sonifex CM-AESX3 Single 3 Way Passive AES/EBU Splitter XLR Connectors Review
Behind its simple design, the Sonifex CM-AESX3 packs professional-grade performance. It splits an AES3 digital signal using high-quality transformers, keeping your audio clear and consistent across up to three outputs. With 110-ohm impedance and low insertion loss, it’s a great tool for clean signal distribution. And since it's completely passive, there’s no power supply to worry about—ideal for live shows, studios, or permanent installs where reliability is key.
Sonifex CM-AESX3 Single 3 Way Passive AES/EBU Splitter XLR Connectors Features
- Splits one audio signal into three outputs
- Doesn’t need power to work
- Compact and made with a strong metal case
- Easy to connect with XLR plugs
- Keeps audio signals clean and stable
- Great for both live and studio setups
Sonifex CM-AESX3 Single 3 Way Passive AES/EBU Splitter XLR Connectors Specs

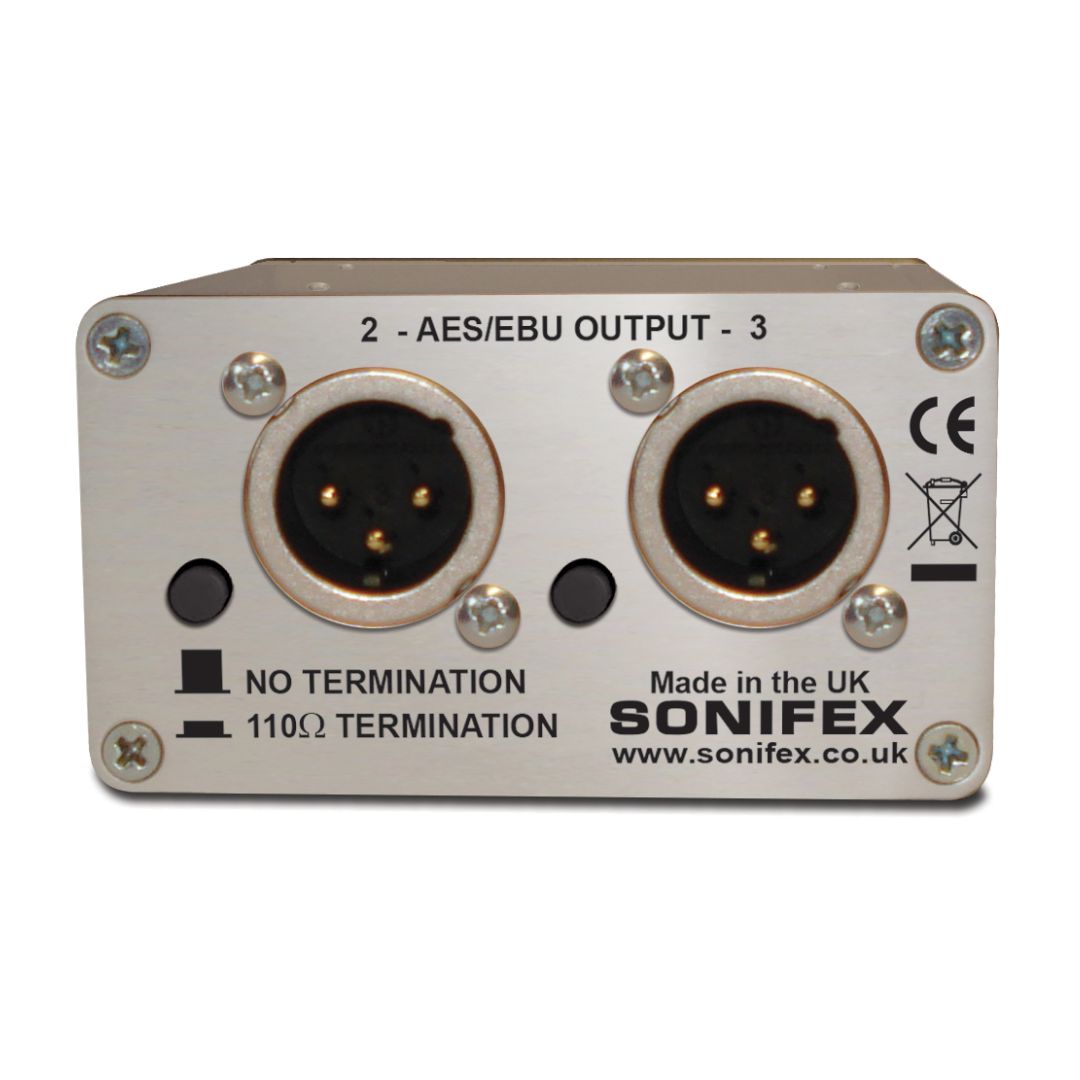

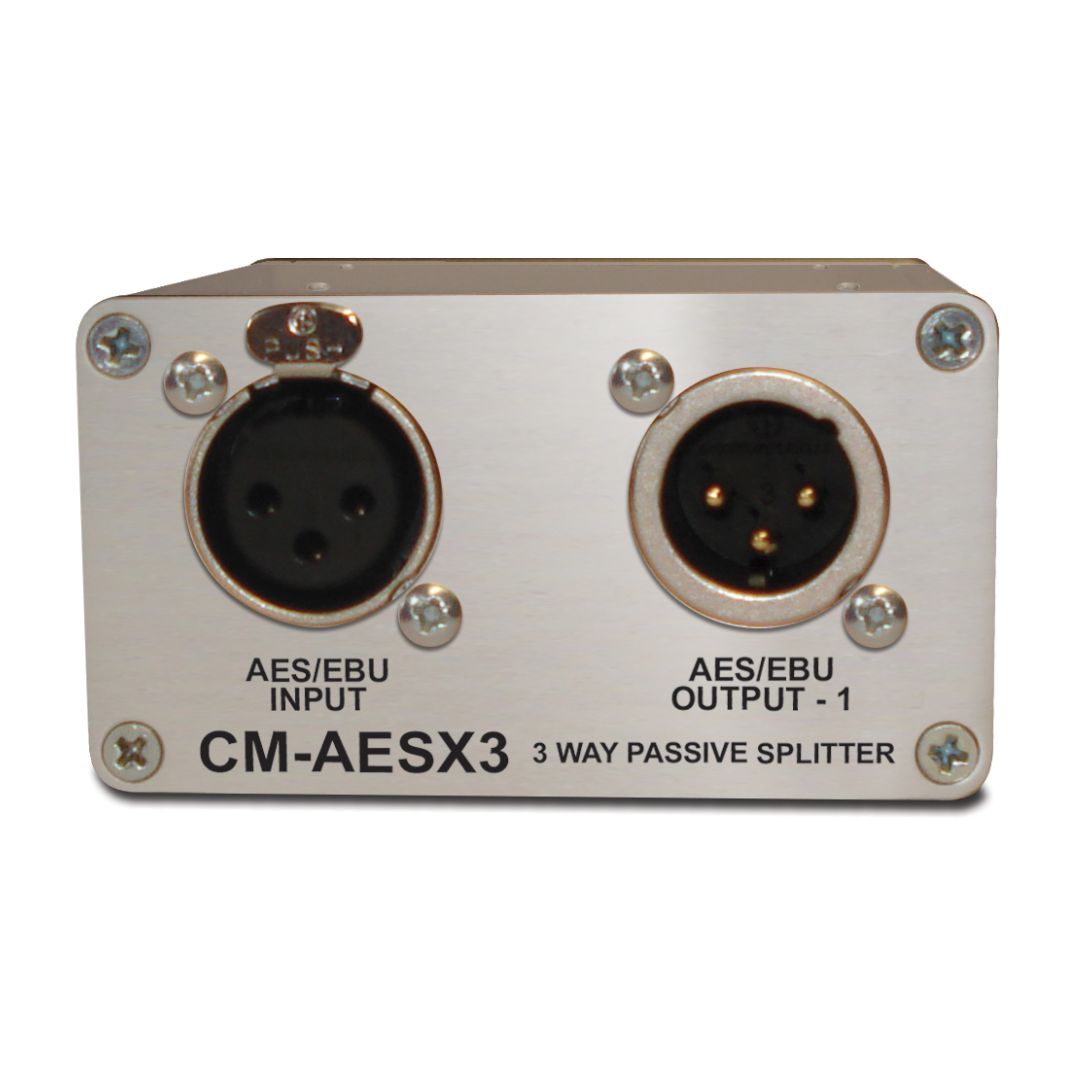

- 1 XLR (3-pin female) input and 3 XLR (3-pin male) outputs
- Handles up to 10 volts peak-to-peak signal up to 96kHz
- Insertion loss of 0.17dB (1:1) and 1.3dB (1:3)
- Measures 3.0” W x 3.3” D x 1.7” H (boxed: 9.0” W x 5.0” D x 3.0” H)
- Weighs 0.49 lbs (boxed: 0.73 lbs)
- Input and output impedance matched to 110 ohms
