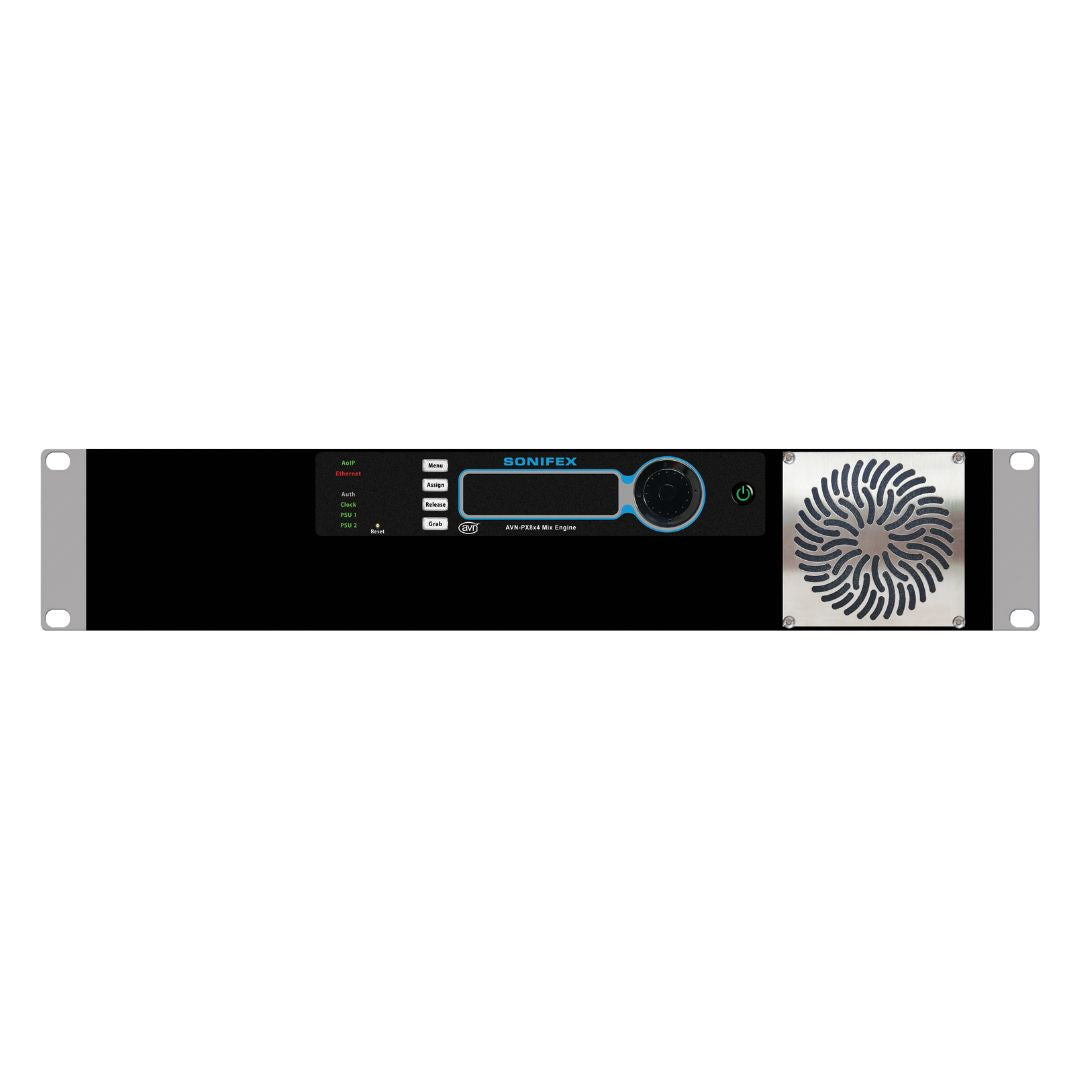

Sonifex AVN-PX8X4C 8x4 Channel Mix Engine
The Sonifex AVN-PX8X4C 8x4 Channel Mix Engine is built to make live audio easier and more reliable. It gives presenters and engineers full control of their sound whether on stage, in the studio, or behind the scenes. With simple web-based controls and flexible mixing options, it’s a powerful tool designed to keep the sound smooth and professional.
Sonifex AVN-PX8X4C 8x4 Channel Mix Engine Review
This mix engine is the heart of the Sonifex presenter monitoring system. It handles up to 24 analog inputs and 16 outputs, while also working with AES67 AoIP streams. Each unit can create eight separate virtual mixers, each blending up to four sources into one clean output. With dual hot-swappable power supplies, network redundancy, and a built-in webserver for setup, the AVN-PX8X4C is designed for critical environments where uptime matters. From production galleries to live control rooms, it offers flexibility, precision, and confidence.
Sonifex AVN-PX8X4C 8x4 Channel Mix Engine Features
- Eight independent mixers that let you shape sound for different uses
- Works with both analog gear and modern network audio systems
- Easy setup and control through a built-in web page
- Strong backup power system for peace of mind during live events

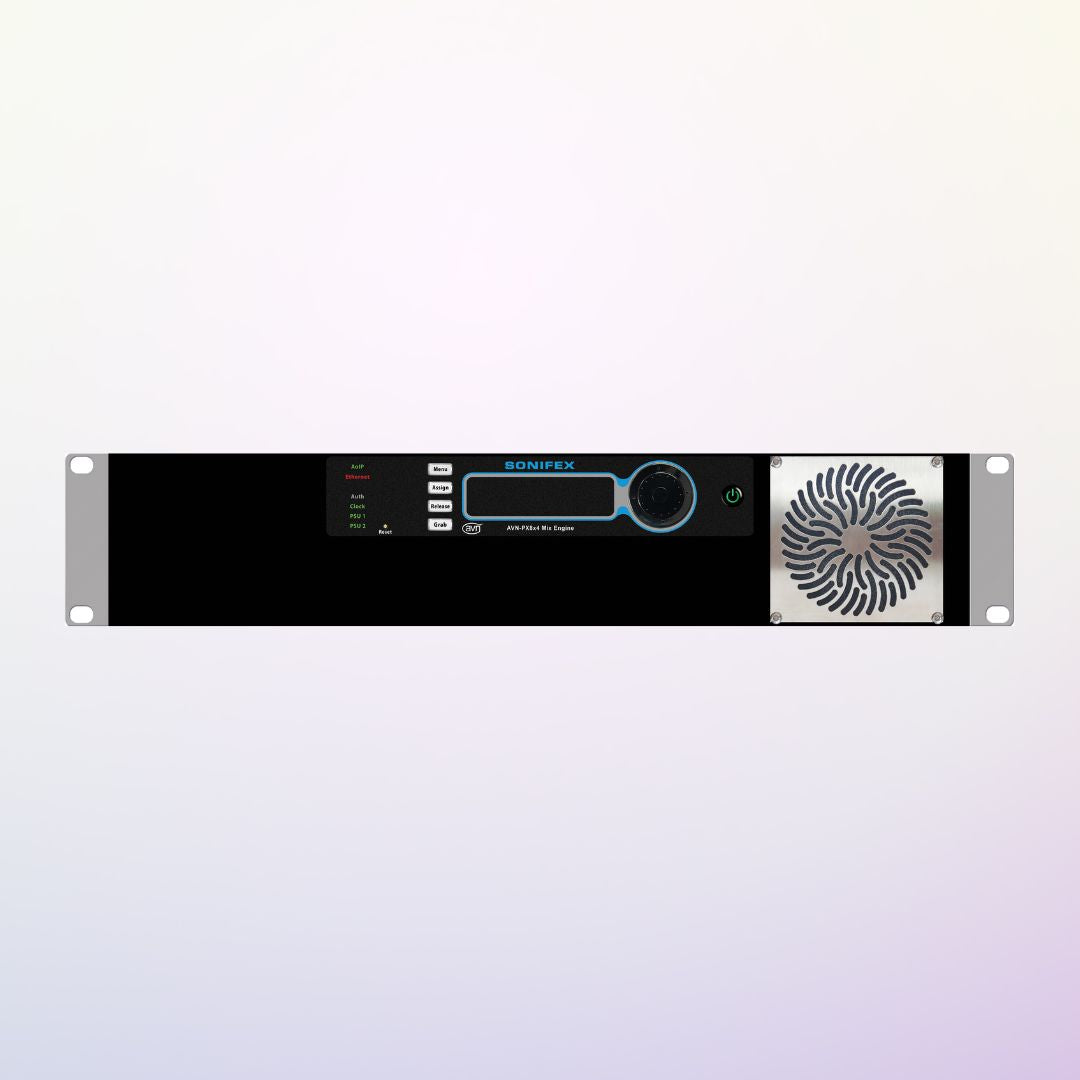

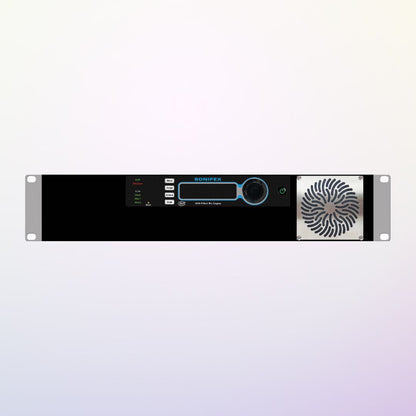

- Clear status lights on the front so you always know what’s happening
- Multiple remote units can be linked for both presenters and technicians
Sonifex AVN-PX8X4C 8x4 Channel Mix Engine Specs

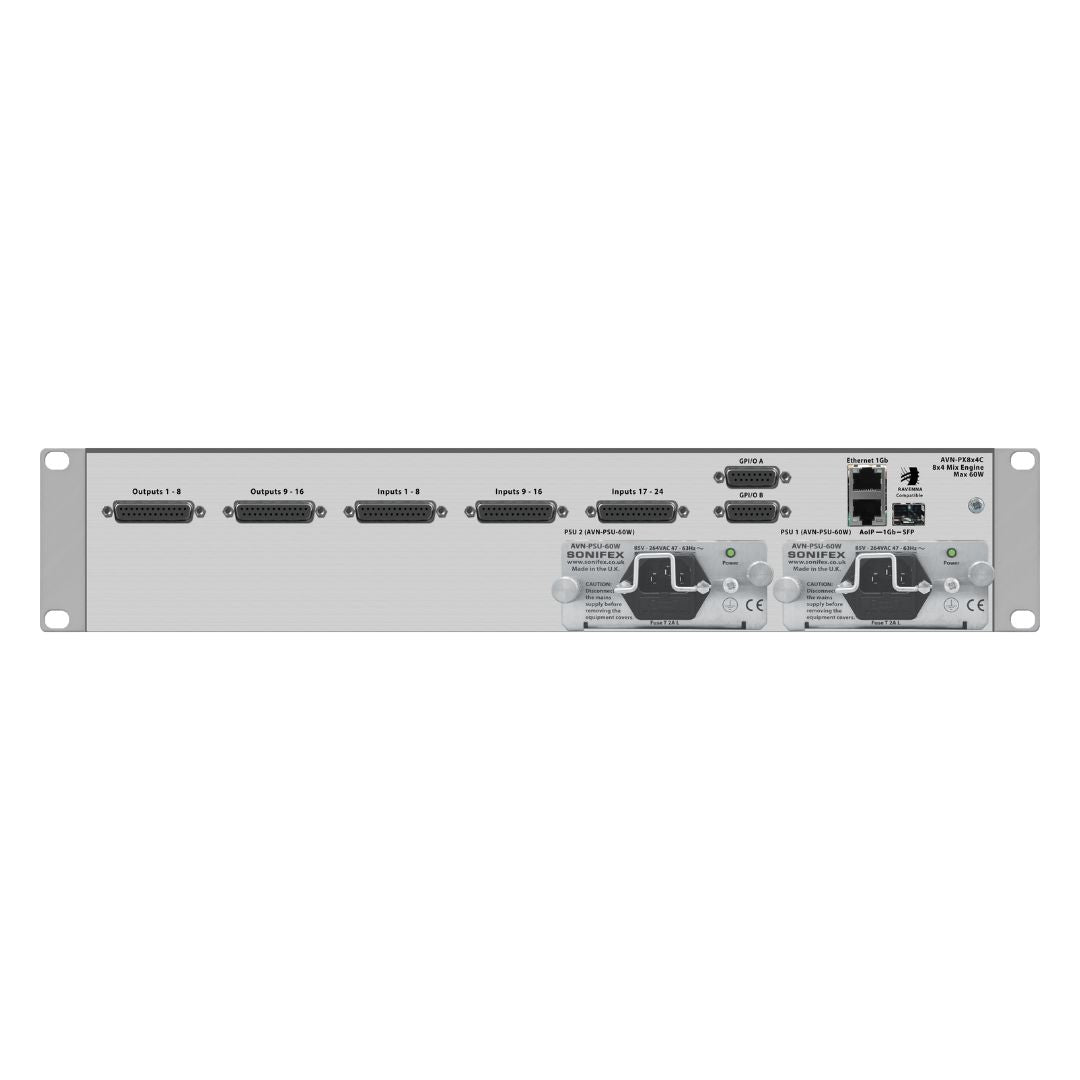

- 24 balanced analog inputs and 16 balanced analog outputs on DB25 connectors
- Supports up to 32 AoIP input streams and 10 AoIP outputs
- Dual redundant universal AC power supplies 85–264VAC, hot-swappable
- Power use up to 60W with 2A fuse protection
- Two 1Gb Ethernet ports plus one SFP port for network connections
- Frequency response from 20Hz to 20kHz with THD+N below -110dBFS
- Size 19in wide x 10.6in deep x 3.5in high, weighing 12.5lbs
