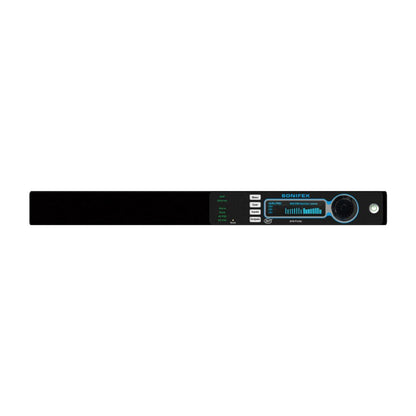

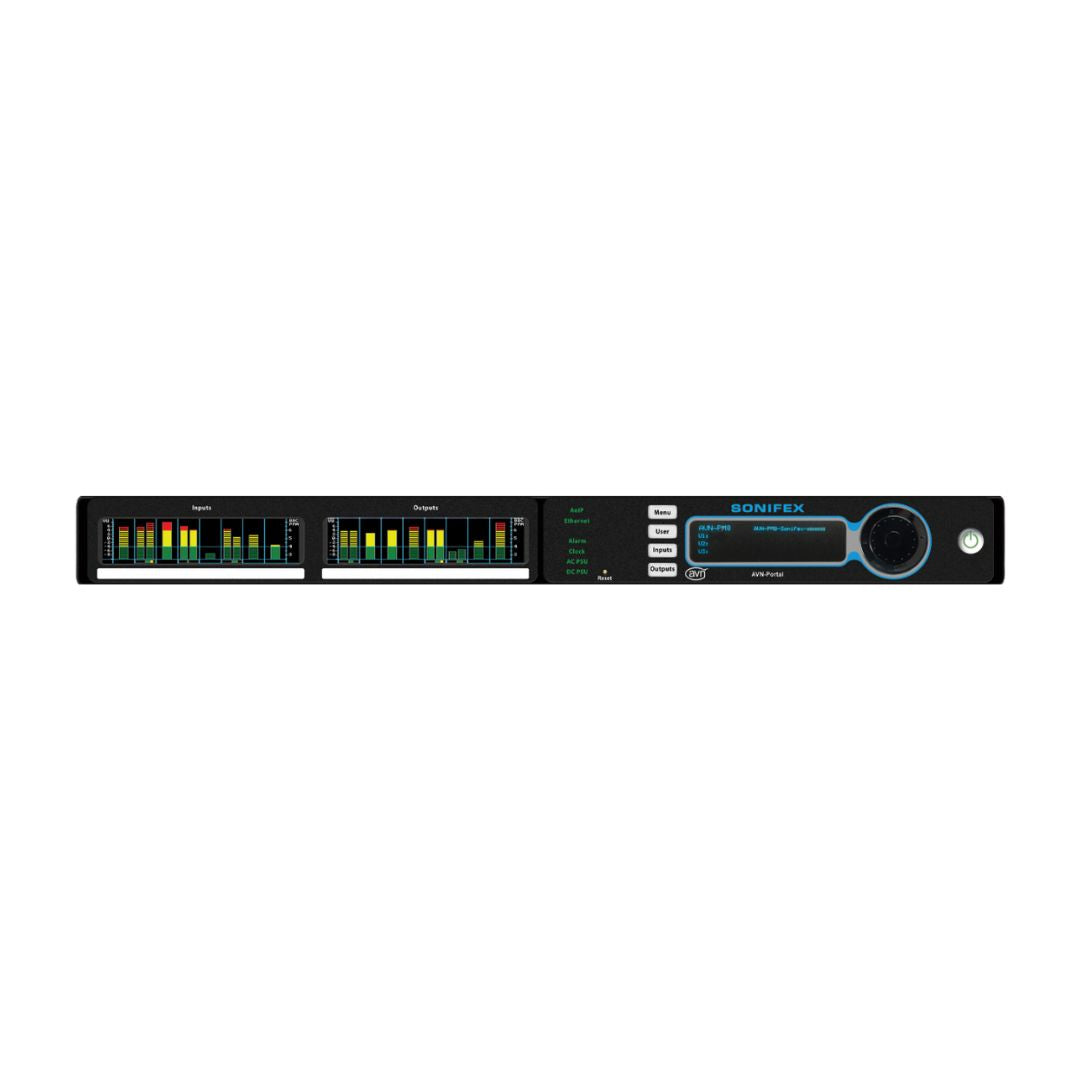

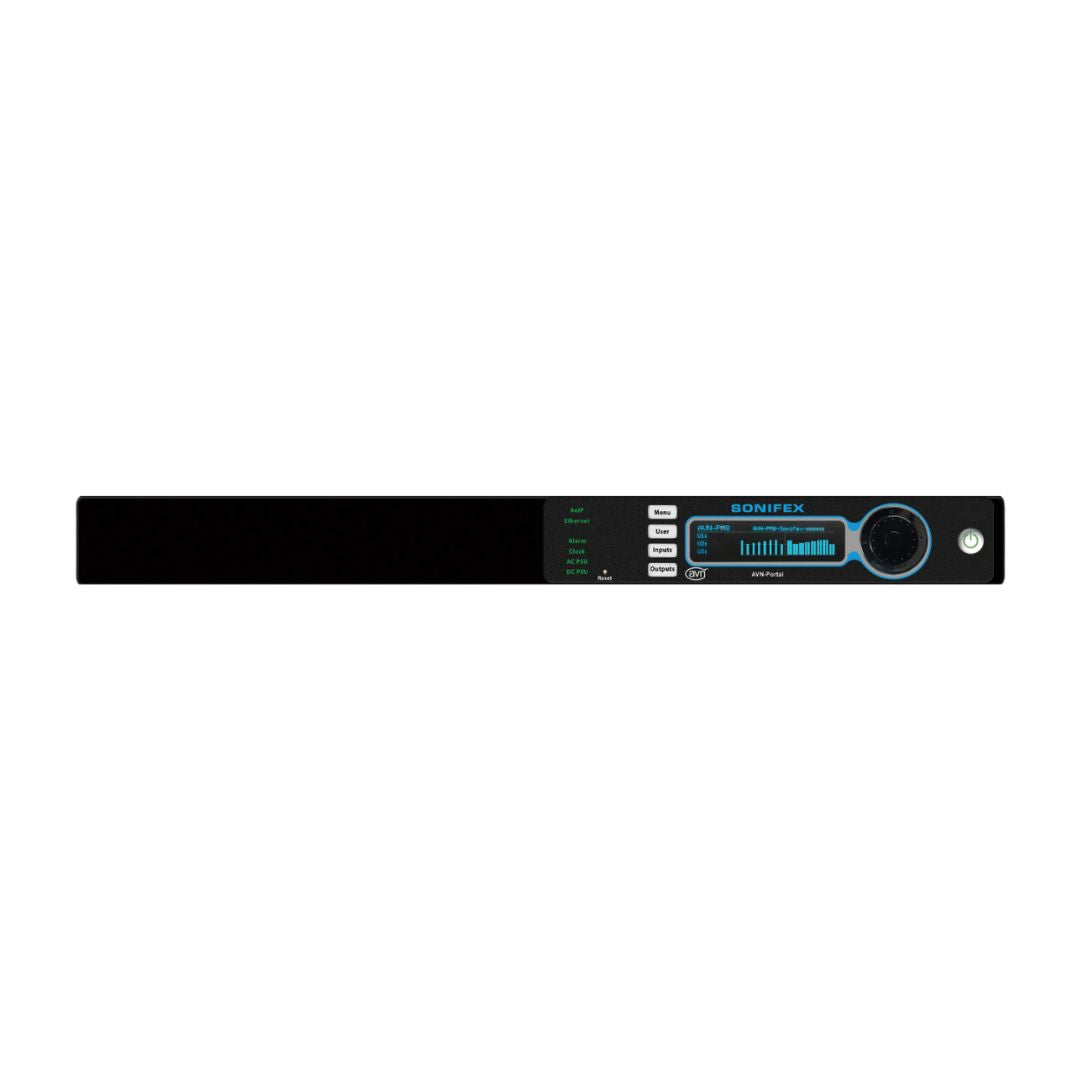

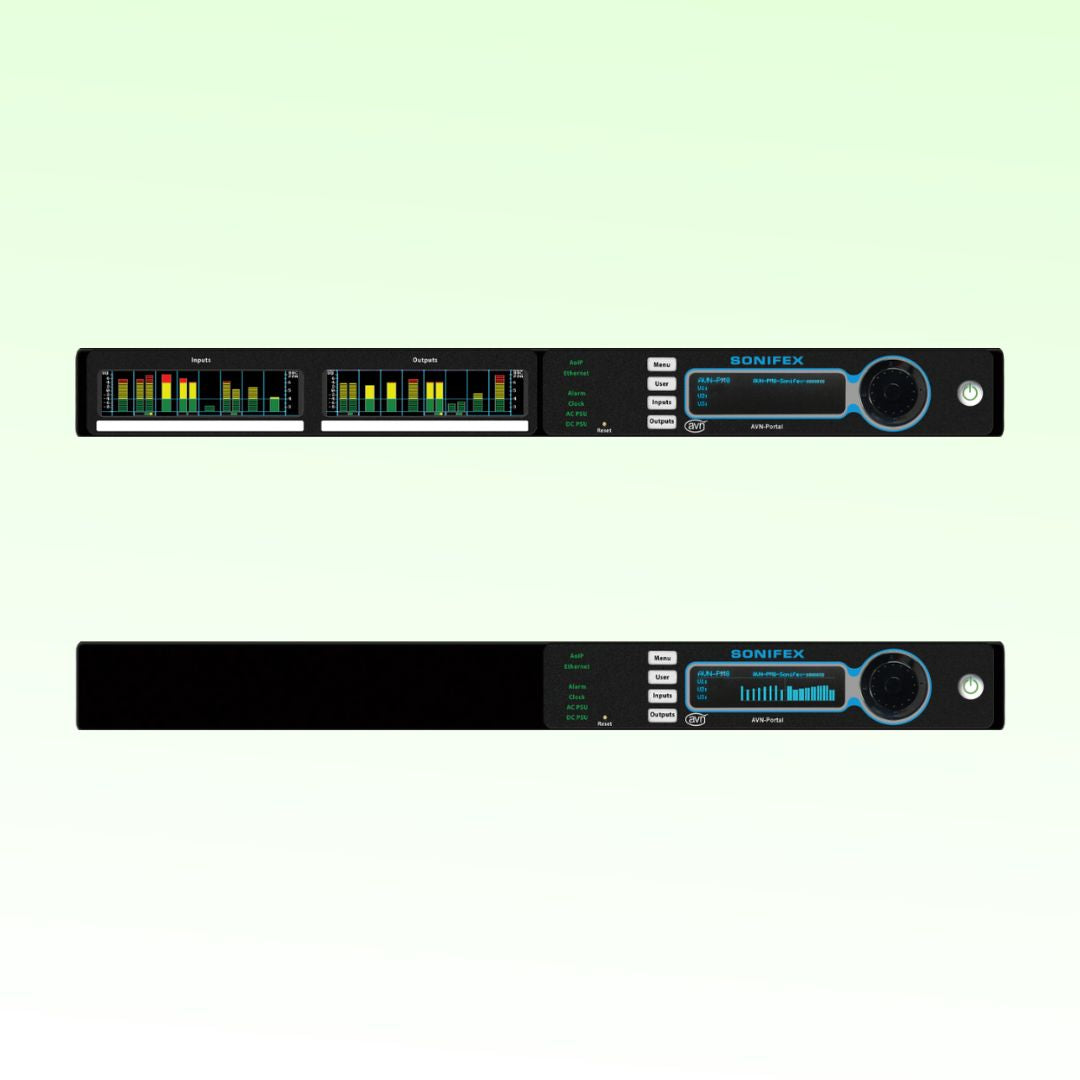

Sonifex AVN-PM8 Mix Engine Interface with AES67 Portal
The Sonifex AVN-PM8 Mix Engine Interface with AES67 Portal is your all-in-one audio mixing and routing solution, made simple. Whether you're setting up a live event, studio session, or broadcast system, this rack-mounted unit helps you mix and control multiple mic inputs and audio streams with ease. It’s packed with flexible features and designed for smooth operation—so you can focus more on the sound and less on the setup.
Sonifex AVN-PM8 Mix Engine Interface with AES67 Portal Review
Behind its clean front panel, the Sonifex AVN-PM8 is a powerful mix engine built for demanding audio environments. With 8 mic/line inputs, 64 channel AoIP output support, and compatibility with RAVENNA, AES67, and Dante®, this interface is perfect for audio professionals working with modern networked systems. Its responsive webserver lets you configure everything remotely, while the mix matrix offers total control over routing and levels. Whether you’re creating clean feeds, distributing headphone mixes, or managing IFB audio, this unit can handle it all with precision.
Sonifex AVN-PM8 Mix Engine Interface with AES67 Portal Features
- Lets you mix and control 8 mic or line inputs easily
- Works with common audio networks like Dante and AES67
- Shows important settings and levels on a clear front display
- Can power up to 8 headphone amps for personal mixes
- Use it from anywhere with the built-in web control
- Keeps working even during power issues with dual power inputs
Sonifex AVN-PM8 Mix Engine Interface with AES67 Portal Specs
- Power input supports 85–264V AC and 10–14V DC for backup

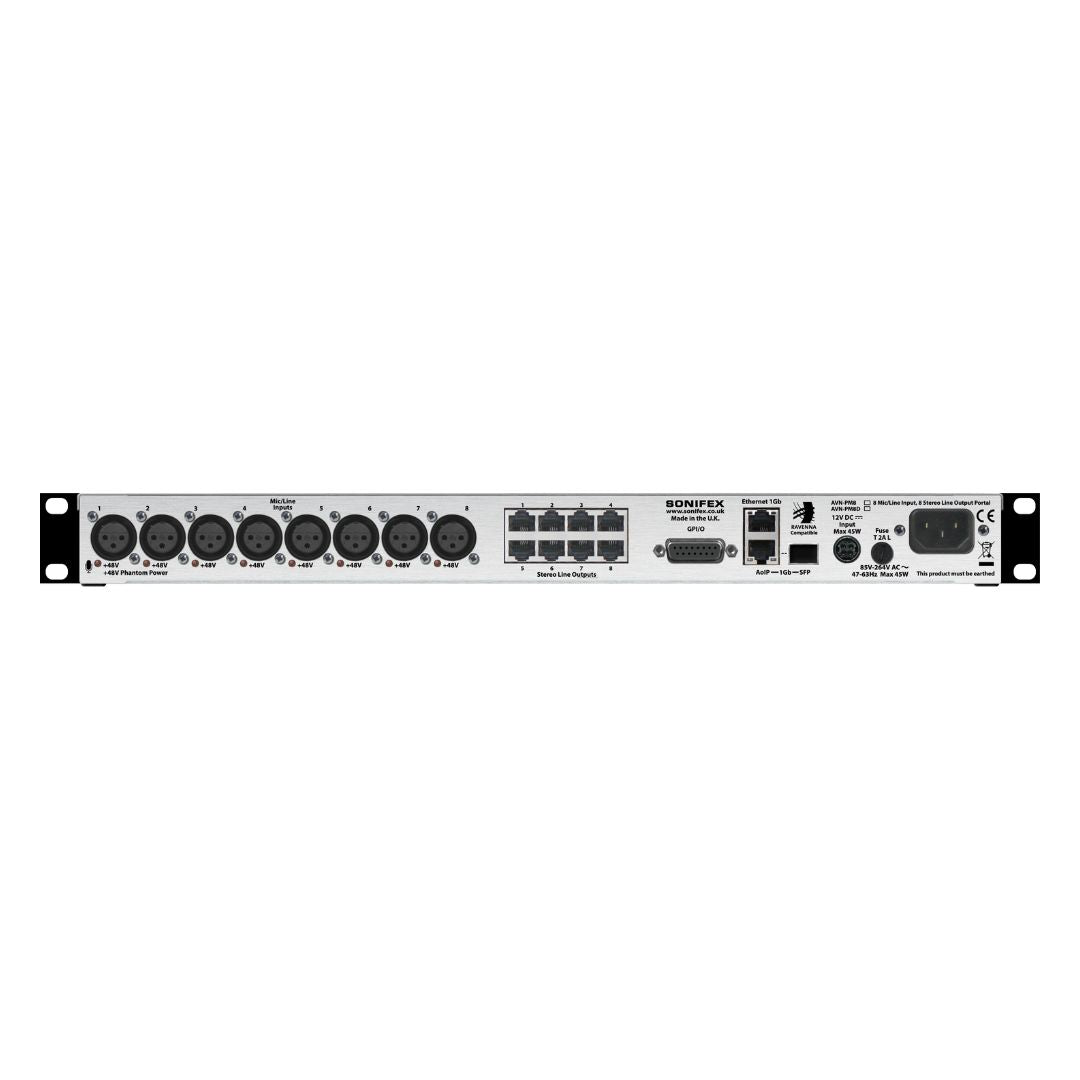

- Offers 8 XLR mic/line inputs and 8 stereo RJ45 outputs
- Includes dual 1Gb Ethernet ports plus 1Gb SFP port
- Uses 24-bit linear PCM format at 48kHz sample rate
- Dimensions are 19in (W) x 6.9in (D) x 1.8in (H); weighs about 6.6 lbs
