Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal
The Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal is a powerful and flexible tool for managing audio in any professional setting. Whether you’re routing sound for a broadcast, live event, or studio, it gives you the freedom to mix and send audio exactly where you need it. With intuitive controls, crystal-clear sound, and the ability to connect to modern networked audio systems, it’s built to make complex audio setups simple.
Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal Review
Built for serious audio professionals, the Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal combines 8 stereo AES3 digital inputs and outputs with advanced AoIP capabilities. It supports RAVENNA, AES67, and even AES67-enabled Dante streams, allowing seamless integration into a variety of systems. With a responsive web-based mixer, detailed metering (on the “D” version), and redundant power options, it’s ready for mission-critical use. Its flexible mix matrix makes routing between physical and networked sources effortless, while its rock-solid build ensures reliability in demanding environments.
Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal Features
- Lets you mix and route audio between physical and networked sources with ease
- Can connect over standard network cables or fiber for long-distance runs
- Built-in web controls make setup and adjustments quick and simple
- Works with multiple audio formats including AES67 and RAVENNA
- Redundant power options help keep your audio running without interruptions

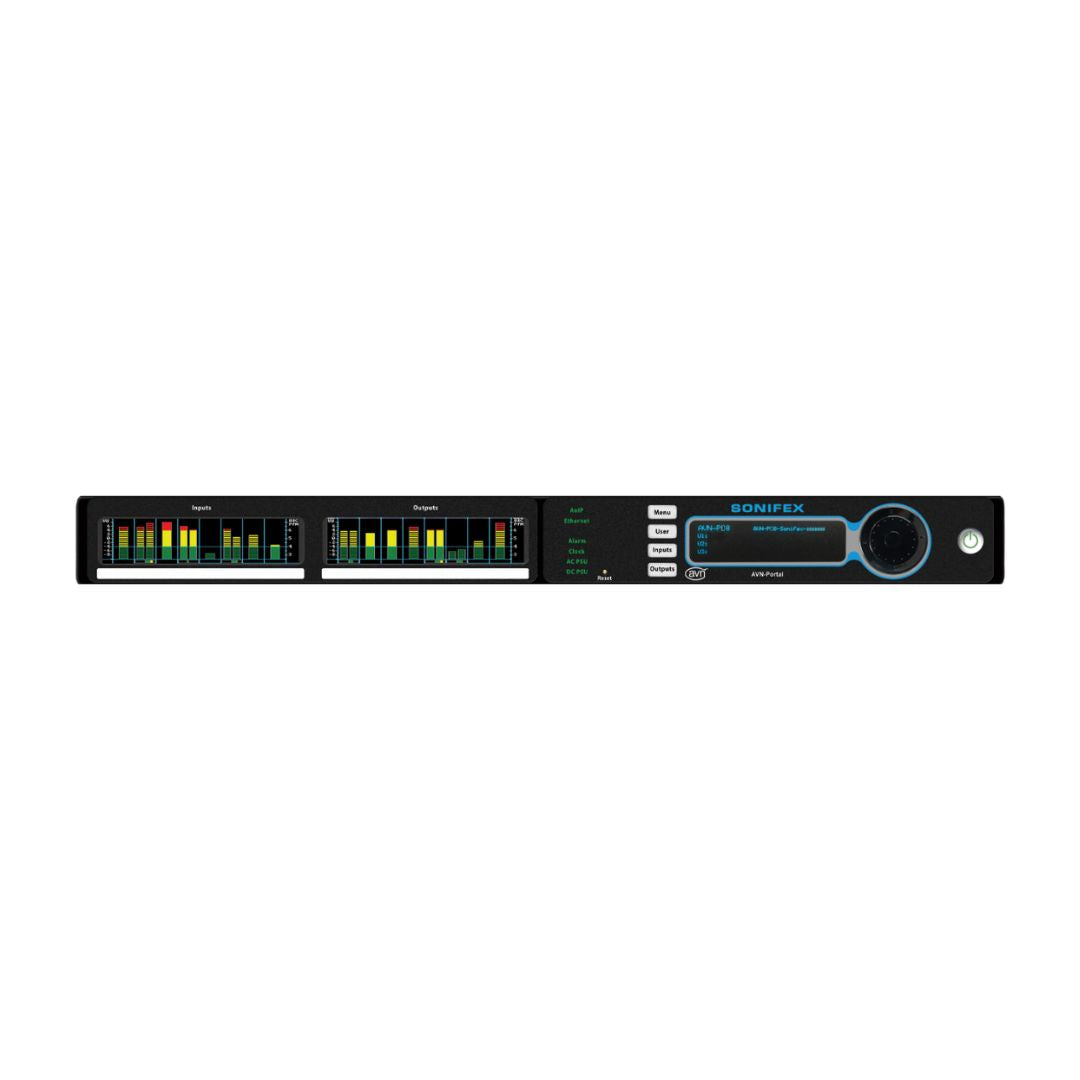

- Available with detailed metering for precise audio monitoring
Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal Specs

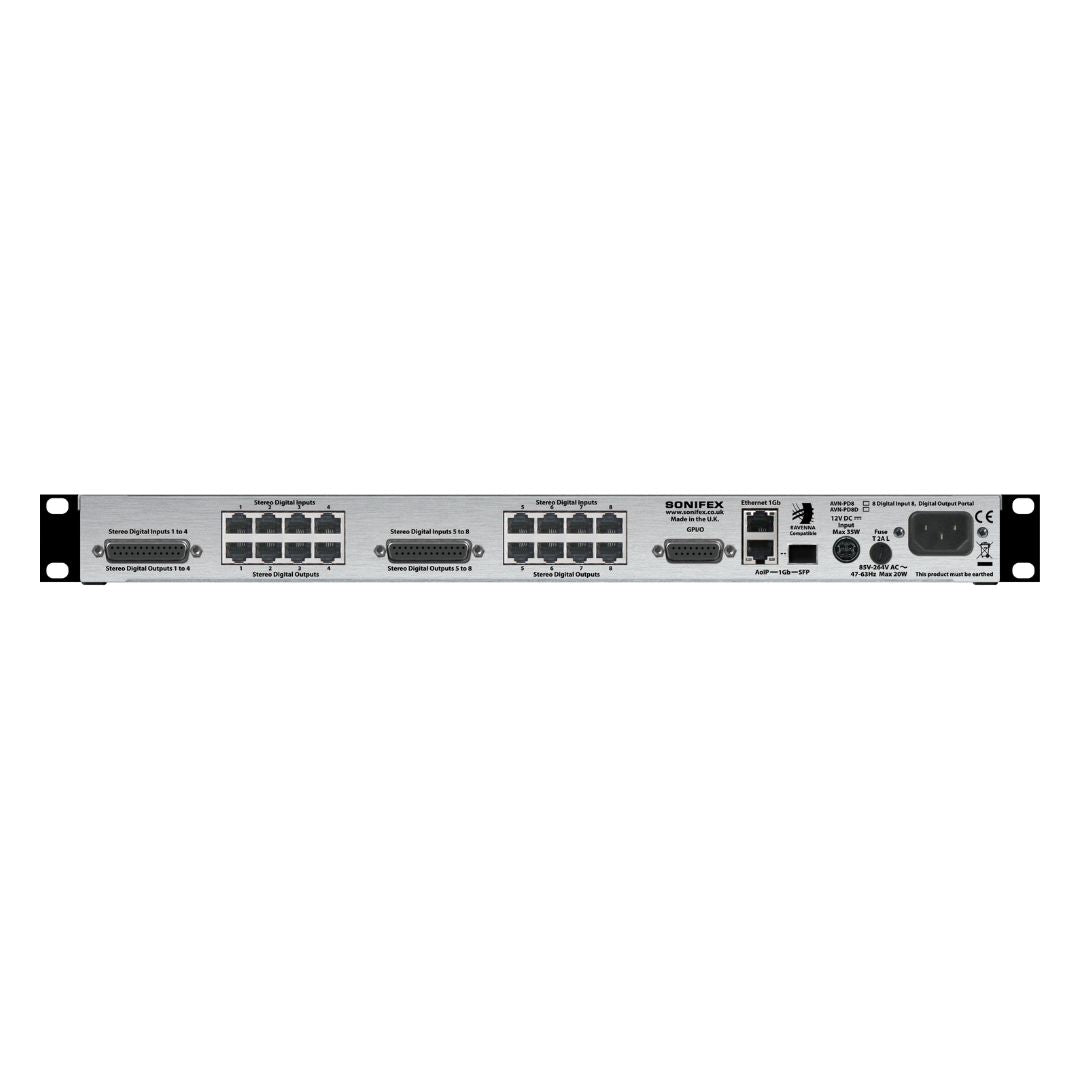

- 8 stereo AES3 digital inputs and 8 stereo AES3 digital outputs on D-type and RJ45 connections
- Supports up to 8 AoIP input streams and 8 AoIP output streams, each with up to 8 channels
- Operates at 48 kHz sample rate, 24-bit linear PCM audio
- Dual Gigabit Ethernet ports plus 1Gb SFP port for copper or optical connection
- Universal AC power input 85–264V, 47–63Hz or DC input 10–14V
- Dimensions 19" W x 6.9" D x 1.8" H (1U rackmount)
- Weight 6.34 lbs
