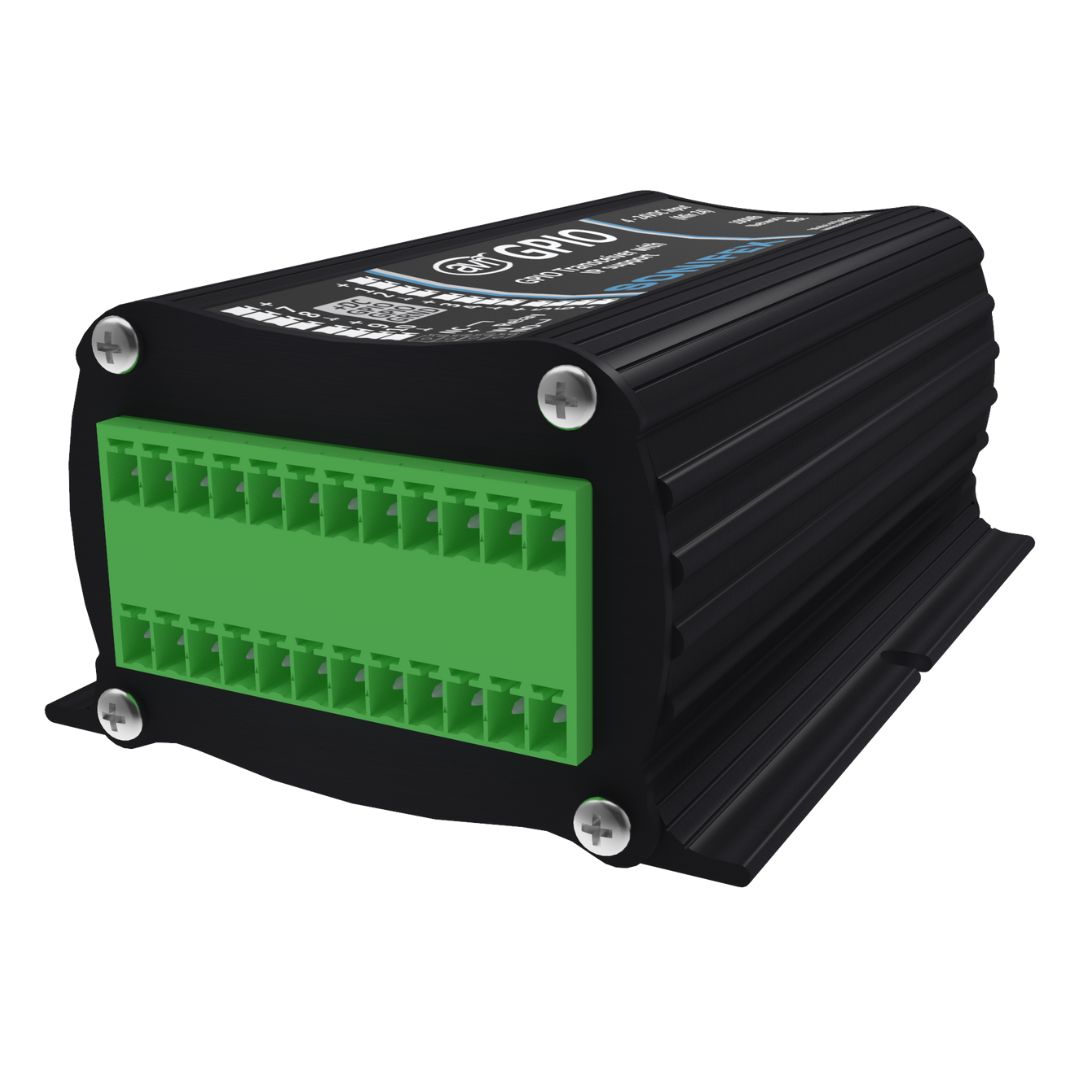

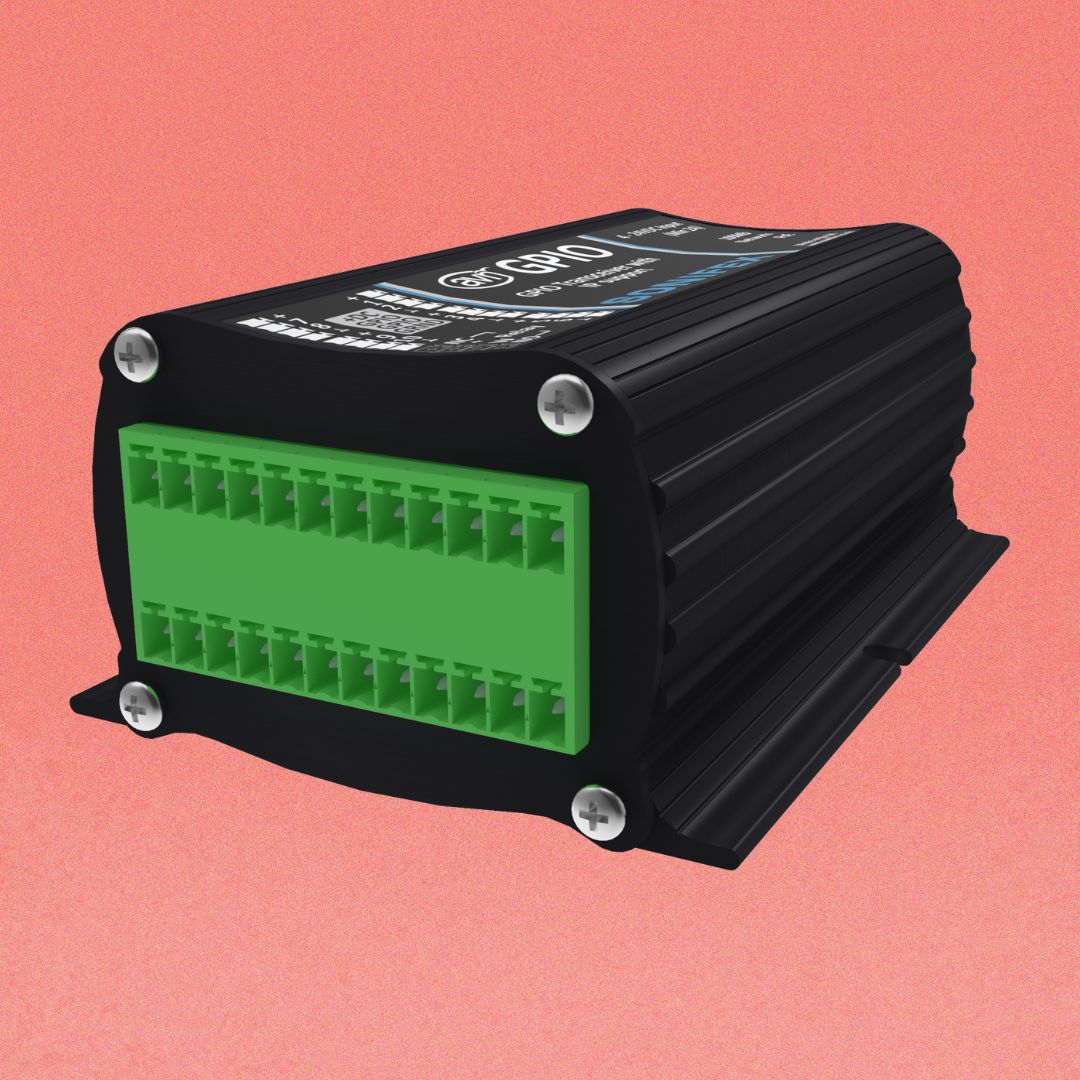

Sonifex AVN-GPIO GPIO to LAN Transceiver (EMBER+ & UDP)
Take your system control to the next level with the Sonifex AVN-GPIO GPIO to LAN Transceiver (EMBER+ & UDP). This smart little box lets you trigger actions or devices from miles away—right over your network—without messy cables. Whether it’s turning on lights, starting machinery, or syncing up gear across different locations, it gives you powerful control with just one cable for both power and connection.
Sonifex AVN-GPIO GPIO to LAN Transceiver (EMBER+ & UDP) Review
This device is packed with advanced features made simple. With 10 configurable inputs and outputs—eight of which can be synced to an ultra-precise PTP clock—it’s built for tasks that require split-second accuracy. It's perfect for things like remote automation, timing events down to the nanosecond, or sending signals between devices anywhere on your network. You can configure everything through a built-in web page, and the virtual GPIO lets you control other Sonifex gear with zero extra wiring. It even works with Ember+ and UDP protocols, making it easy to connect with custom setups and existing systems.
Sonifex AVN-GPIO GPIO to LAN Transceiver (EMBER+ & UDP) Features
- Lets you send and receive control signals over a network without extra cables
- Built-in web page makes setup and monitoring super easy
- Eight of the control pins can be used for super-precise timed actions
- Can power small devices like sensors and lights through the same unit
- Sends and receives virtual control signals to other gear on the same network
- Only needs one cable for power and control when using Power over Ethernet
Sonifex AVN-GPIO GPIO to LAN Transceiver (EMBER+ & UDP) Specs
- Supports Power over Ethernet (IEEE 802.3af) or DC power input from 4V to 24V
- Outputs 12V at 300mA when powered via PoE, or up to 1A with DC input

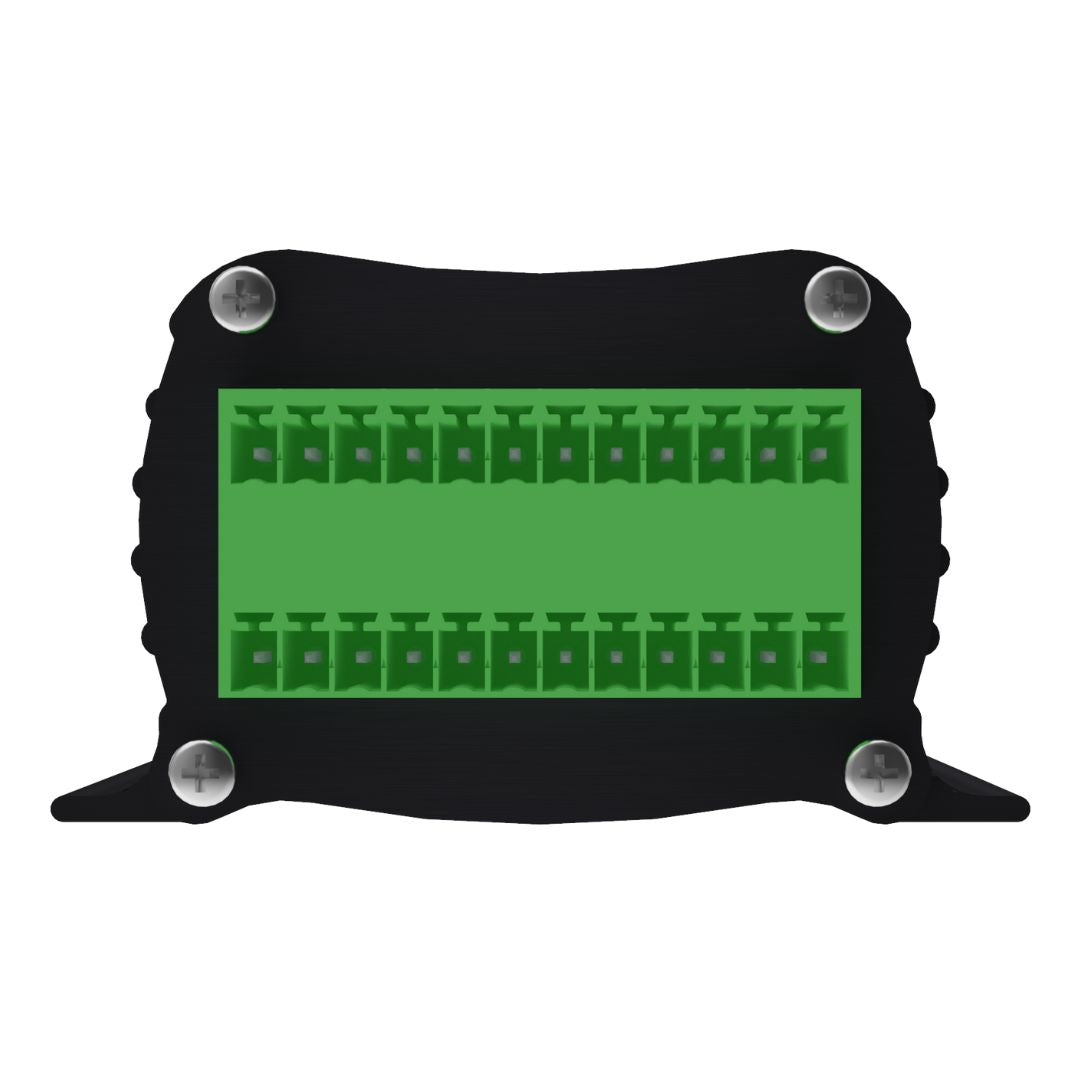

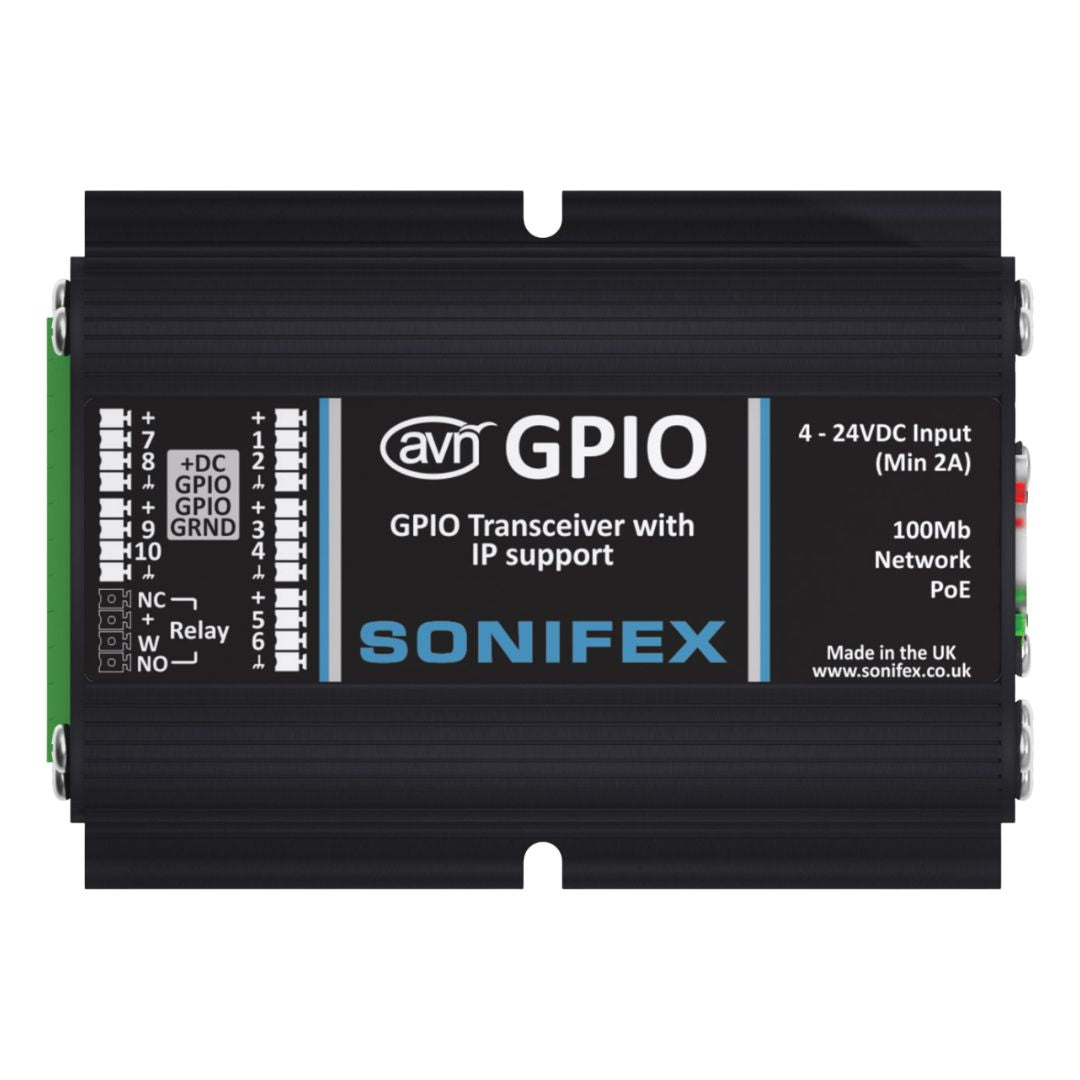

- 10 total GPIOs (8 PTP enabled), plus one relay contact
- Uses PTPv2 (IEEE1588-2008) with timestamp accuracy up to 8 nanoseconds

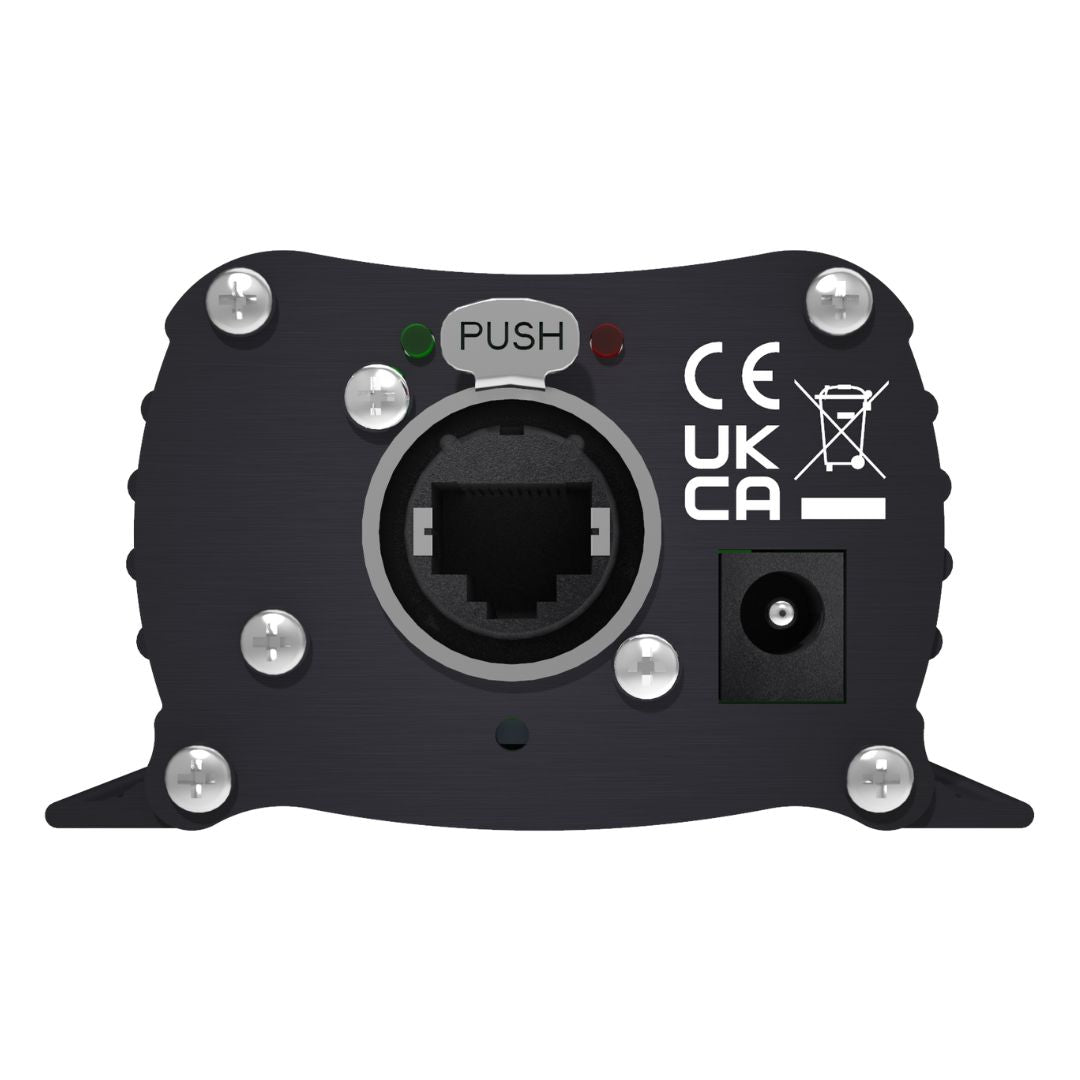

- Network port is 100BASE-TX (RJ45) with a built-in UDP and Ember+ interface
- Measures 4.2 in (W) × 2.9 in (D) × 1.7 in (H) and weighs 0.44 lbs
