Sonifex AVN-DIO10-12G Dante 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder
The Sonifex AVN-DIO10-12G makes it easy to link your SDI video gear with the power of Dante audio networking. Simple to set up and built for reliability, this compact box lets you embed or pull audio right from your video signals without the hassle. Whether you’re running live events, working in broadcast, or setting up a studio, it gives you a fast, flexible way to connect everything together.
Sonifex AVN-DIO10-12G Dante 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder Review
This upgraded version of the AVN-DIO10 supports the full range of SDI standards, from standard definition all the way to 12G-SDI. It can handle up to 64 channels in both embedding and de-embedding at the same time, with easy mapping through Dante Controller. The unit also offers flexible operation modes, including loop-through or generator mode, so you can run it as a straight pass-through, a full embedder, or even as two independent devices in one. With support for both 48kHz and 96kHz audio, built-in test tones, and AES67 compatibility, it’s designed for modern workflows where stability and versatility are a must.
Sonifex AVN-DIO10-12G Dante 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder Features
- Connects SDI video with Dante audio quickly and easily
- Handles up to 64 channels of audio at once
- Works as both an embedder and de-embedder at the same time
- Runs on Power over Ethernet with backup power support
- Compact design fits neatly into your setup
- Built-in test tones help you check connections fast
Sonifex AVN-DIO10-12G Dante 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder Specs
- Supports SDI formats from SD through 12G with video resolutions up to 4K
- Audio sample rates of 48kHz and 96kHz with sample rate conversion between Dante and SDI
- 64 channels in and 64 channels out at 44.1/48kHz, 32 in/out at 88.2/96kHz

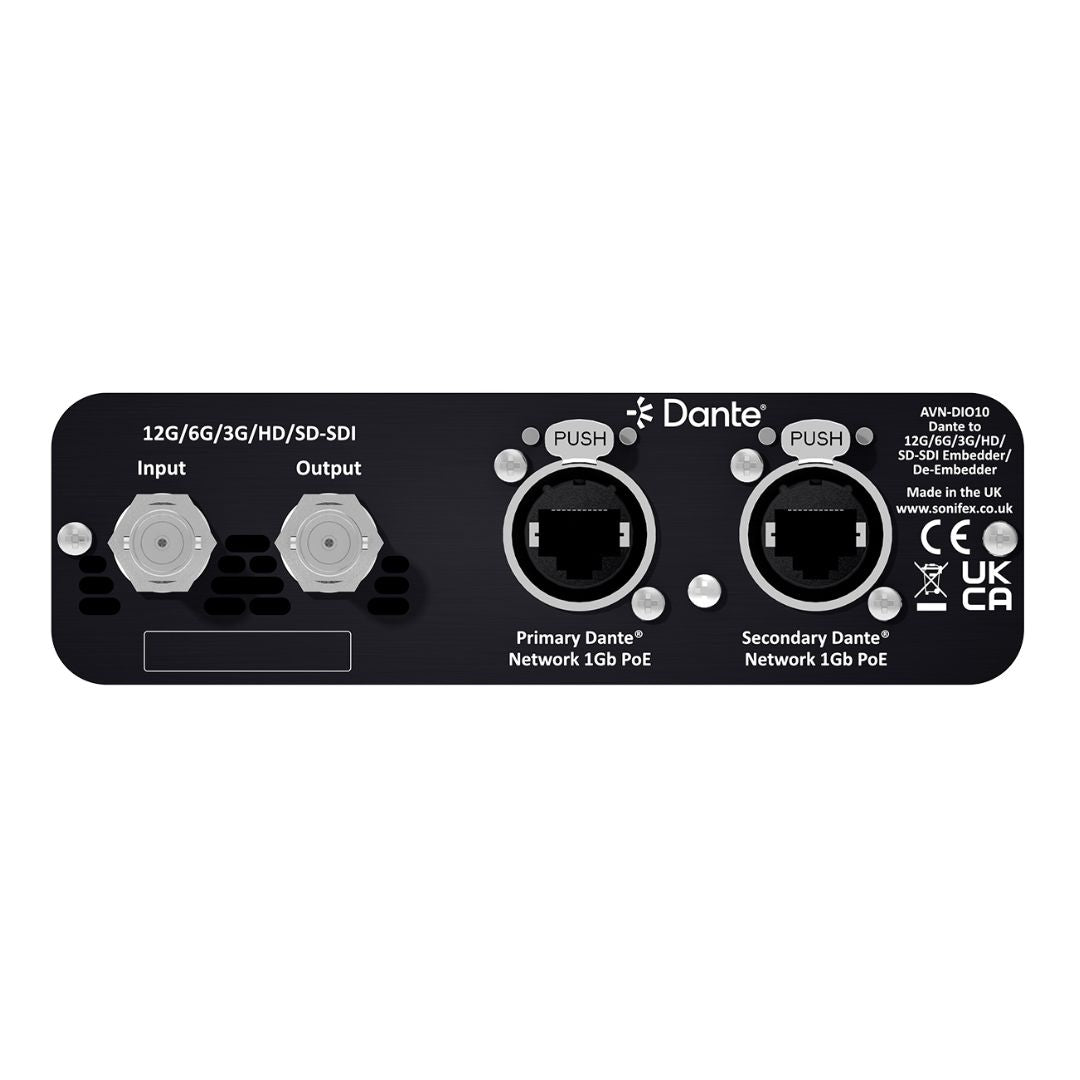

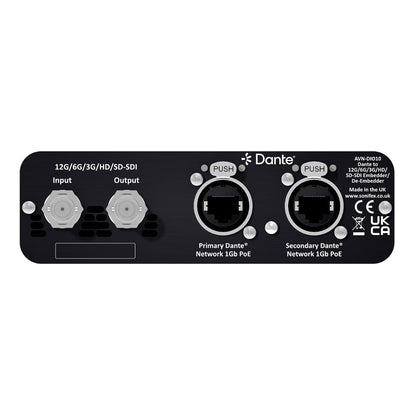

- Dual EtherCON network ports with redundancy for Dante and PoE power
- AES67 and Dante Domain Manager compliant
- Dimensions 5.5 in W x 5.4 in D x 1.7 in H, weight 0.79 lbs
- Power via PoE, typical usage 6 W, max 15.4 W
