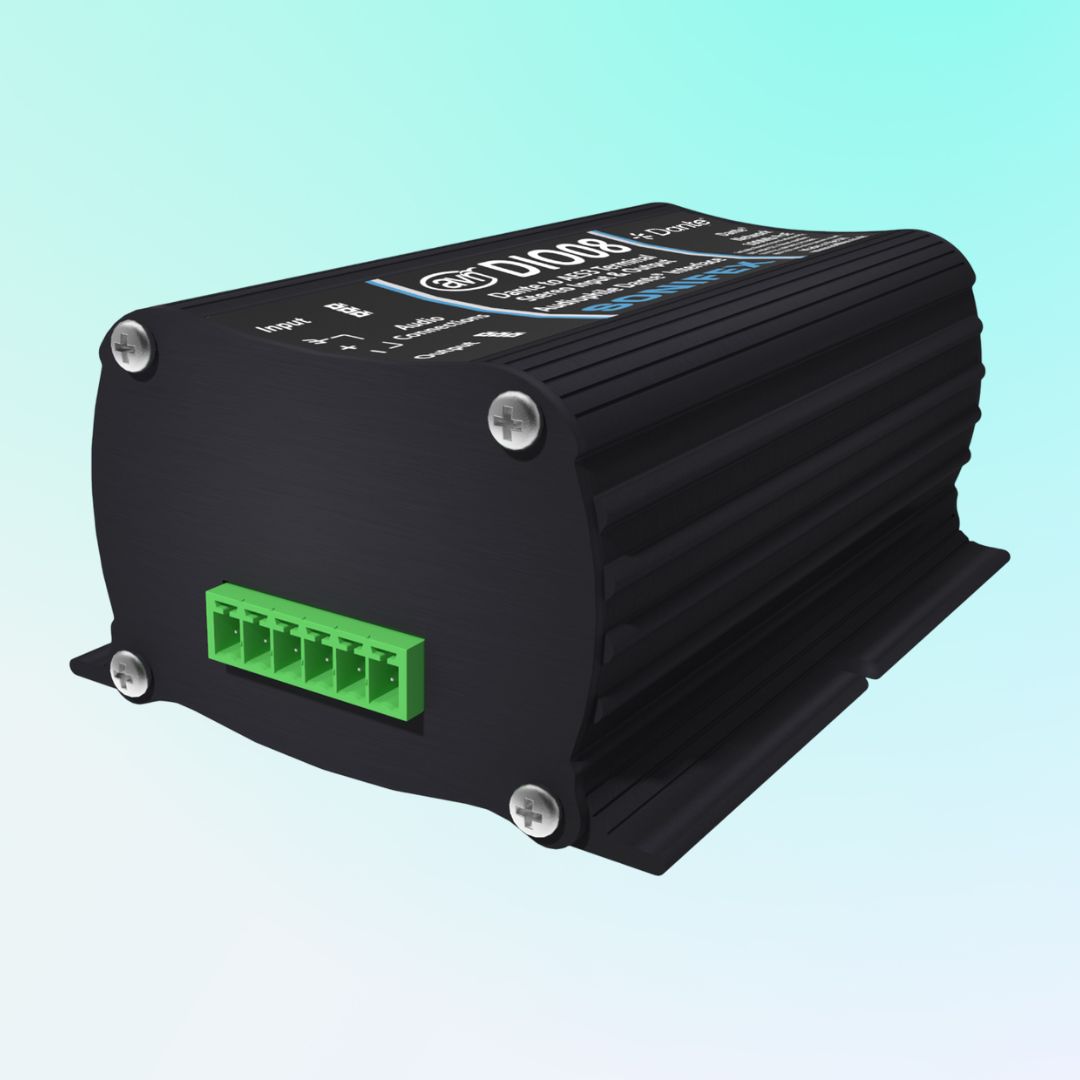

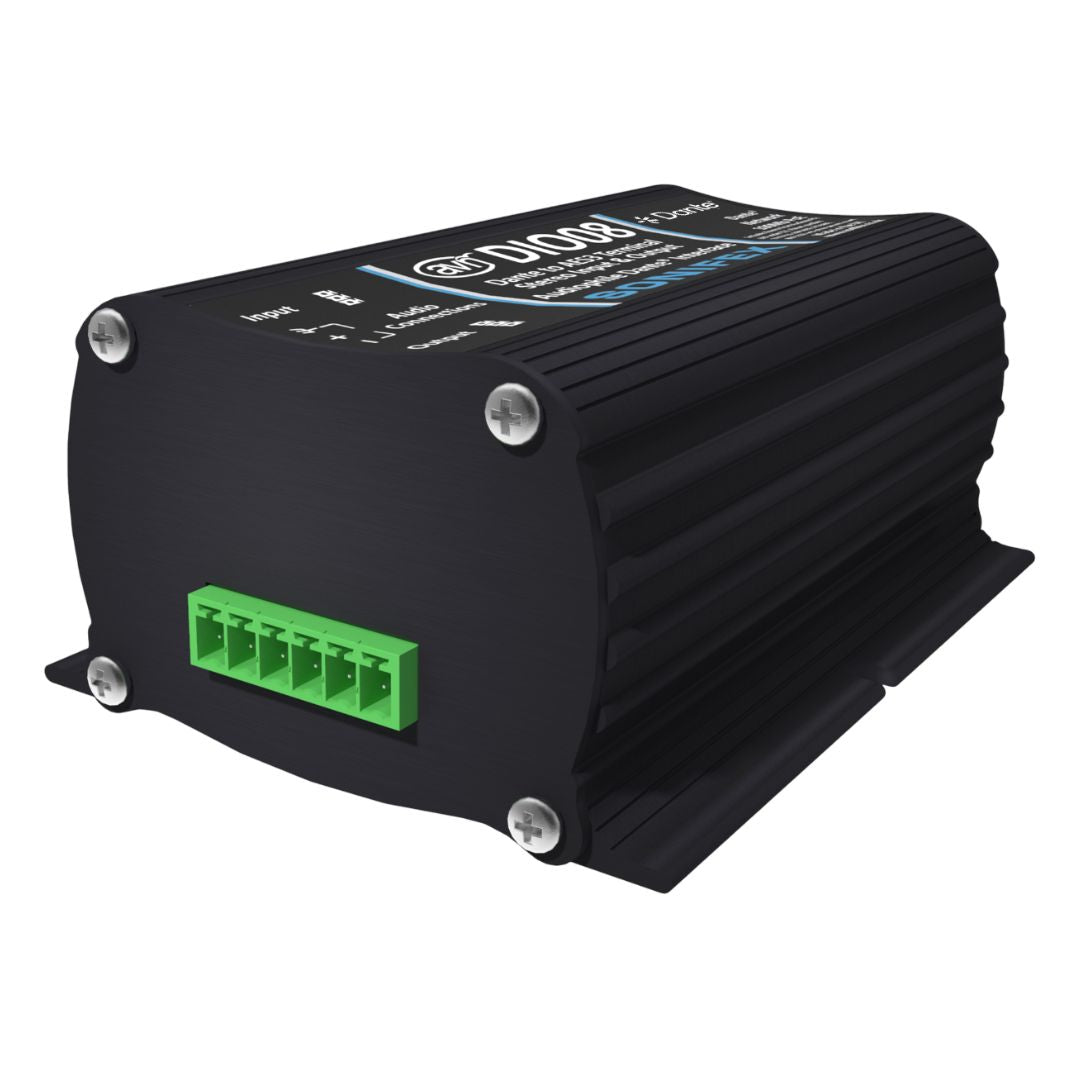

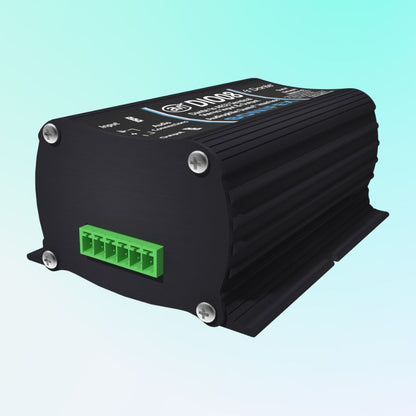

Sonifex AVN-DIO08 Dante AES3 Terminal Block Stereo Input & Output
The Sonifex AVN-DIO08 makes it easy to connect your digital audio gear to a modern Dante network. Built tough in a compact box, it offers reliable performance while keeping setup simple. If you need a quick and seamless way to bridge classic equipment with today’s audio-over-IP systems, this unit delivers without hassle.
Sonifex AVN-DIO08 Dante AES3 Terminal Block Stereo Input & Output Review

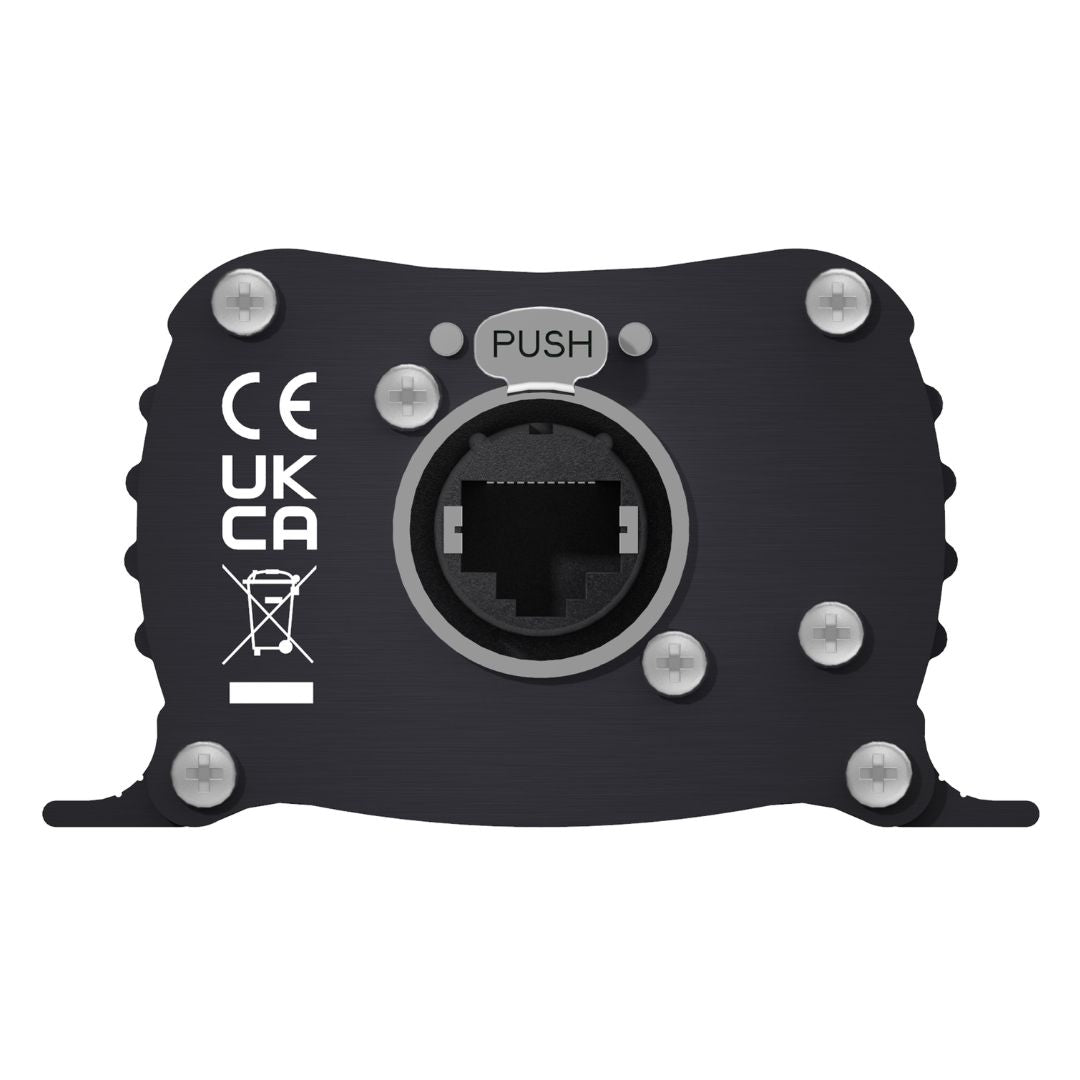

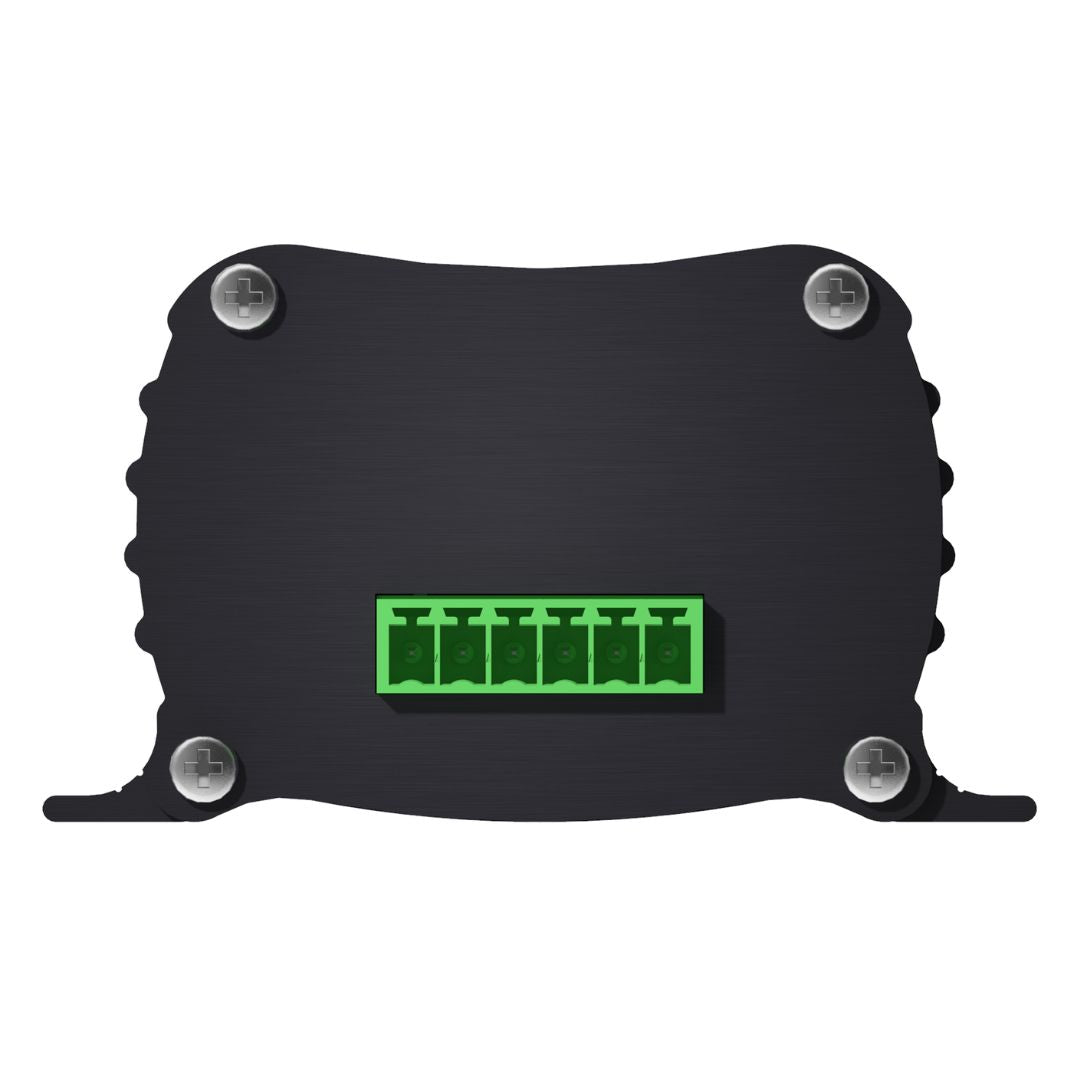

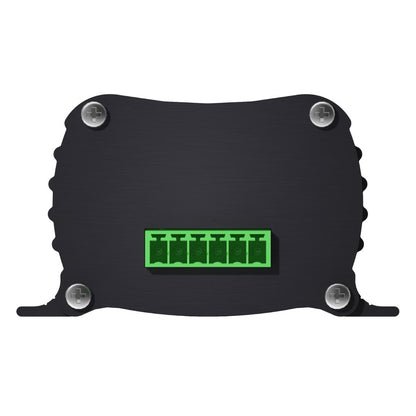

This unit combines professional-grade conversion with a rugged design, giving studios and broadcasters confidence in both sound quality and durability. With stereo AES3 inputs and outputs on secure terminal blocks, and a Neutrik EtherCon® port for Dante connectivity, it ensures rock-solid connections every time. It runs on Power over Ethernet, keeping cables to a minimum, and supports a wide range of sample rates up to 192kHz for clean, detailed sound.
Sonifex AVN-DIO08 Dante AES3 Terminal Block Stereo Input & Output Features
- Compact design built with strong aluminum housing
- Easy plug-and-play connection to a Dante network
- Reliable Neutrik connectors keep signals locked in place
- Runs on Power over Ethernet so no extra power cable is needed
- High-quality sound with wide dynamic range
- Simple to mount with side slots for secure placement
Sonifex AVN-DIO08 Dante AES3 Terminal Block Stereo Input & Output Specs
- AES3 stereo input supports up to 192kHz sample rates
- AES3 stereo output supports up to 96kHz sample rates
- Dante audio-over-IP supports PCM 16, 24, and 32 encoding
- Power over Ethernet 802.3af Class 0 with 0.44W to 12.94W range
- Typical power use 2W with max of 15.4W
- Dimensions 4.2in W x 2.9in D x 1.7in H
- Weight 0.44lbs
