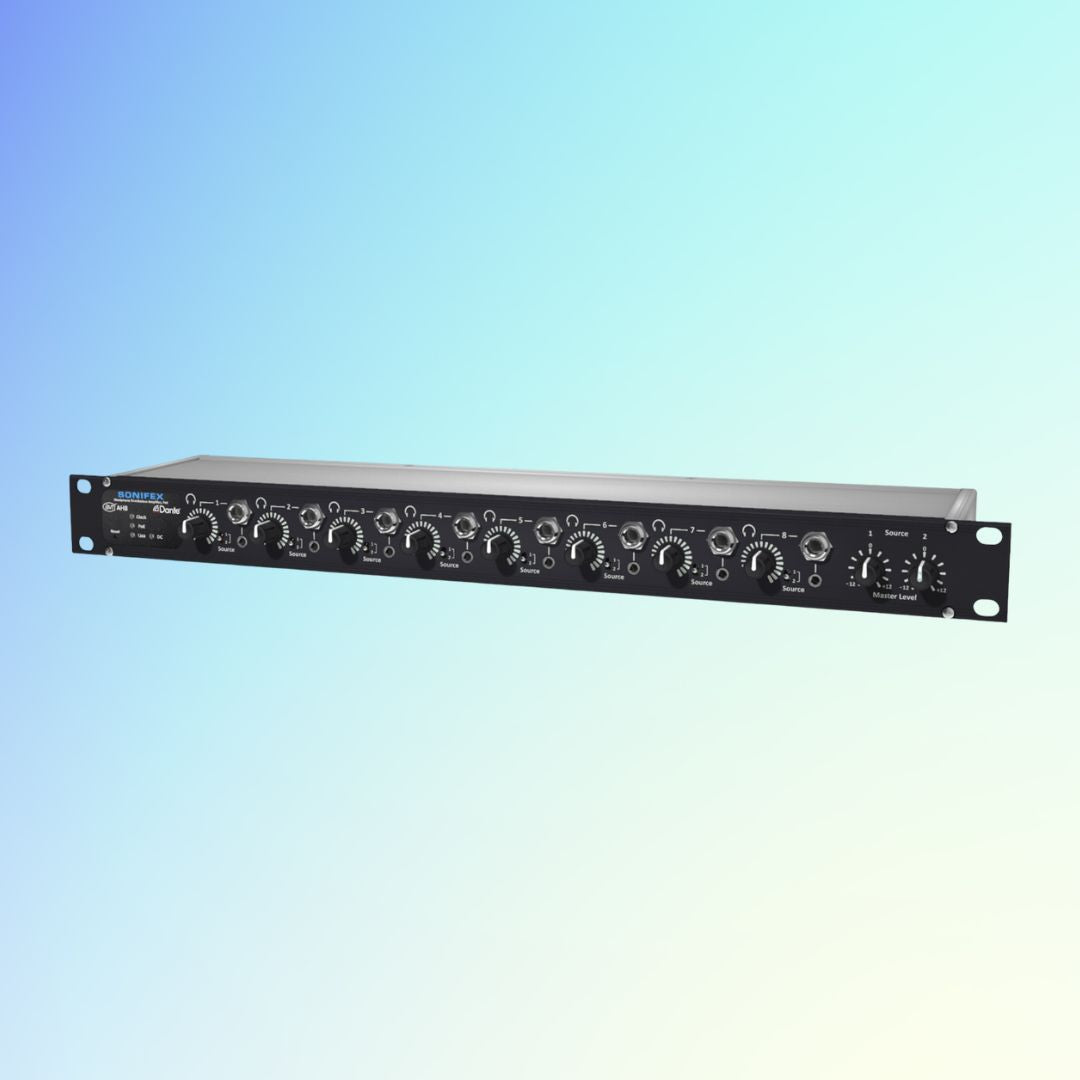

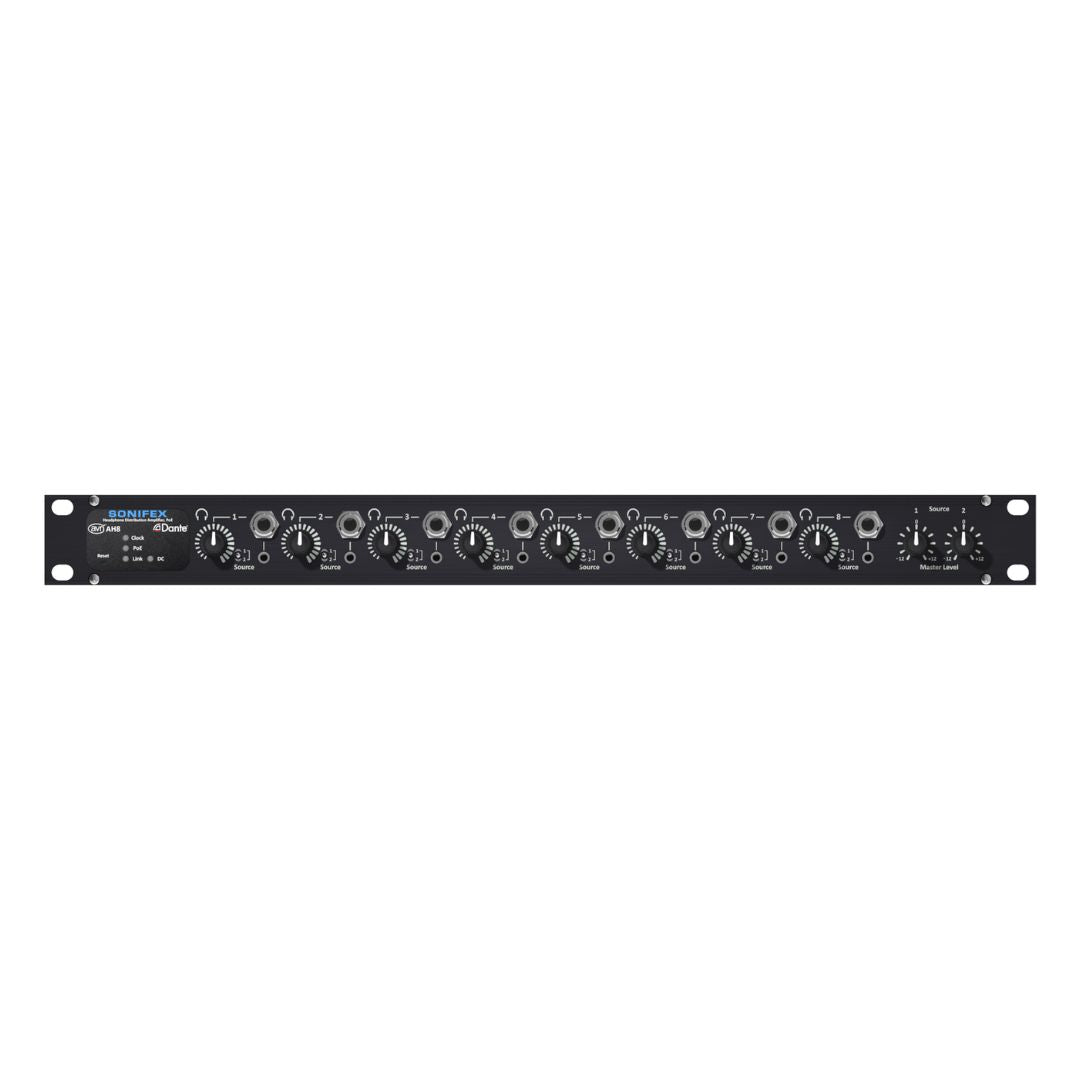

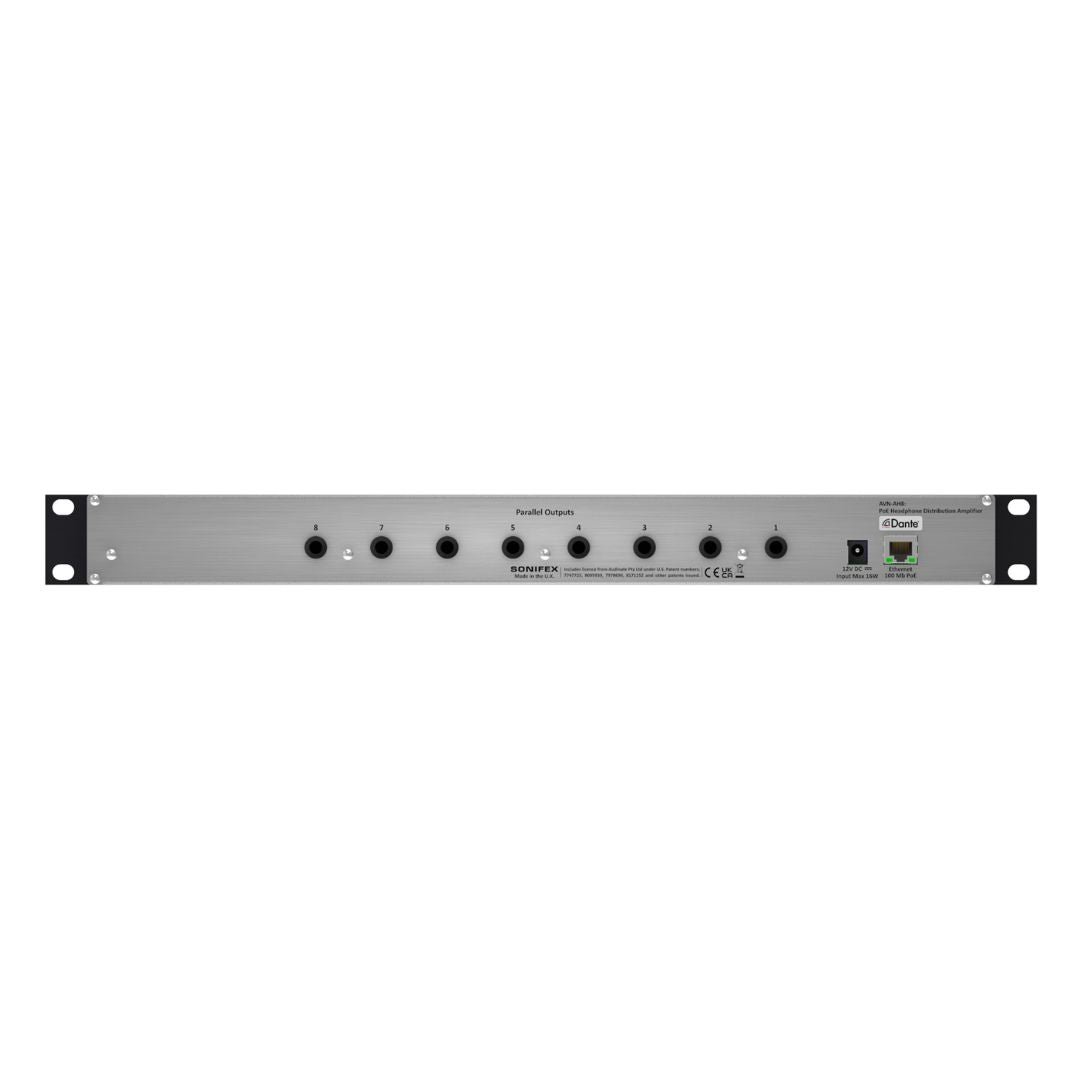

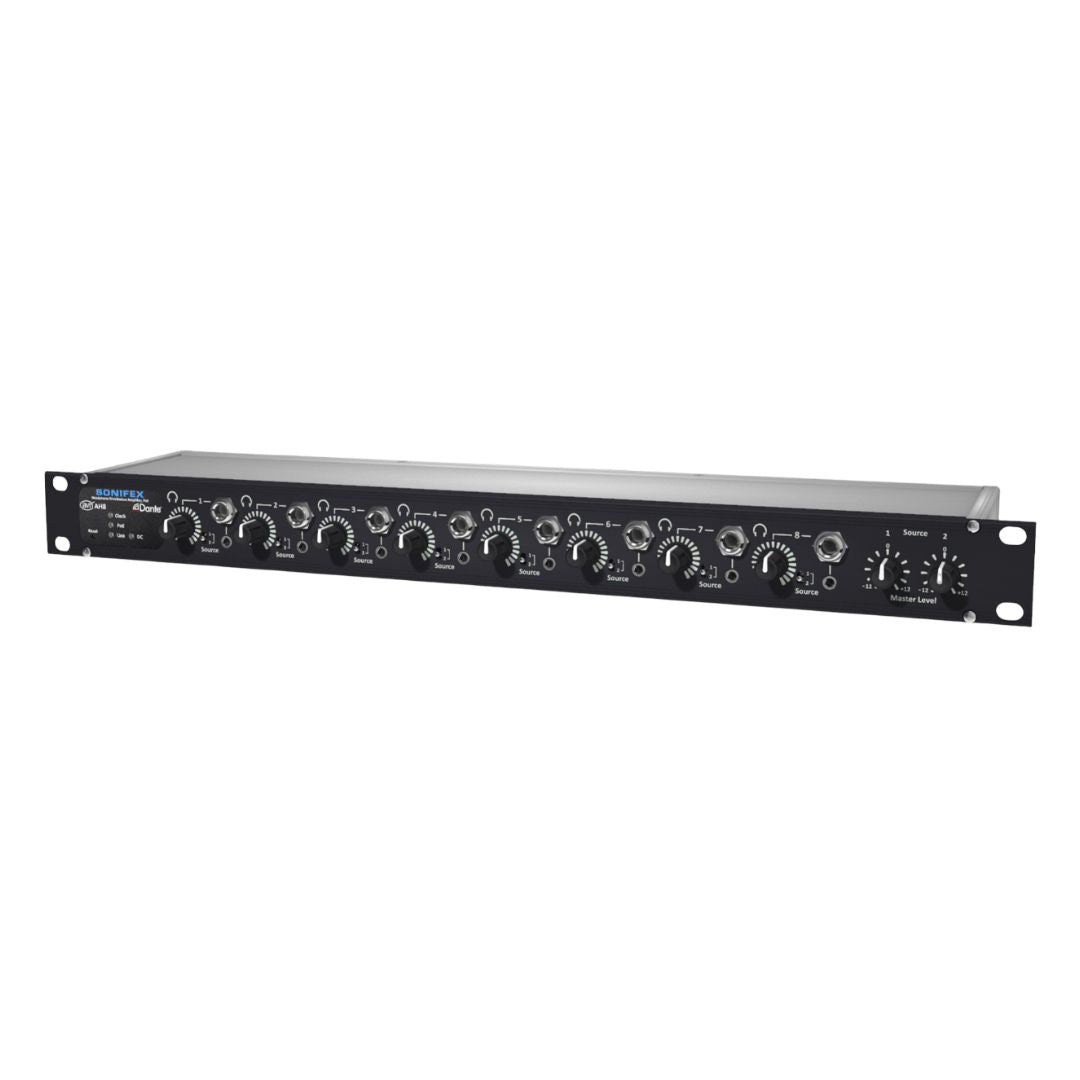

Sonifex AVN-AH8 8 Stereo Analog Headphone Outputs Dante Interface, PoE
The Sonifex AVN-AH8 8 Stereo Analog Headphone Outputs Dante Interface, PoE makes it easy to share two headphone mixes with up to eight people at once. It’s perfect for radio studios, podcasts, or live productions where everyone needs to hear the same thing clearly. Simple to use, this rack-mountable unit lets each listener control their own volume and choose between two audio sources with just a flip of a switch.
Sonifex AVN-AH8 8 Stereo Analog Headphone Outputs Dante Interface, PoE Review
This powerful 1U rack-mount unit connects directly to your Dante network and gives you eight headphone outputs, each with its own volume knob and input selector. It’s smartly designed for fast setup and clean audio distribution, whether you're in a busy studio or a broadcast booth. Each output supports both 1/4-inch and 3.5mm jacks, and the unit runs on either PoE or a 12V DC power supply. Built-in LEDs help keep things simple, letting you know everything's running smoothly.
Sonifex AVN-AH8 8 Stereo Analog Headphone Outputs Dante Interface, PoE Features
- Lets you plug in up to eight pairs of headphones
- Each person gets their own volume knob
- Choose between two different audio feeds
- Works with both large and small headphone jacks
- Slim 1U rack-mount design fits into tight spaces
- Runs on network power or optional DC supply
Sonifex AVN-AH8 8 Stereo Analog Headphone Outputs Dante Interface, PoE Specs
- Supports Dante and AES67 audio over IP with 100 Mbps Ethernet
- Powered by PoE (802.3af Class 0) or 12V DC input (2A min)
- Volume range from -80dB to 0dB, master level adjustable ±12dB
- Headphone outputs provide up to 150mW into 32–600Ω loads
- Frequency response from 20Hz to 20kHz with less than 0.07% distortion
- 1U rack size measures 19” W x 4.3” D x 1.7” H
- Weight: 3.1 lbs
