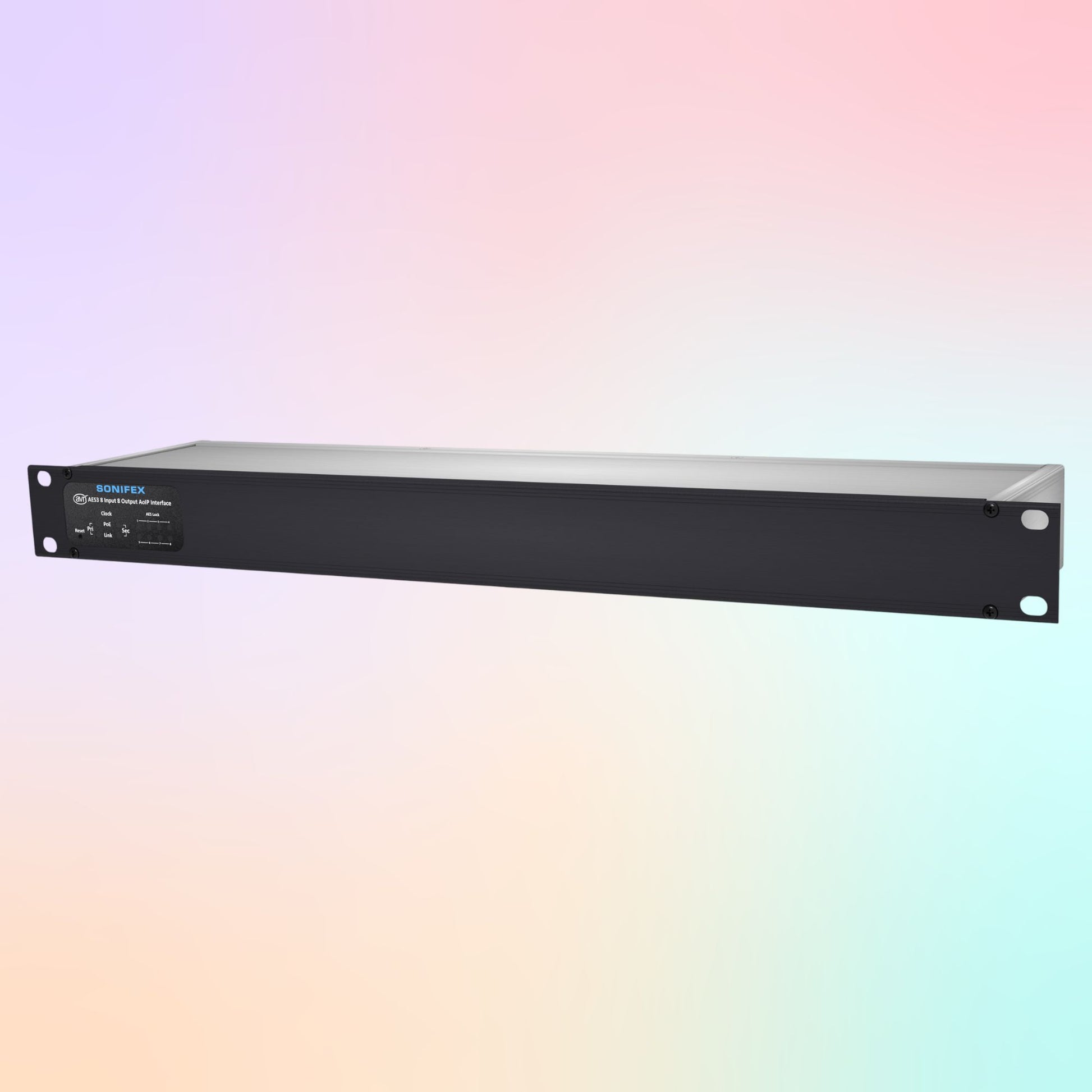

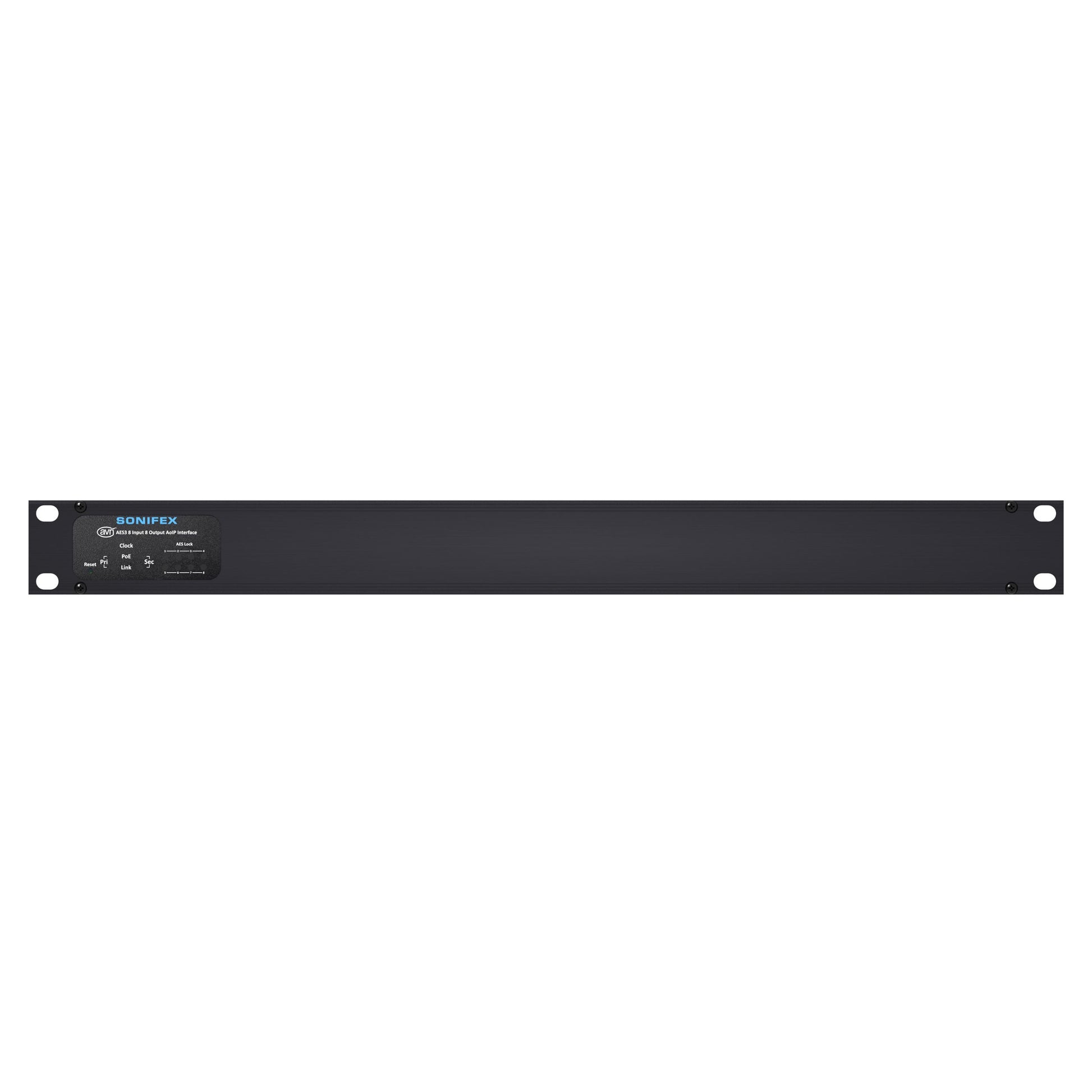

Sonifex AVN-AESIO8-RAV 8-AES3 I/O XLR RAVENNA Interface
The Sonifex AVN-AESIO8-RAV 8-AES3 I/O XLR RAVENNA Interface makes it easy to connect traditional audio gear to modern network systems. It is built for studios, live sound, and broadcast setups where reliability matters. With a strong rackmount design and flexible connection options, it keeps audio flowing smoothly without complicated setup.
Sonifex AVN-AESIO8-RAV 8-AES3 I/O XLR RAVENNA Interface Review
This interface delivers dependable performance for professional audio networks. It offers 8 AES3 inputs and 8 AES3 outputs while supporting RAVENNA and AES67 systems. Dual Ethernet ports allow for either backup protection or simple linking between devices. It supports high quality audio up to 192 kHz and includes sample rate conversion for incoming signals. Power can come from PoE or USB-C, giving installers more flexibility. Status lights on the front panel make it easy to check signal, sync, and power at a glance, while ANEMAN software handles routing and setup.
Sonifex AVN-AESIO8-RAV 8-AES3 I/O XLR RAVENNA Interface Features
- Connects older digital gear to modern network systems
- Dual network ports for stable and reliable audio flow
- Front panel lights show status at a glance
- Flexible power through PoE or USB-C
- Rugged 1U rackmount design for studio or live use
- Simple software control for fast setup and routing
Sonifex AVN-AESIO8-RAV 8-AES3 I/O XLR RAVENNA Interface Specs

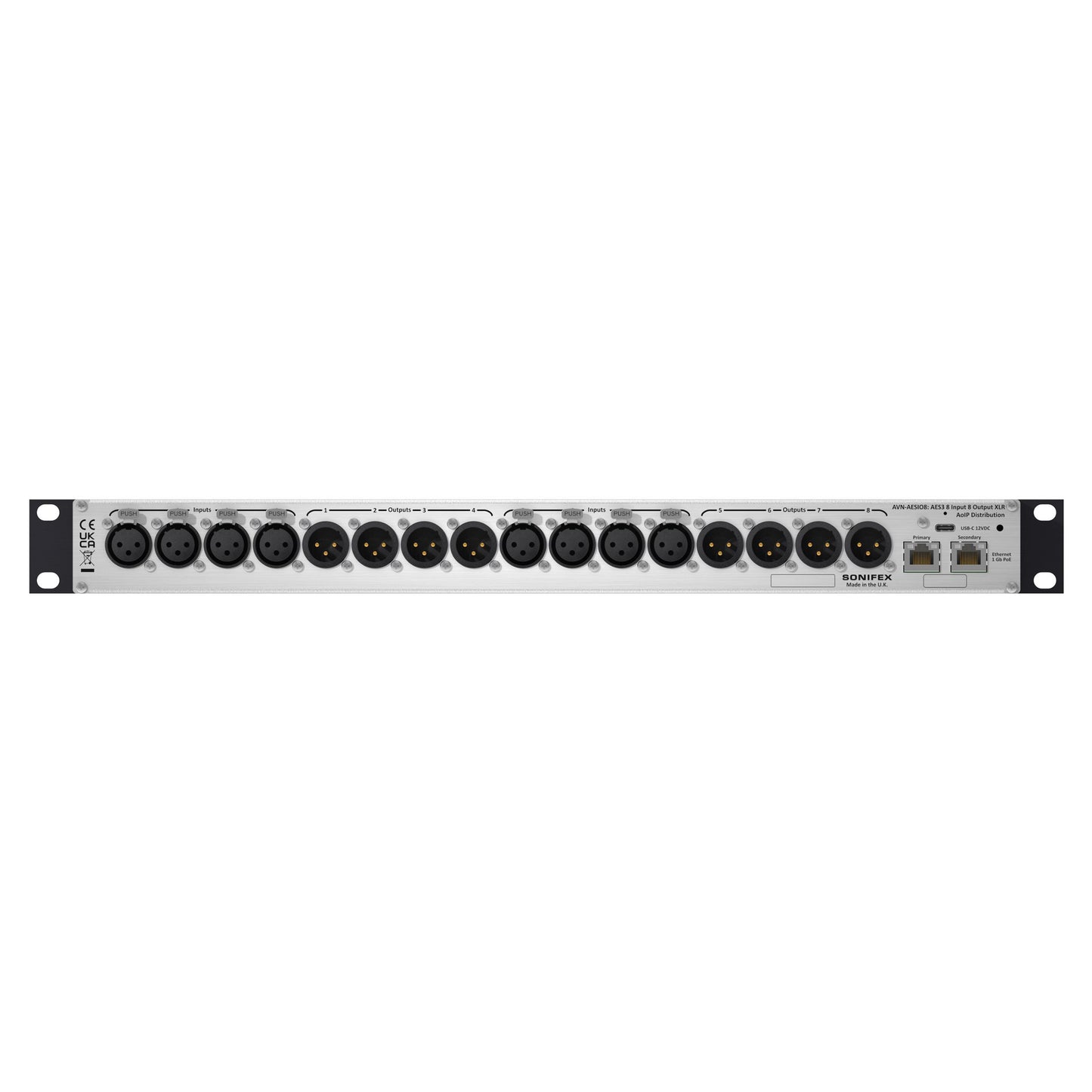

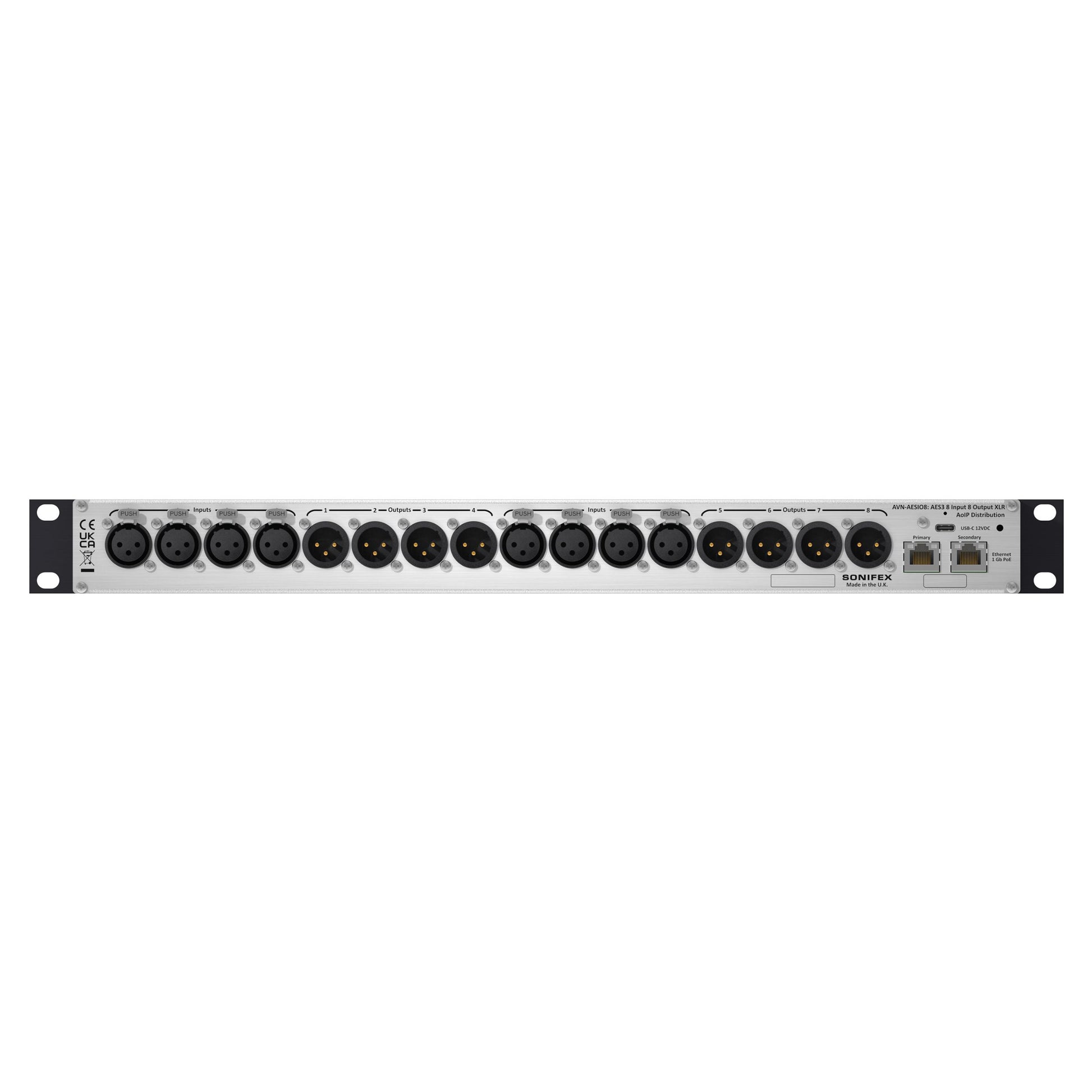

- 8 AES3 stereo inputs and 8 AES3 stereo outputs on XLR connectors
- Sample rates from 44.1 kHz to 192 kHz
- 16 input and 16 output network channels
- Dual 1 Gb/s Ethernet ports with redundant or switched modes
- PoE powered using IEEE 802.3af standard, typical 6 W use
- USB-C backup power input option
- 1U rackmount chassis, 19 in wide, 4.3 in deep, 1.7 in high
- Weight 2.2 lb
