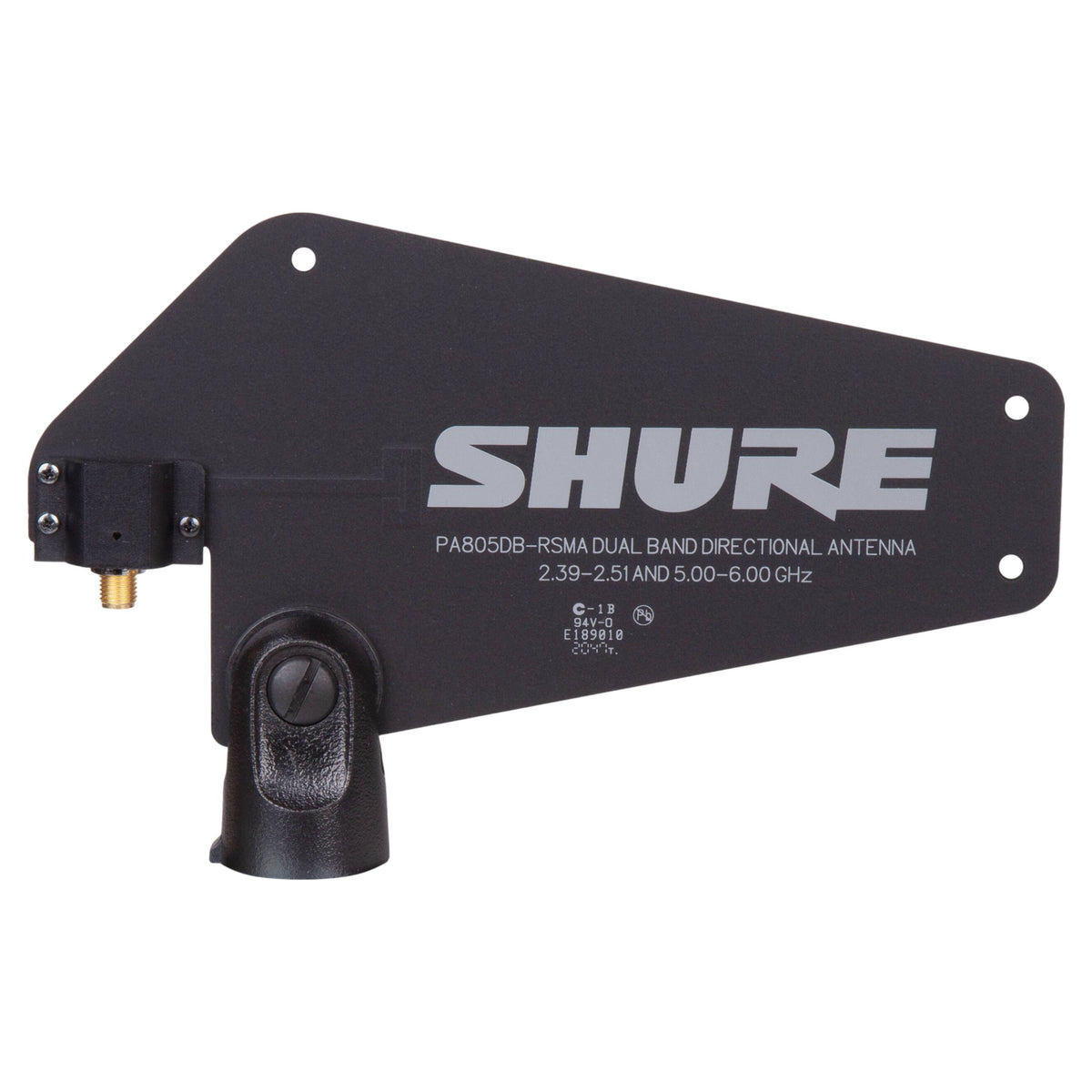

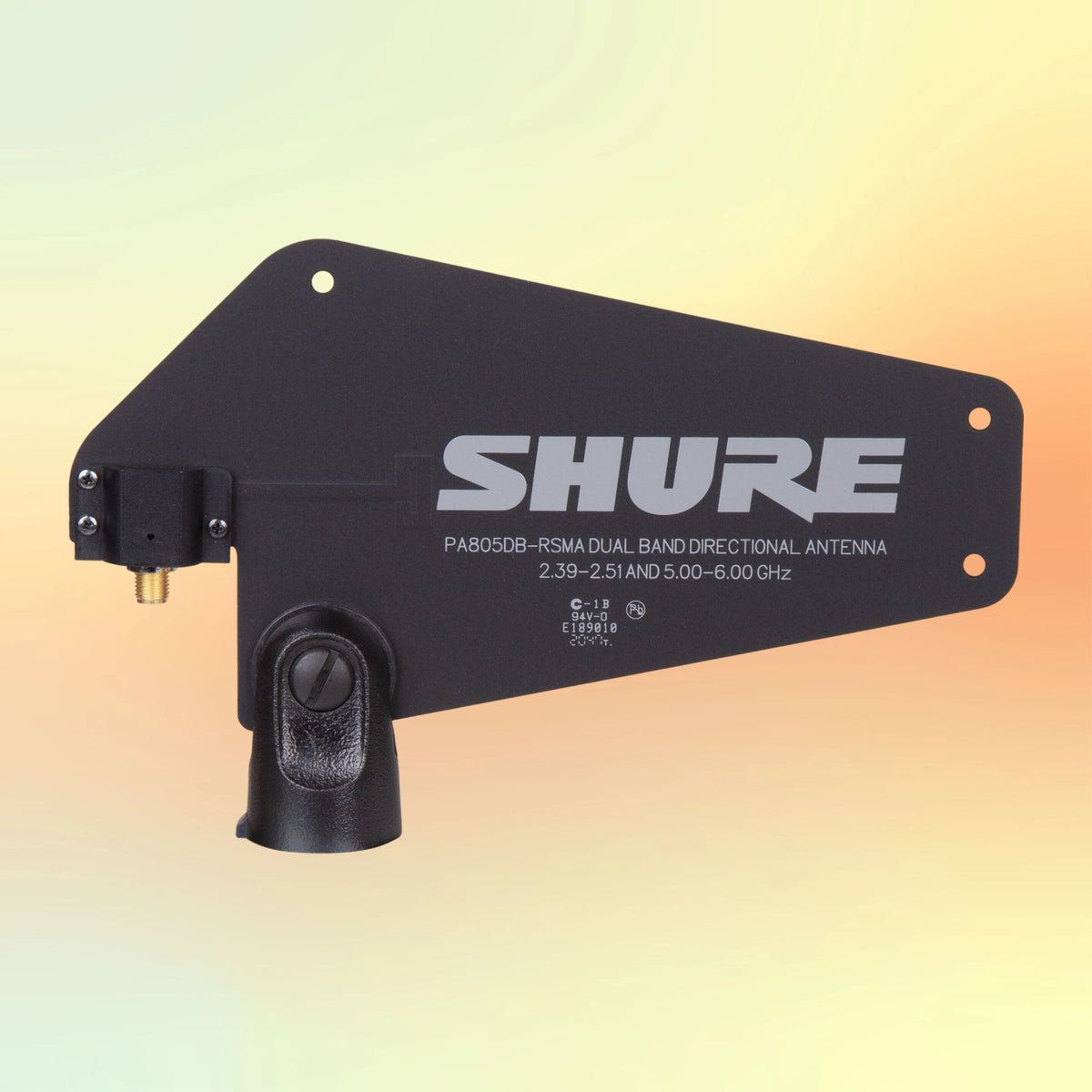

Shure PA805DB-RSMA Passive Dual Band Directional Antenna
Get more reliable wireless reception with the Shure PA805DB-RSMA Passive Dual Band Directional Antenna. Designed for Shure GLX-D+ wireless systems, this antenna helps extend your range and reduce unwanted interference. It works across both 2.4 GHz and 5.8 GHz frequency bands, making it a great choice for live performances, venues, and professional audio setups. With its flexible mounting options and included cables, you can position the antenna for a clearer connection between your wireless gear and transmitters.
Shure PA805DB-RSMA Passive Dual Band Directional Antenna Review
The Shure PA805DB-RSMA uses a log periodic dipole array to focus reception in a specific direction. It offers 8 dBi of gain and a 24 dB front to back ratio, helping improve reception while reducing signals and interference from behind the antenna. It supports operating frequencies from 2050 to 5850 MHz and connects through a 50 ohm reverse SMA interface. The included 10 foot cable gives you more freedom to place the antenna where it has a clearer line of sight to your transmitters. Its swivel mounting bracket also makes installation on a microphone stand or wall simple.
Shure PA805DB-RSMA Passive Dual Band Directional Antenna Features
- Improve wireless reception and extend range for compatible Shure GLX-D+ systems.
- Work across both 2.4 GHz and 5.8 GHz frequency bands for flexible wireless performance.
- Focus reception toward your transmitters while reducing unwanted signals from behind.
- Get up to 8 dB of improved reception with a directional antenna design.
- Mount the antenna on a microphone stand or wall using the included swivel bracket.
- Position the antenna more freely with the included 10 foot connection cable.
Shure PA805DB-RSMA Passive Dual Band Directional Antenna Specs
- Antenna type is a log periodic dipole array
- Operating frequency range is 2050 to 5850 MHz
- Antenna gain is 8 dBi
- Horizontal beamwidth is 100 degrees
- Polarization supports horizontal and vertical
- Front to back ratio is 24 dB
- Connector is 1x coaxial RP-SMA male
- Impedance is 50 ohms
- Dimensions are 4.1 x 6.5 x 1.1 inches
- Weight is 2.5 oz
- Included cable length is 10 feet
- Compatible with Shure GLXD4R+ receivers and GLX-D+ frequency manager
