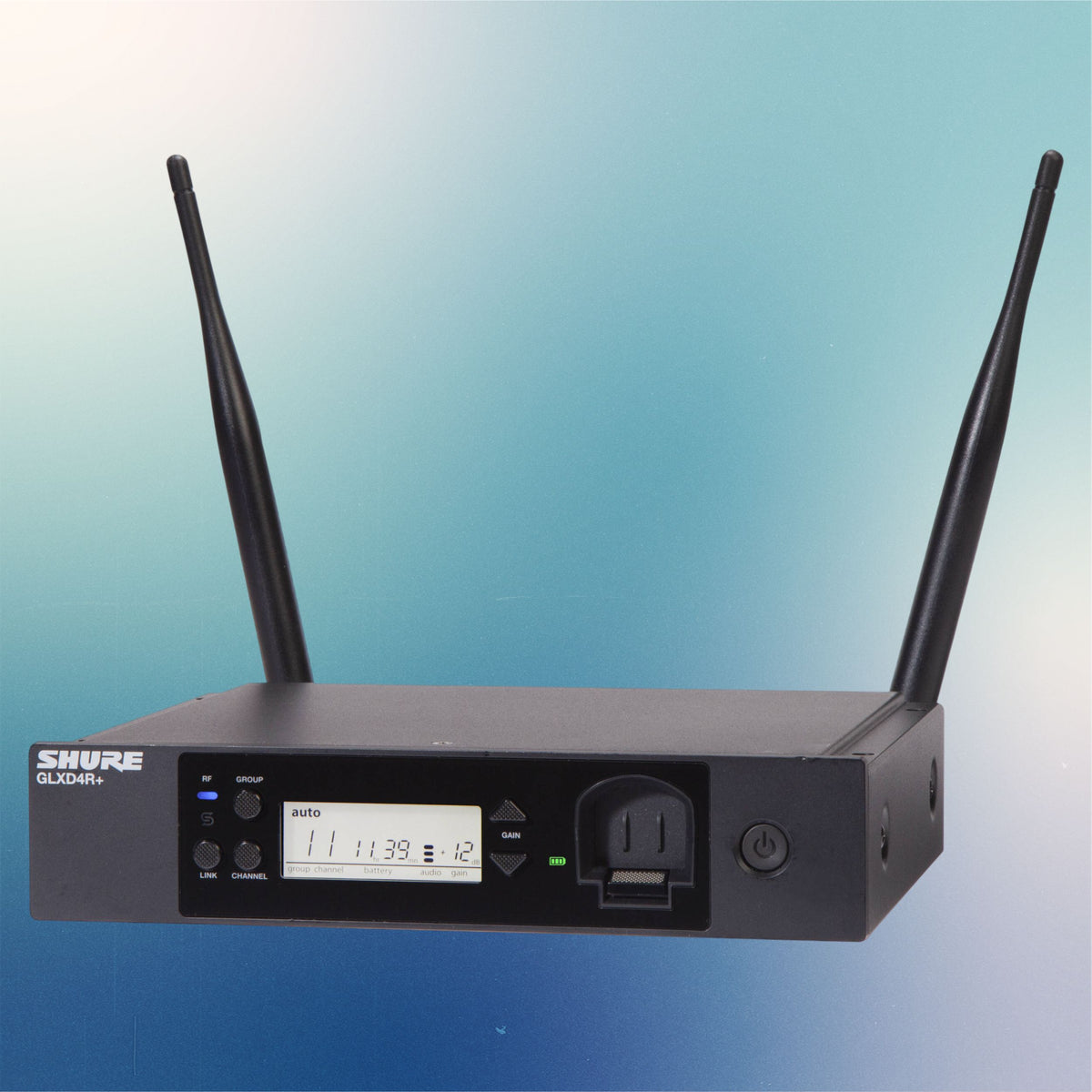

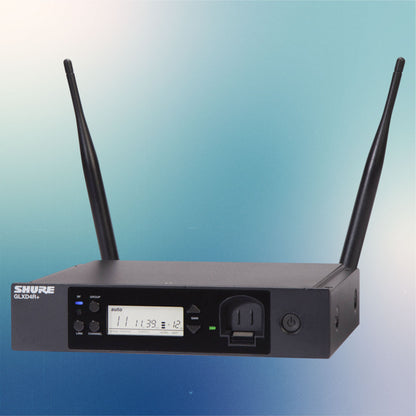

Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver

The Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver makes wireless audio simple and reliable for live performances, presentations, and events. It automatically searches two frequency bands to find a clear connection, helping you avoid unwanted dropouts. Its compact metal design fits neatly into a rack, while the clear display keeps important information easy to see. If you need dependable wireless audio for your venue or setup, this receiver is a solid choice.

Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Review

The Shure GLXD4R+ features dual-band digital wireless technology that operates at 2.4 GHz and 5.8 GHz, with automatic frequency scanning to help maintain a stable connection. True diversity reception uses two antennas and independent receiver modules to reduce signal dropouts, while backup frequencies allow the system to switch channels when interference occurs. It delivers a 20 Hz to 20 kHz frequency response and up to 120 dB of dynamic range. The receiver supports compatible Shure GLX-D+ transmitters, offers balanced XLR and 1/4-inch outputs, and includes rackmount hardware for easy installation.

Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Features

• Dual-band wireless technology automatically searches 2.4 GHz and 5.8 GHz frequencies to find a cleaner connection.
• True diversity reception uses two antennas to help reduce signal dropouts during performances and presentations.

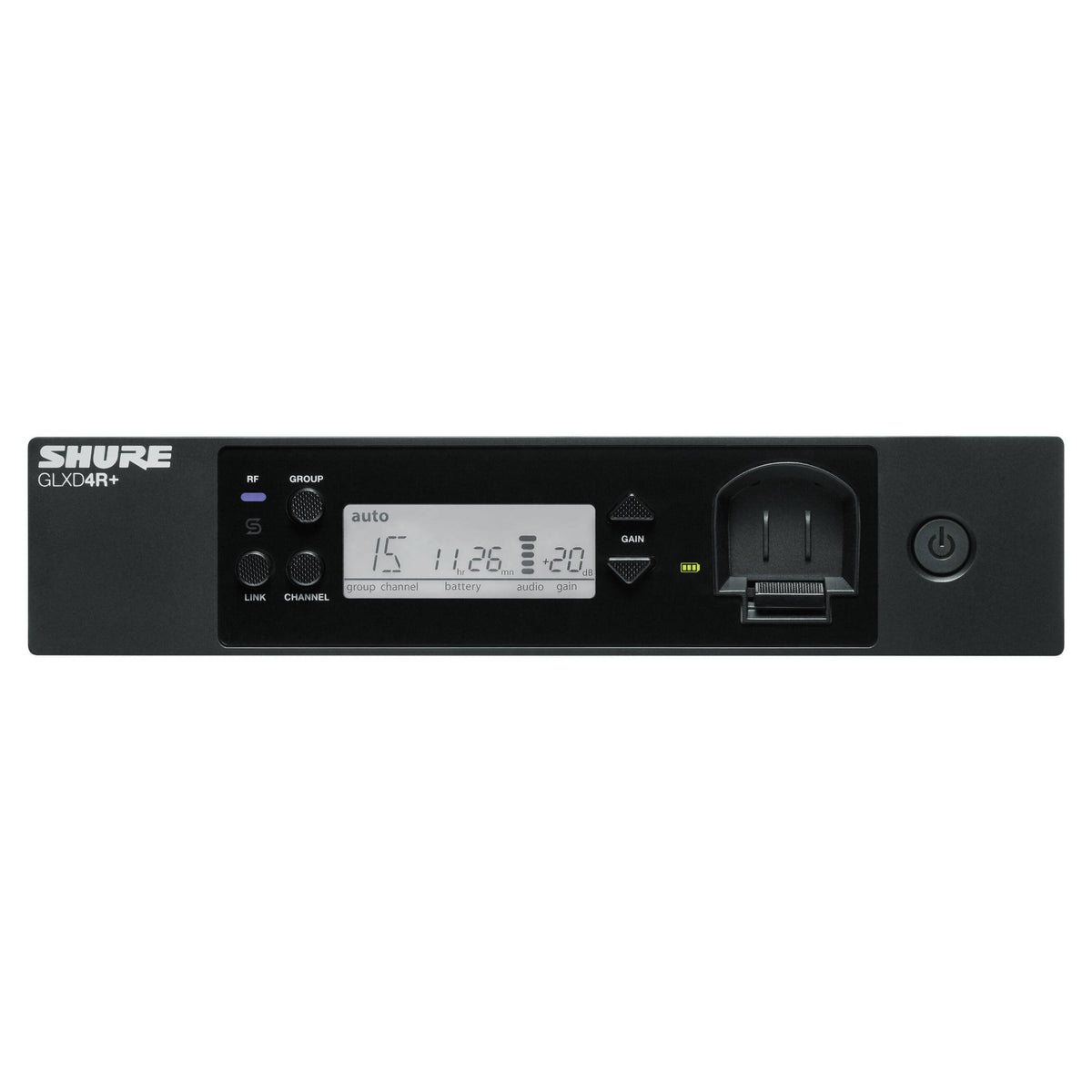

• The clear backlit display shows useful information, including the connected transmitter's remaining battery time.
• The compact metal half-rack design saves space and includes hardware for rack installation.
• Front-panel charging lets you recharge a compatible Shure SB904 battery without needing a separate charger.
• Expand your setup to support up to 11 microphone channels with a compatible frequency manager and additional equipment.

Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Specs

• Wireless technology of digital 2.4 GHz and 5.8 GHz
• Frequency range of 2400 to 2483.5 MHz and 5725 to 5850 MHz
• Maximum operating range of 100 feet line of sight
• Frequency response of 20 Hz to 20 kHz, depending on the microphone
• Dynamic range of 120 dB

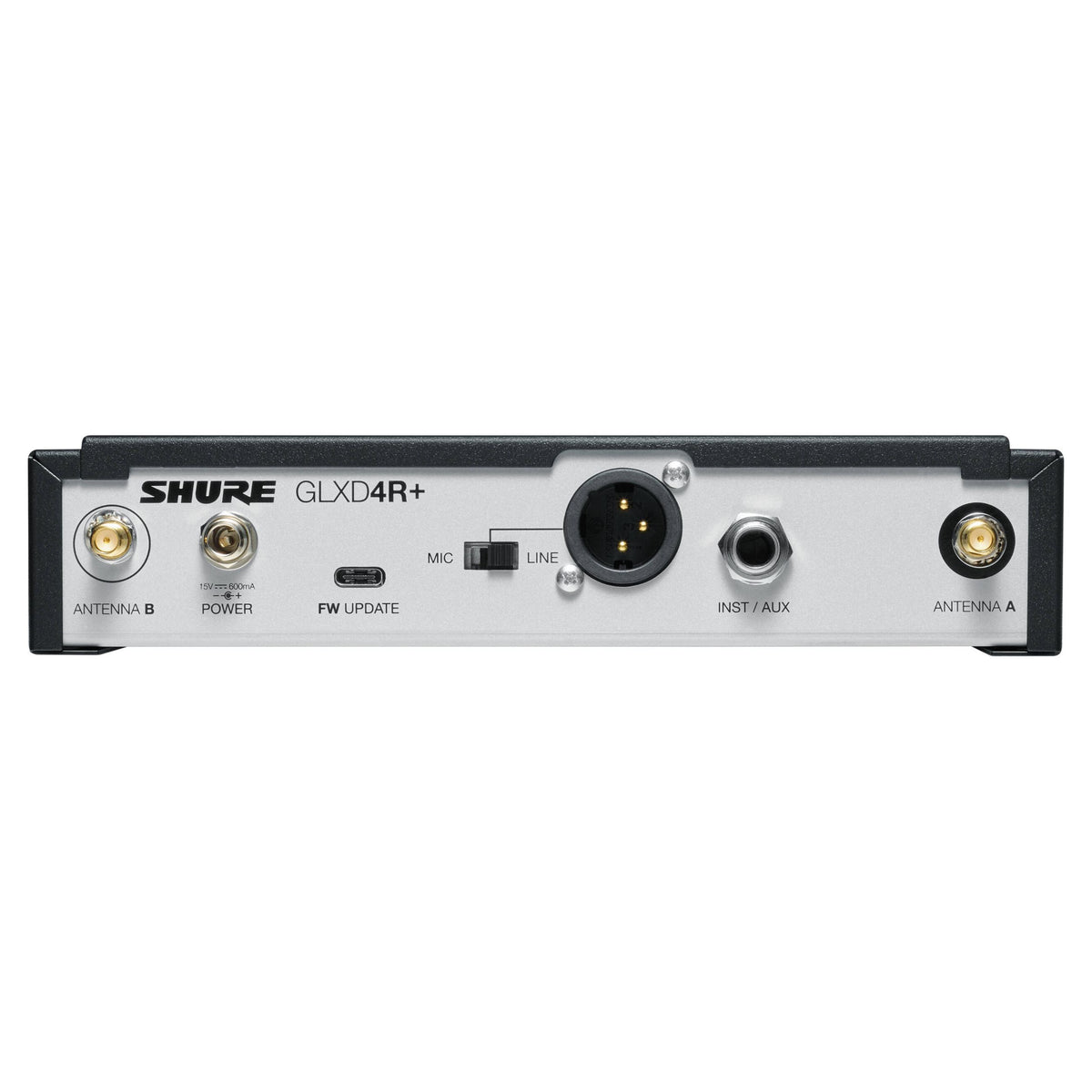

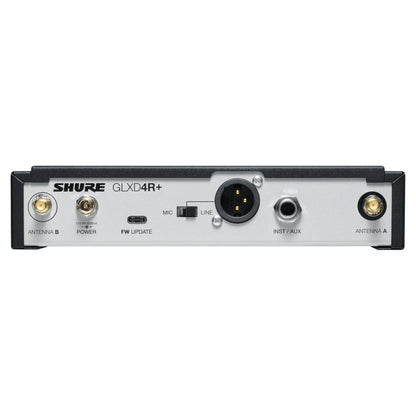

• Audio outputs of one balanced 3-pin XLR mic/line output and one balanced 1/4-inch TRS output
• Gain range of -18 to +42 dB in 1 dB steps
• Antennas of two removable half-wave dipole antennas
• Power requirements of 100 to 240V AC, 50/60 Hz
• Power adapter output of 14.5 to 17V DC at 600 mA
• Dimensions of 7.8 x 6.4 x 1.7 inches without antennas
• Weight of 1.91 lbs
• Housing material of steel
• Mounting options of tabletop or 1U half-rack installation
• Compatibility with Shure GLX-D+ bodypack and handheld transmitters
• Included accessories of AC/DC power adapter and rackmount hardware
• Transmitters and microphones sold separately
