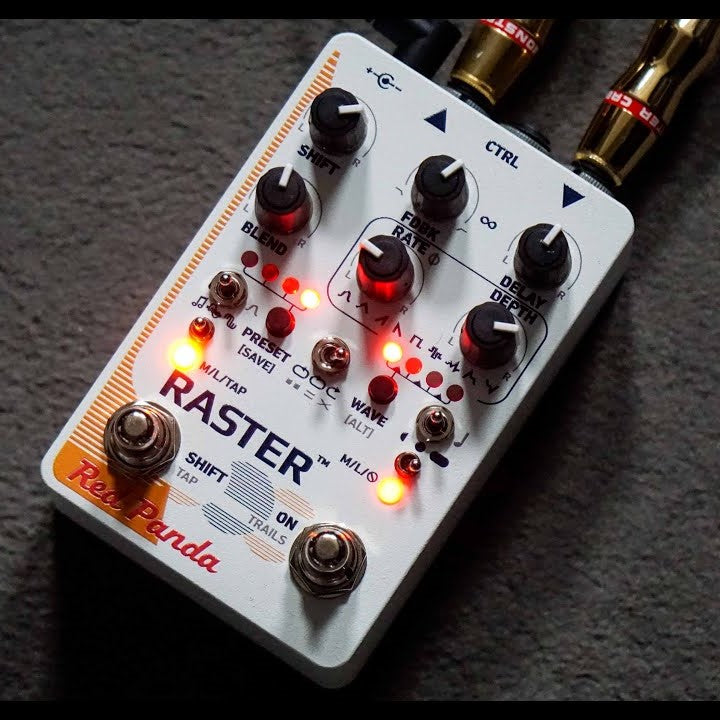

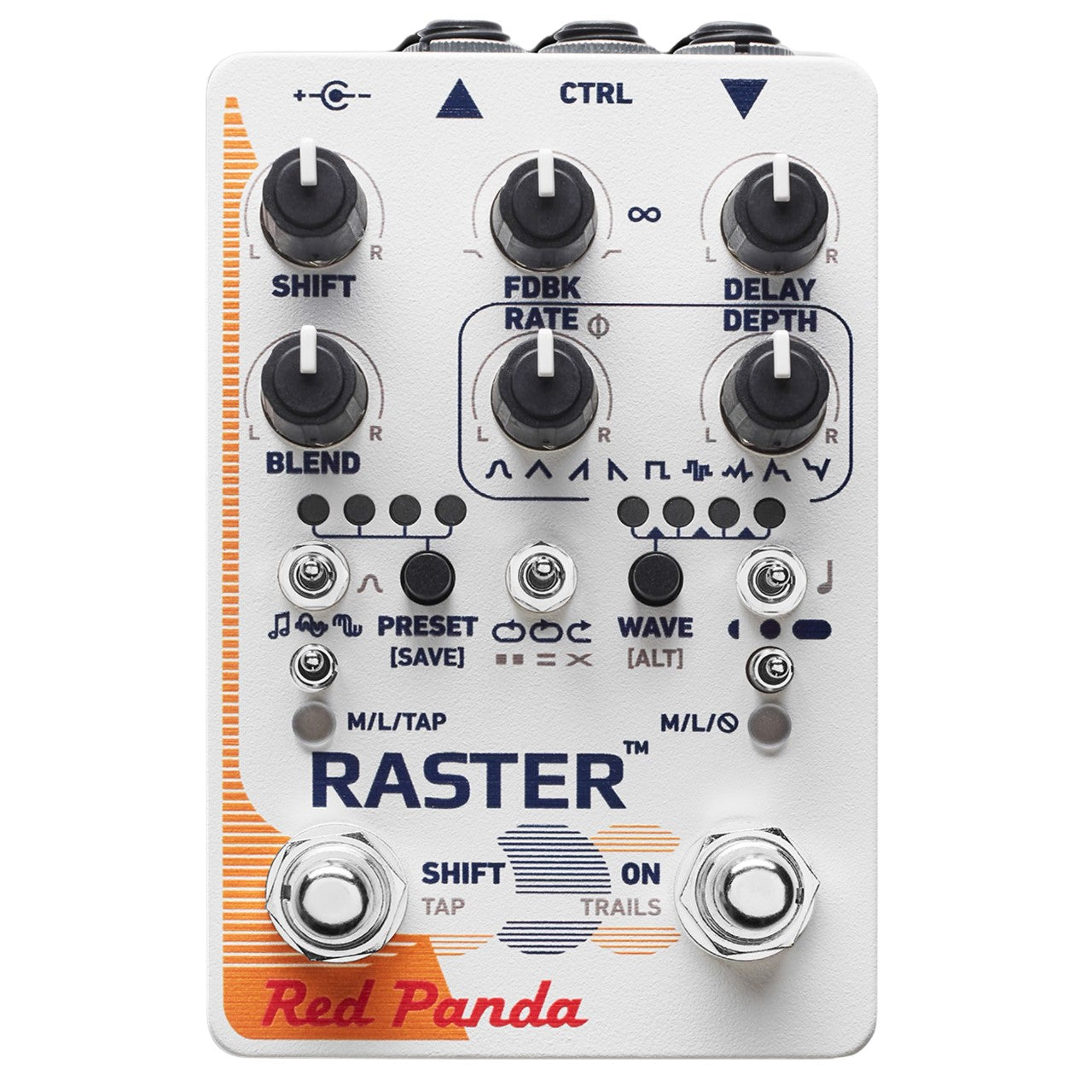

Red Panda Raster 2 Pedal

The Red Panda Raster 2 arms your pedalboard with up to 1,600ms of stereo delay and offers a wide range of adjustable parameters. It supports parallel, series, and ping-pong configurations, along with dedicated left/right controls for impressive stereo effects. This delay pedal allows you to create anything from analog-style echoes to crystal-clear digital repeats.

Red Panda Raster 2 Pedal Review

You can also pitch shift, detune, and frequency shift your repeats for endless sonic possibilities. The Raster's seven modulation waveforms can be assigned to delay time, pitch shift, or amplitude for a variety of captivating sounds. Envelope and reverse envelope parameters are also available. The Raster comes with four front-panel presets, expandable to 127 via MIDI. Additionally, you can access additional parameters and more through a web-based editor. The Raster also features full stereo I/O, tap tempo, a multi-function control port, and full MIDI implementation. If you're a dedicated delay enthusiast looking for a digital delay pedal with extensive options, the Red Panda Raster 2 offers great value and more.

Red Panda Raster 2 Pedal Features

• 1,600ms of stereo delay, divided into 3 ranges for maximum precision
• Left and right delay times can be a set ratio or offset for widening effects
• Repeats can be arranged in parallel, series, or in a ping-pong configuration
• Dedicated left/right controls for reality-bending stereo effects
• Tone control unleashes everything from analog-style echoes to crystal-clear digital repeats
• Onboard pitch shifting in either direction up to ±12 semitones
• Detune setting yields micro-pitch-style chorused repeats
• Left and right channels can be pitch shifted by the same amount, by a ratio, or in opposite directions
• Combine phase and frequency shifting for evolving repeats, dissonant harmonies, and barber pole flanging
• 7 modulation waveforms can be assigned to delay time, pitch shift, or amplitude
• 2 random waveforms give rise to glitchy pitch jumps, wow and flutter, and broken tape-deck sounds
• Envelope and reverse envelope parameters enable dynamic flanging and pitch-bent delays
• Stereo controls for tweaking the pedal's modulation and phase between channels
• 4 front-panel presets; expandible to 127 via MIDI
• Web-based editor for editing presets and accessing hidden parameters
• Soft touch bypass switch includes selectable momentary, latching, or mute output functions
• Footswitch can be set to momentary, latching, or assignable to tap tempo
• Multi-function port assignable to an expression pedal, remote switch, remote tap, or MIDI
• Full MIDI implementation with additional parameters via USB or TRS

Red Panda Raster 2 Pedal Specs

• Analog/Digital: Digital
• Presets: 4 x User (127 via MIDI)
• Effects: Pitch Shift, Frequency Shift, Modulation
• Max Delay Time: 1600ms
• Tap Tempo: Yes
• Inputs: 1 x 1/4" TS/TRS
• Outputs: 1 x 1/4" TS/TRS
• MIDI I/O: In/USB
• Other I/O: 1 x 1/4" TRS (expression, control voltage, tap tempo, MIDI in, remote switch)
• USB: 1 x Mini-B
• Bypass Switching: Analog Buffered, DSP, Analog+FX Level, Kill Dry, Auto
• Software: Red Panda Web Editor
• Power Source: 9V DC power supply (sold separately)
• Power Usage: 250mA

Red Panda Raster 2 Pedal Dimensions

• Dimensions: 4.75 x 3.05 x 2.5"
• Weight: 0.88 lbs
