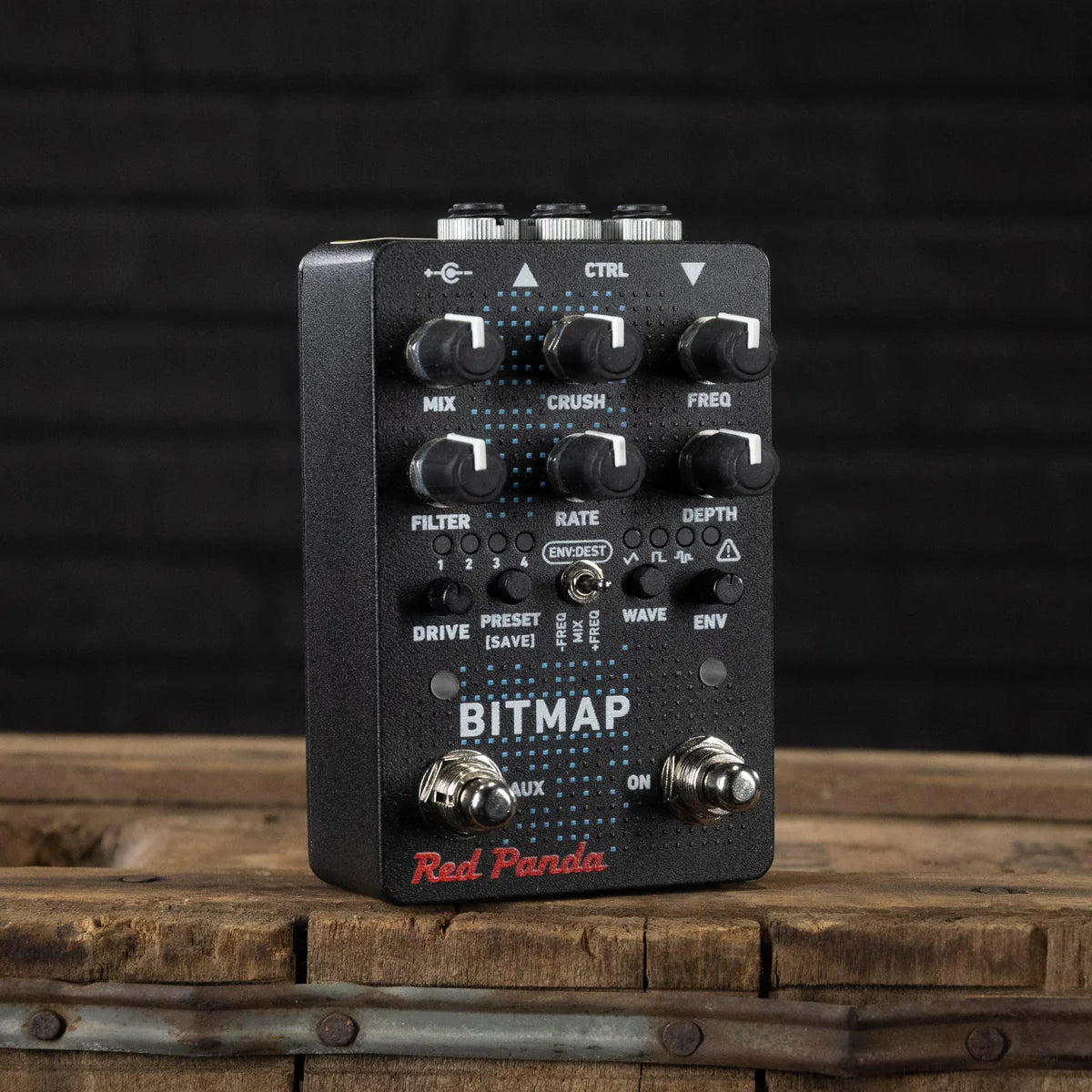

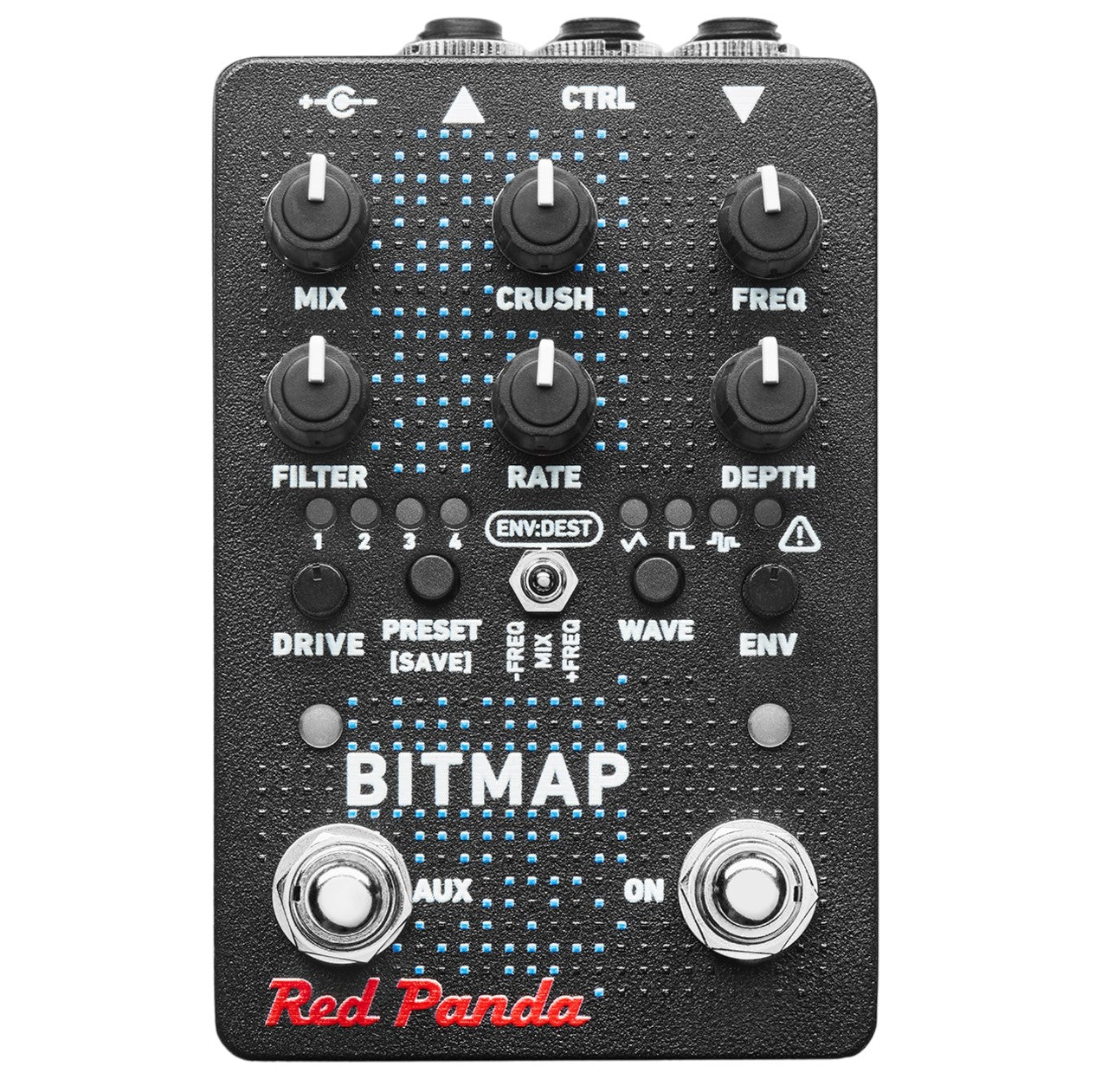

Red Panda Bitmap 2 Pedal

Red Panda Bitmap 2 Pedal

Regular price $279.65
Regular price $329.00 Sale price $279.65
$49.35 off Sold out

Order Today Reserve yours now! Ready to ship soon.

Ships today December 04. Order within

View full details

Red Panda Bitmap 2 Pedal

Introducing the Red Panda Bitmap 2 - a versatile pedal that allows you to explore a wide range of digitized sounds. Its user-friendly controls offer endless sound-shaping possibilities, and you can save your favorite settings as presets for quick recall. The Crush control lets you adjust the bit depth from 24 bits down to 1 bit, while the Freq control allows you to change the sampling rate from 48,000Hz to 110Hz. You can also modify the LFO modulation rate and depth with the Rate and Depth knobs, and adjust the 4-pole filter's cutoff frequency with the Filter knob.

Red Panda Bitmap 2 Pedal Review

The Bitmap 2 features selectable waveforms, including triangle, square, and random shapes, as well as wave shaping, wave folding, and wave window options. It is compatible with various instruments, such as guitars, basses, and synths, and the Drive control allows you to adjust the input gain, making it suitable for guitarists using different pickups and synth players seeking a unique sound. Whether you're a guitarist, bassist, or synth player, the Red Panda Bitmap 2 is sure to ignite your creativity and inspire your next musical endeavors.

Red Panda Bitmap 2 Pedal Features

  • Stereo bitcrusher with fractional bit reduction and sample rate modulation
  • Crush control takes you from 24 bits to 1 bit
  • Freq control adjusts sampling rate from 48,000Hz–110Hz
  • Filter adjusts the cutoff of the 4-pole filter
  • Wave button cycles between triangle wave, square wave, random, wave folder, wave window, and wave shaper options
  • Rate and Depth knobs control LFO modulation rate and depth, respectively
  • Mix knob dials in your wet/dry mix
  • Drive control accommodates single-coil and humbucking pickups as well as line-level signals
  • Soft-touch bypass switch with configurable momentary or latching operation
  • Aux footswitch assignable as tap tempo or preset selection
  • Assignable CTRL port for expression pedal, MIDI port, or remote switch/tap
  • 4 onboard user presets expandable to 127 via MIDI
  • Web-based editor accesses hidden parameters and edits presets

Red Panda Bitmap 2 Pedal Specs

  • Analog/Digital: Digital
  • Effects: Crush, Filter, LFO, Drive
  • Presets: 4 x User (127 via MIDI)
  • Inputs: 1 x 1/4" TRS
  • Outputs: 1 x 1/4" TRS
  • MIDI I/O: In/USB
  • USB: 1 x Mini-B
  • Other I/O: 1 x 1/4" TRS (expression, control voltage, tap tempo, MIDI in, remote switch)
  • Bypass Switching: Analog Buffered
  • Software: Red Panda Web Editor
  • Power Source: 9V DC power supply (sold separately)
  • Power Usage: 250mA

Red Panda Bitmap 2 Pedal Dimensions

  • Dimensions: 4.75 x 3.05 x 2.5"
  • Weight: 0.88 lbs
