Mackie MainStream Live Streaming and Video Capture Interface

The Mackie MainStream Live Streaming and Video Capture Interface brings your audio, video, and stream controls together in one easy-to-use device. Connect your microphone, gaming console, cameras, and other gear without cluttering your setup. Six customizable buttons put important controls right at your fingertips, making it easy to trigger effects, switch scenes, and interact with your audience. Whether you're gaming, podcasting, or creating live content, MainStream helps you deliver a more professional stream with less hassle.

Mackie MainStream Live Streaming and Video Capture Interface Review

The Mackie MainStream Live Streaming and Video Capture Interface combines a USB audio interface, HDMI capture card, and stream controller in one compact unit. It features a combo XLR/TRS microphone input with up to 60 dB of gain, +48V phantom power, direct monitoring, and dedicated headphone and headset connections. The HDMI input supports video capture up to 2K at 60 fps, while HDMI passthrough supports up to 4K at 60 fps. It also includes two USB-C hub connections for additional devices. With six programmable SMART Pads and Mackie Matrix software for Mac and Windows, you can customize audio routing, trigger samples, and manage multiple streaming sources.

Mackie MainStream Live Streaming and Video Capture Interface Features

• Bring your audio, video, and streaming controls together in one compact device.
• Connect gaming consoles, cameras, and other video sources through HDMI.
• Enjoy smooth gameplay with 4K at 60 fps HDMI passthrough.
• Customize six SMART Pads to trigger samples, switch scenes, and control your stream.
• Connect extra cameras, microphones, and USB devices using the two USB-C hub ports.

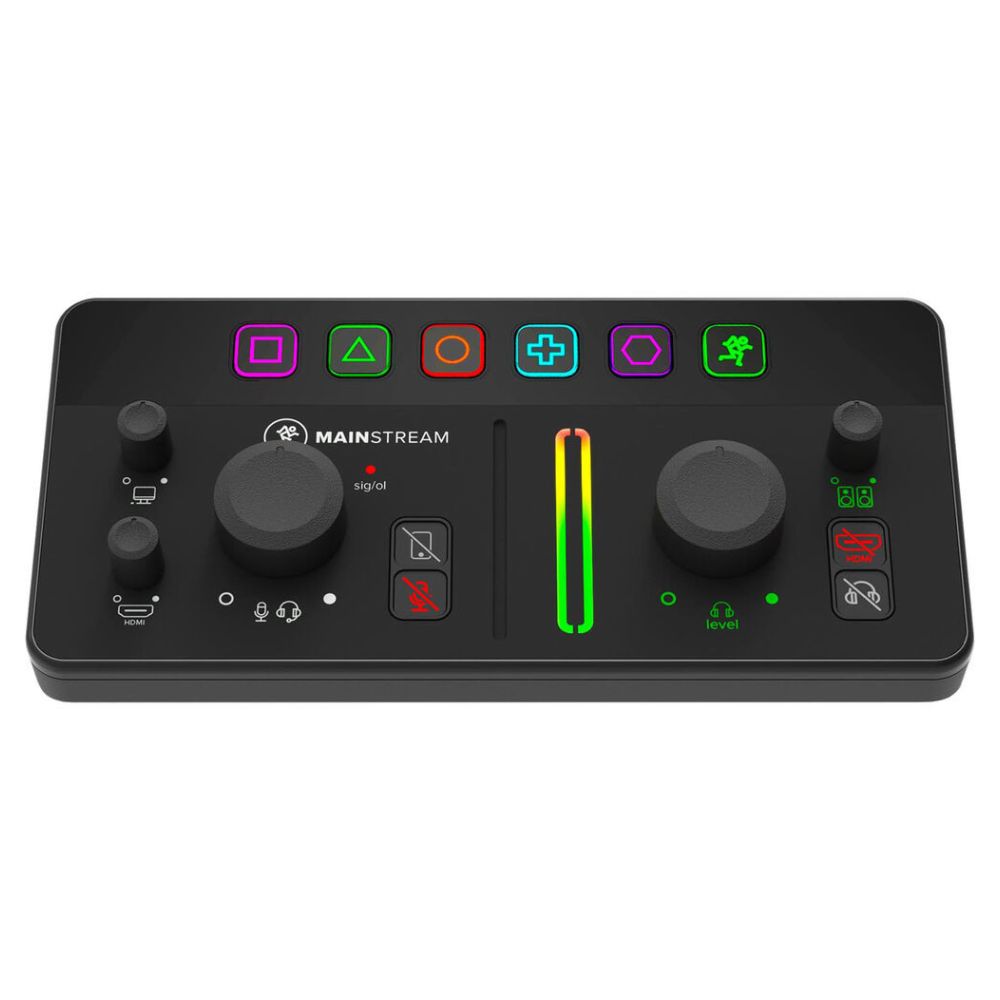

• Adjust microphone, headphone, and audio levels with easy-to-reach physical controls.

Mackie MainStream Live Streaming and Video Capture Interface Specs

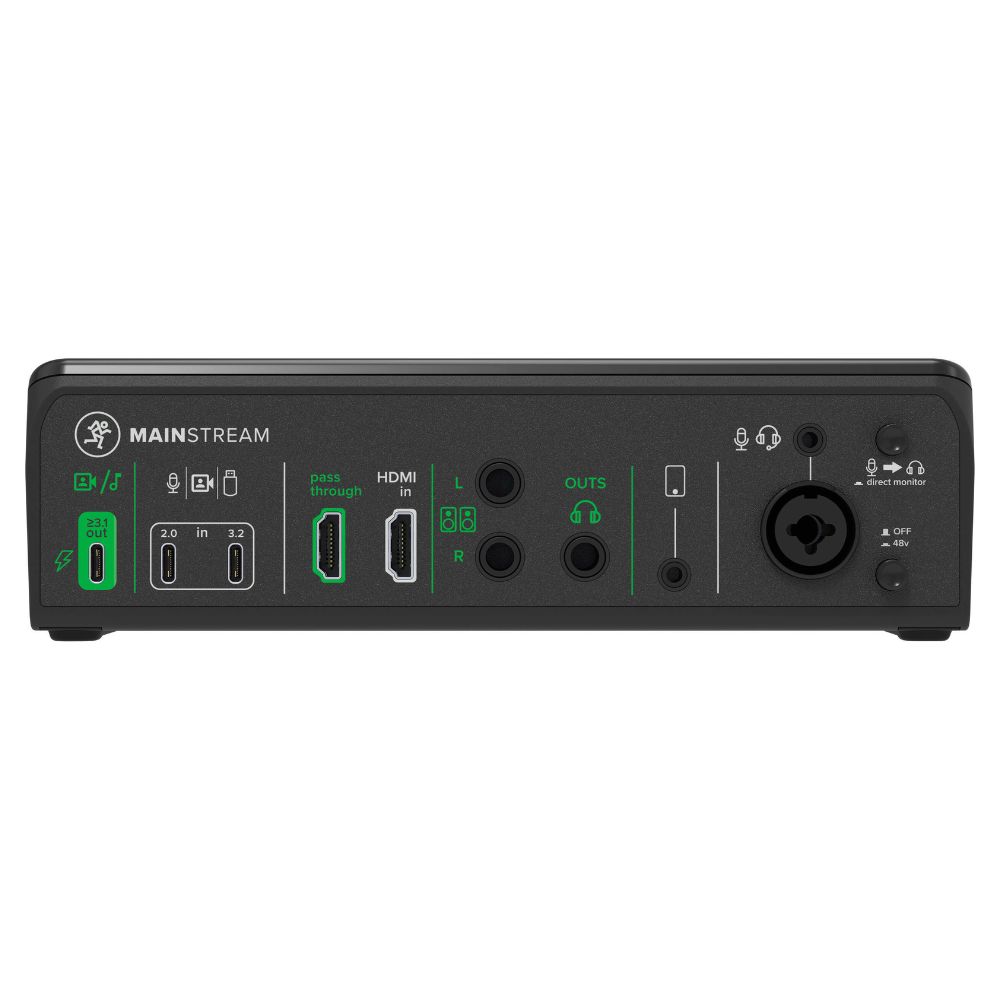

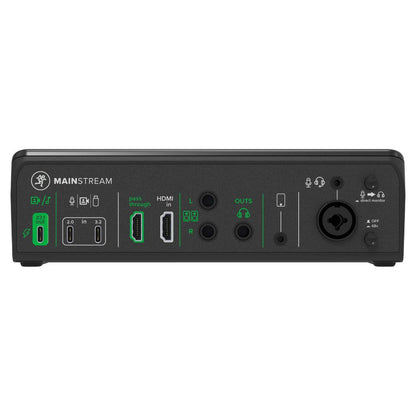

• 2 inputs and 2 outputs
• 24-bit audio resolution with a 48 kHz sample rate
• 1 combo XLR/TRS microphone and line input
• Up to 60 dB of microphone gain
• +48V phantom power
• 1 3.5 mm TRS auxiliary input
• 1 3.5 mm TRRS headset input and output
• 1 3.5 mm TRS headphone output
• 2 1/4-inch TRS monitor outputs
• 2 USB-C hub connections
• 1 USB-C host connection
• HDMI capture up to 2K at 60 fps
• HDMI passthrough up to 4K at 60 fps
• USB bus-powered operation
• Compatible with macOS and Windows
• Dimensions 8.4 x 3.7 x 2.4 inches
• Weight 1.3 lbs
