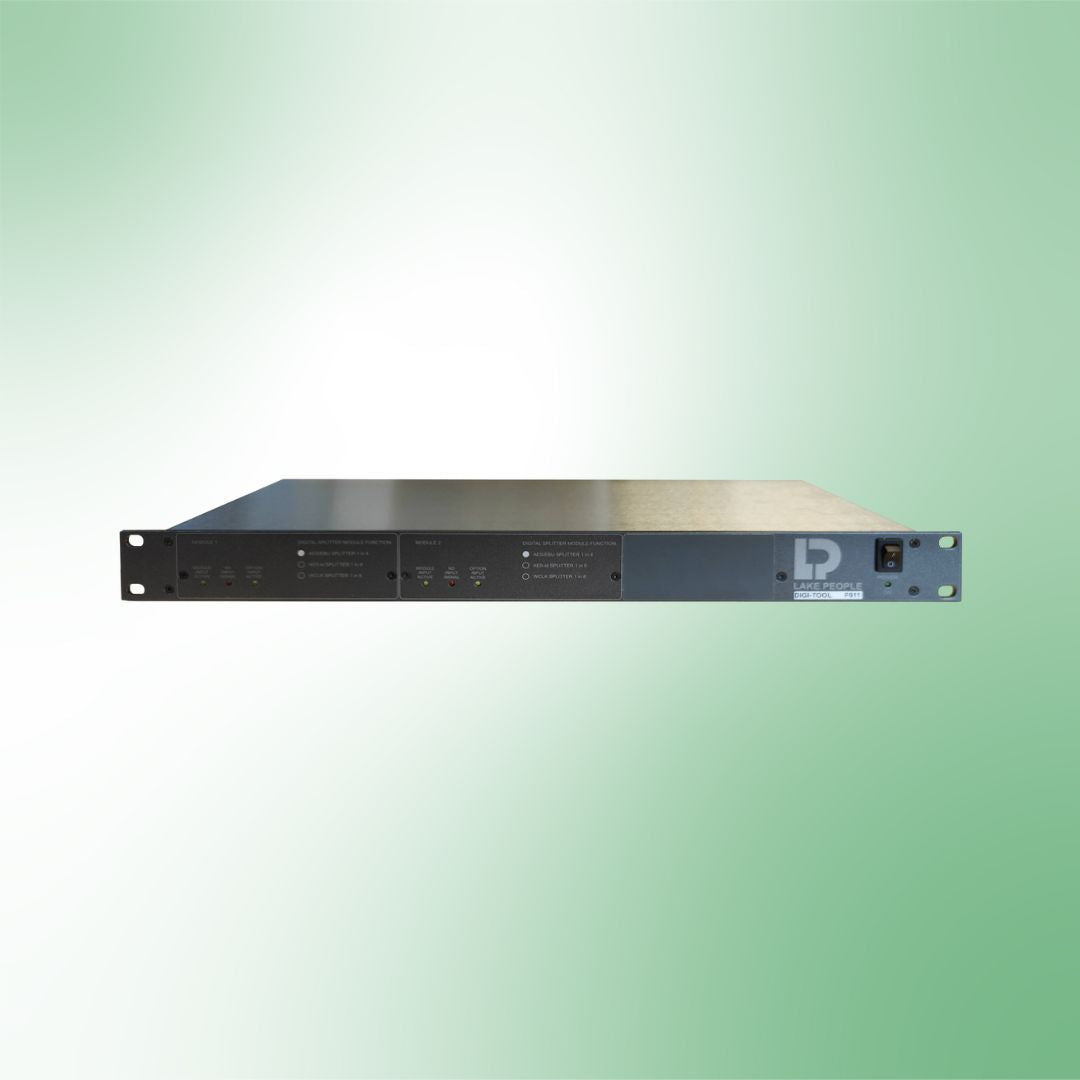

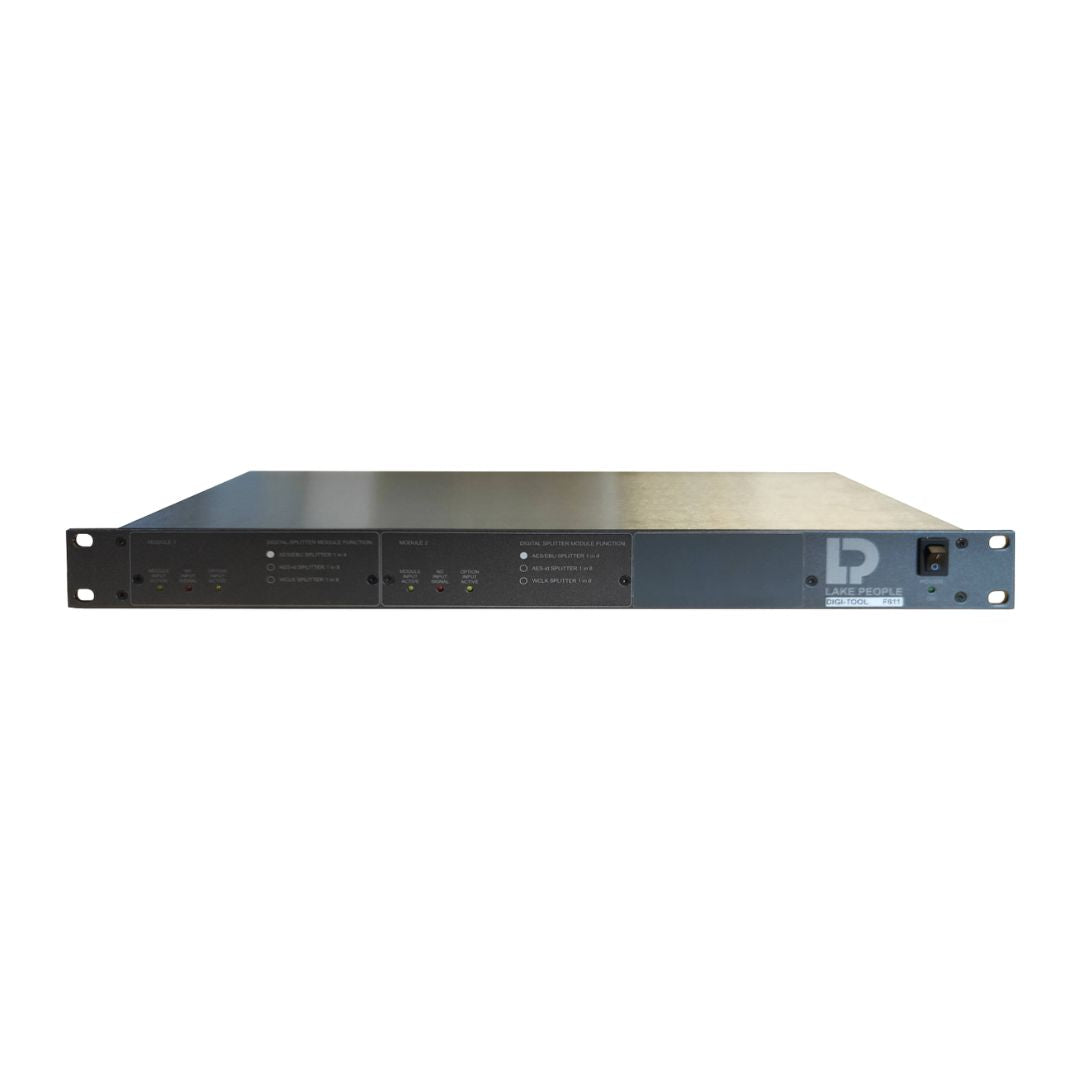

Lake People DIGI-TOOL F611 AES/EBU Splitter
Need a reliable way to split digital audio signals? The Lake People DIGI-TOOL F611 AES/EBU Splitter is built to handle the job with rock-solid stability and top-notch sound quality. Whether you're working in a studio or live setup, this compact, sturdy unit makes sure your signals stay clear and strong—even over long cable runs. It's simple, effective, and designed to just work.
Lake People DIGI-TOOL F611 AES/EBU Splitter Review
The DIGI-TOOL F611 features two identical modules, each with one input and four outputs, giving you a total of eight balanced AES/EBU outputs. It's built for demanding environments, thanks to transformer-balanced I/O, high output voltage for long cable runs, and auto-regeneration of weak signals. With optional MULTI-SYNC capabilities and built-in sample rate generation, it’s ready for serious digital routing tasks in broadcast, studio, or installation settings.
Lake People DIGI-TOOL F611 AES/EBU Splitter Features
- Splits one signal into four with no loss in quality
- Handles two separate signals at once or one signal to eight outputs
- Built tough in a stainless steel rack-mount case
- Regenerates weak or poor input signals automatically
- Easy plug-and-play setup with auto power mode
- Optional sync unit lets you control timing and sample rate
Lake People DIGI-TOOL F611 AES/EBU Splitter Specs

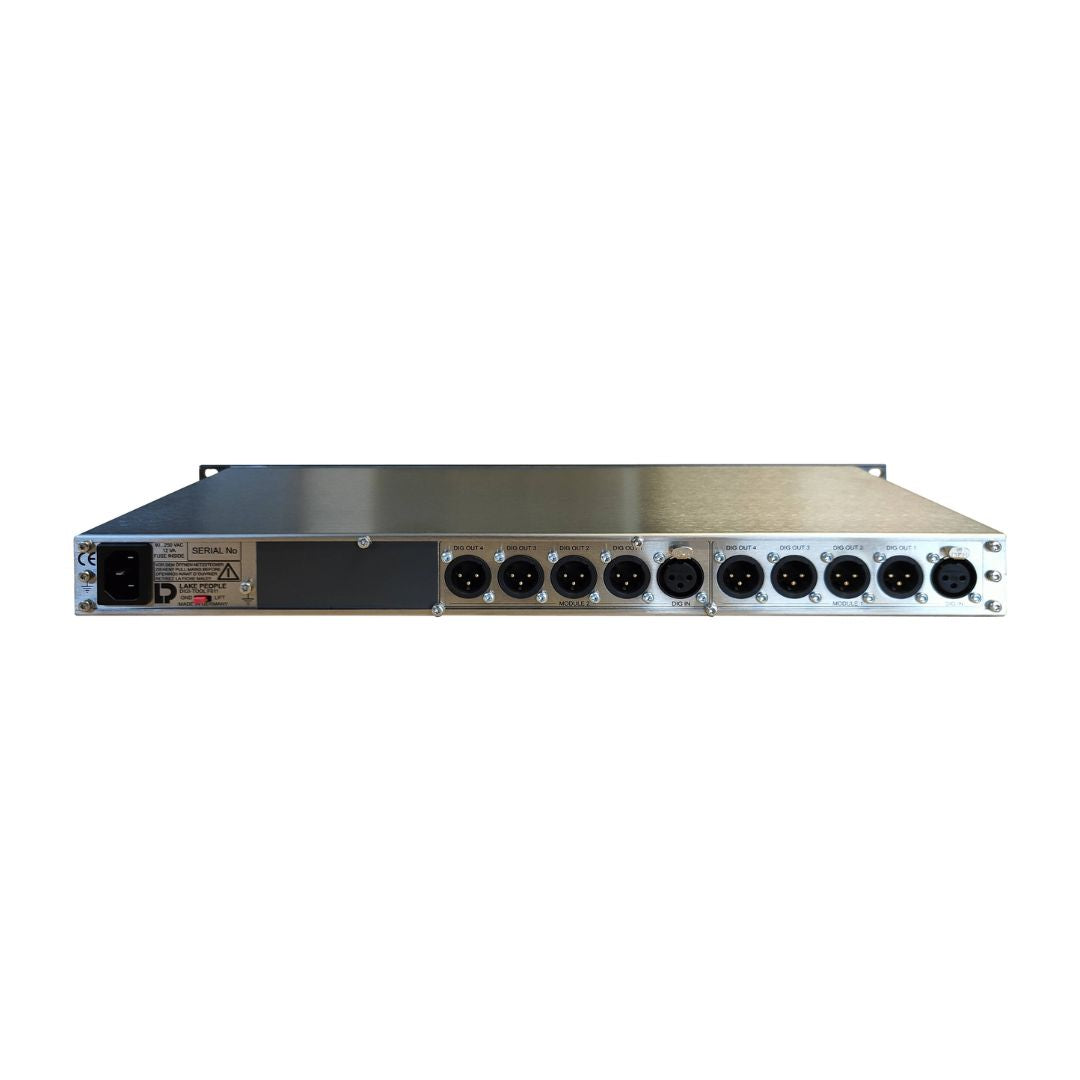

- Two modules with 1 AES/EBU input and 4 outputs each via XLR
- Max sample rate up to 192 kHz, 24-bit audio
- Transformer-balanced input/output with 110 Ohm impedance
- Input sensitivity less than 200 mV
- Internal multi-voltage power supply (90–260V AC)
- 19” / 1U rackmount stainless steel chassis (483 x 44 x 166 mm)
