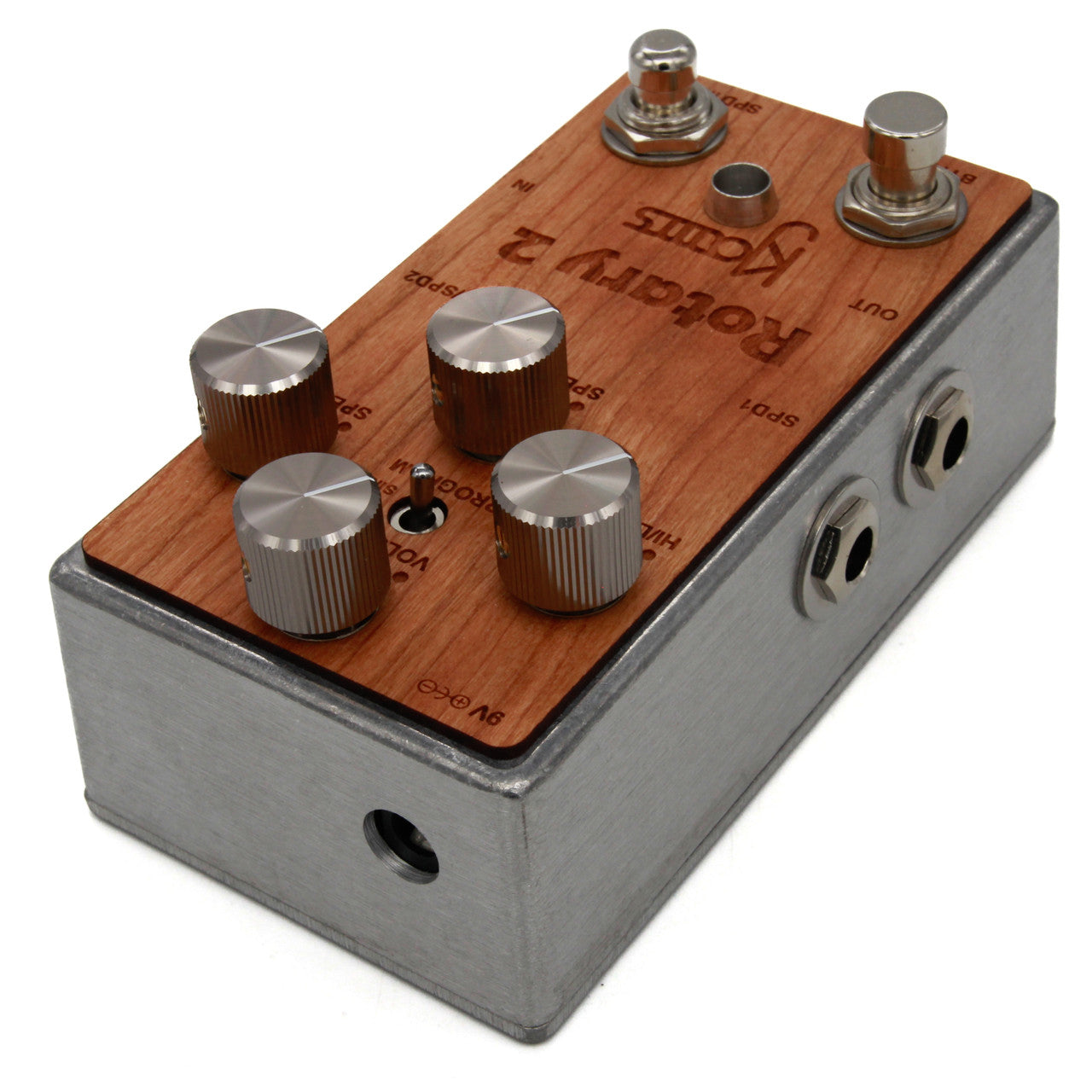

KJams Rotary 2 Pedal

Unlock a new realm of sonic possibilities with the Rotary 2 pedal, a dual-speed rotary simulator that combines cutting-edge technology with vintage charm. Engineered with the Spin FV-1 DSP chip and handcrafted in Holland, Michigan, this pedal offers two distinct programs: a classic rotary effect and an enhanced dual mode for a richer, chorus-like texture.

KJams Rotary 2 Pedal Review

With intuitive controls for Speed, Hi/Lo Mix, and real wood accents on the control panel, you'll effortlessly dial in your ideal tone. The built-in and external speed switch inputs, along with an expression pedal option, give you unparalleled flexibility in your performance. Elevate your sound with the Rotary 2 and experience the magic of rotary simulation like never before.

KJams Rotary 2 Pedal Controls

  • Single (down): Rotary with two Speed controls and Horn/Woofer mix control.
  • Dual (up): Rotary with two Speed controls, Horn/Woofer mix control, and a second Horn (makes it chorus-y)
  • Spd1/Spd2: Toggles the rotary speed between the settings on the two Speed controls. See below.
  • Bypass: A standard bypass/enable latching switch.
  • Speed: Controls set the maximum and minimum speeds.
    • Which Speed control is currently active is set by the Spd1/Spd2 switch.
    • If Speed 1 control is set lower than Speed 2, pressing the Spd1/Spd2 switch will cause the speed to gradually change from one speed setting to the other.
    • If Speed 1 is set higher than Speed 2, pressing the Spd1/Spd2 switch will cause the speed to immediately change from one speed setting to the other.
  • Hi/Lo Mix: The mix of the horn and woofer. It acts similar to a tone control.
  • Volume: Controls output level.
  • Spd1/Spd2 Jack: External input functions in parallel with and exactly like the Spd1/Spd2 footswitch.
  • Spd1 Jack: Expression jack that replaces the middle/lower control, Speed 1.
    • If the last tap on Spd1/Spd2 has set the pedal to Speed 1 control, the Expression pedal controls the speed.
    • If the last tap on Spd1/Spd2 has set the pedal to Speed 2 control, the Expression pedal does not control the Speed until Spd1/Spd2 is pushed again.

KJams Rotary 2 Pedal Specs

  • Input power is standard center-negative 9VDC.
  • The pedal draws 62mA.
  • The pedal is safe with higher voltages, up to 18VDC, but using higher voltages will not affect the sound, and we discourage using them.
