Grace Design m801mk2 8-Channel Microphone Preamp
The Grace Design m801mk2 8-Channel Microphone Preamp brings clean, rich sound to any studio or stage. It captures voices and instruments with natural depth, helping your recordings feel alive and detailed. If you want a preamp that makes every source shine, this one makes it easy to get great results.
Grace Design m801mk2 8-Channel Microphone Preamp Review
The m801mk2 builds on Grace Design’s long history of precision audio while bringing important upgrades. Its new circuitry lowers noise, improves low end accuracy, and offers better protection from interference in busy studio environments. Ribbon mode adds extra gain and a higher input impedance for low output microphones. Each channel includes a 24 step gold contact gain knob, switches for phantom power, polarity, and pad, plus peak LEDs you can adjust. With eight XLR inputs, eight main outputs, and eight parallel outputs, you get flexible routing for modern setups.
Grace Design m801mk2 8-Channel Microphone Preamp Features
- Clear and natural sound that keeps every detail
- Extra gain option that works well with ribbon mics
- Simple controls that make setting levels fast
- Strong build made for studio or live use
- Signal lights that warn when levels get too high
- Lets you send your sound to different gear at once
Grace Design m801mk2 8-Channel Microphone Preamp Specs
- Up to 64 dB gain in Default mode and up to 74 dB in Ribbon mode
- Frequency response from 3.2 Hz to over 500 kHz depending on gain
- THD+N as low as 0.0004 percent

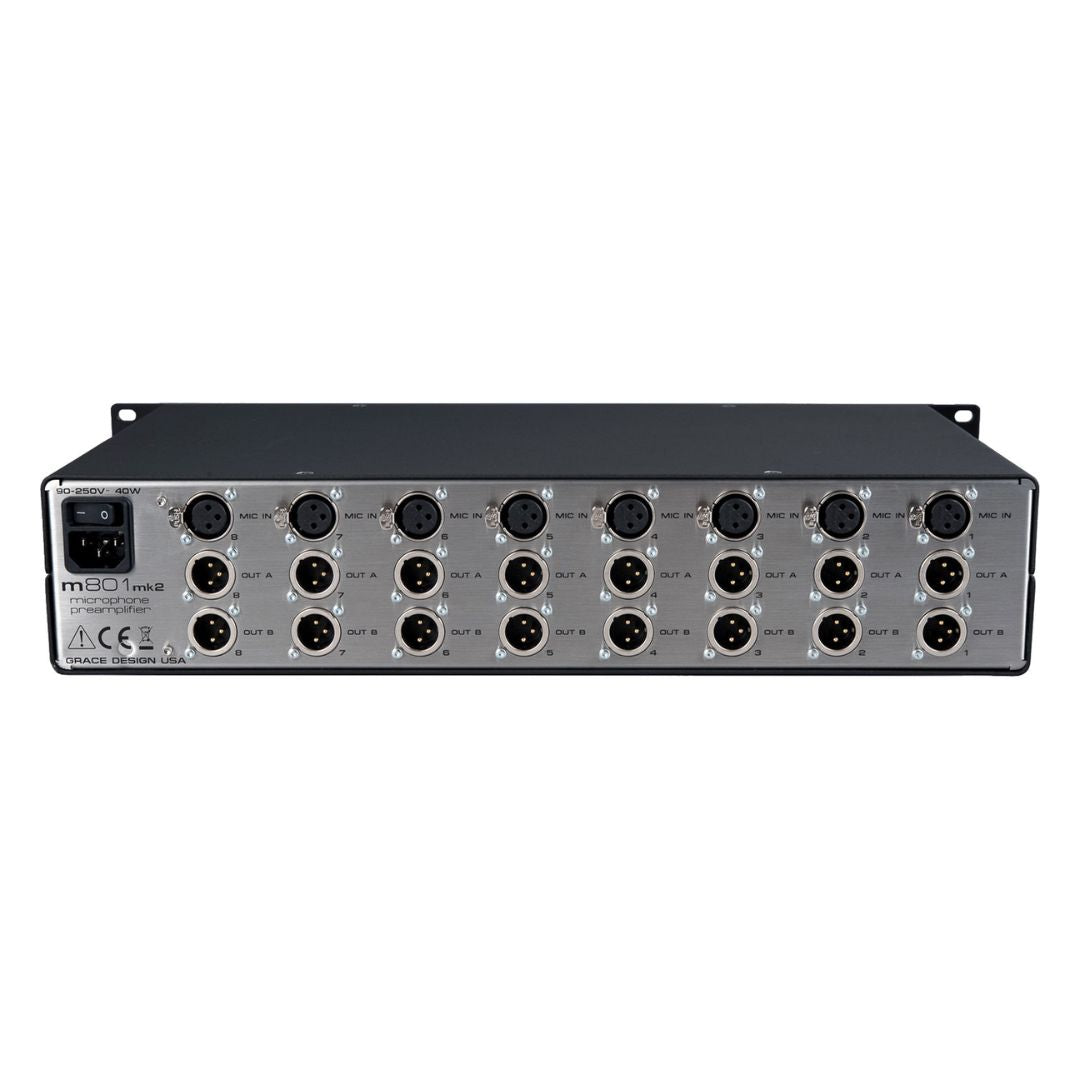

- Eight balanced XLR inputs, eight balanced XLR outputs, eight balanced XLR parallel outputs
- Power requirement of 100 to 240 VAC at 50 or 60 Hz
- Maximum output level of +28 dBu
- Input impedance of 8100 ohms in default mode and 20000 ohms in Ribbon mode
Grace Design m801mk2 8-Channel Microphone Preamp Dimensions
- Height: 2U rack size
- Width: 19 in
- Depth: 10 in
- Weight: 13 lbs
