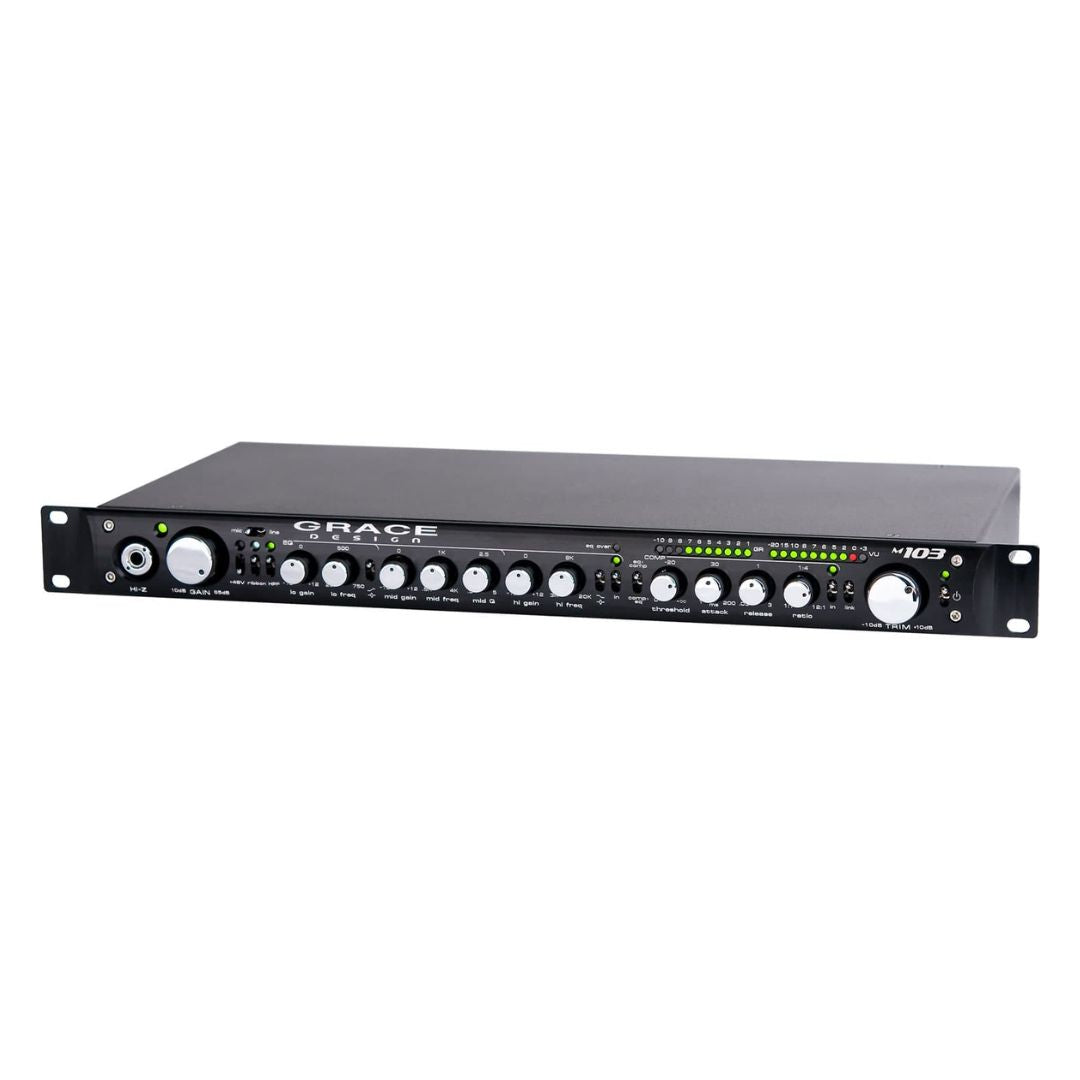

Grace Design m103 Channel Strip
The Grace Design m103 Channel Strip gives you everything you need to bring out the best in your recordings. It combines a world-class mic preamp, smooth EQ, and a musical compressor in one sleek unit. Whether you are tracking vocals, guitar, or any instrument, the m103 makes every detail sound clear, natural, and alive.
Grace Design m103 Channel Strip Review
At the heart of the m103 is the same preamp found in the well-loved m101, known for its pure, open sound. Add in a 3-band EQ for precise tone shaping and an optical compressor that keeps dynamics under control without coloring the sound. It also features a ribbon mic mode, a high-pass filter, and a Hi-Z input, making it versatile for both studio microphones and instruments. Built with top-shelf components and designed for professionals, the m103 delivers high fidelity performance while staying user-friendly.
Grace Design m103 Channel Strip Features
- Studio quality mic preamp for clear and natural sound
- Easy-to-use EQ for shaping tone the way you like
- Smooth compressor that keeps your sound balanced
- Special ribbon mic mode for capturing delicate details
- Front input for plugging in instruments directly
- Bright meters that make level monitoring simple
Grace Design m103 Channel Strip Specs
- Gain range 10 to 65dB on mic input and -10 to 45dB on Hi-Z input
- Frequency response from 3.7Hz to 140kHz on mic input
- Optical compressor with 1:1 to 12:1 ratio, attack from 3ms to 200ms, release from 0.03s to 3s
- Maximum output level +28dBu with 0.1 percent THD
- Input impedance 8.1kΩ mic, 20kΩ in ribbon mode, 2.5MΩ to 5MΩ Hi-Z input
- Power consumption 14 watts max, 85-264VAC / 120-370VDC
Grace Design m103 Channel Strip Dimensions
- Height: 1.7 in
- Width: 19 in
- Depth: 9 in
- Weight: 4.5 lbs
