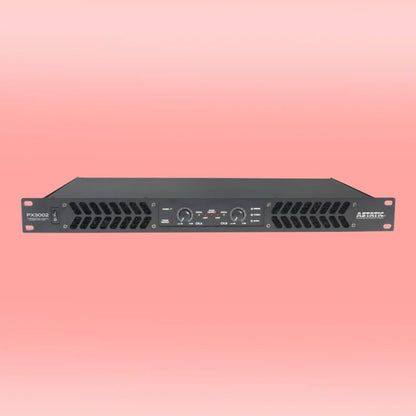

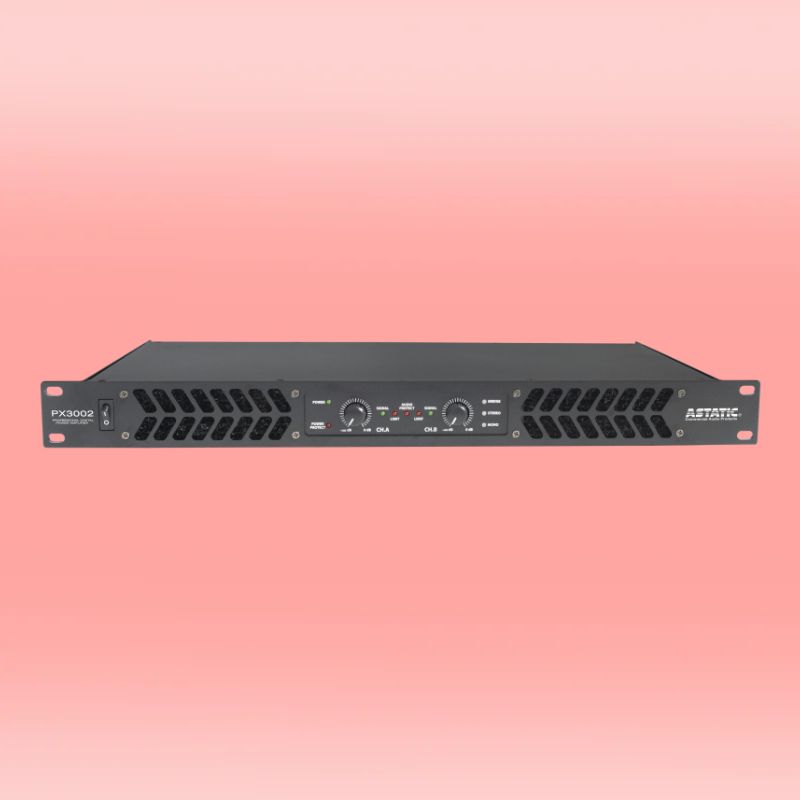

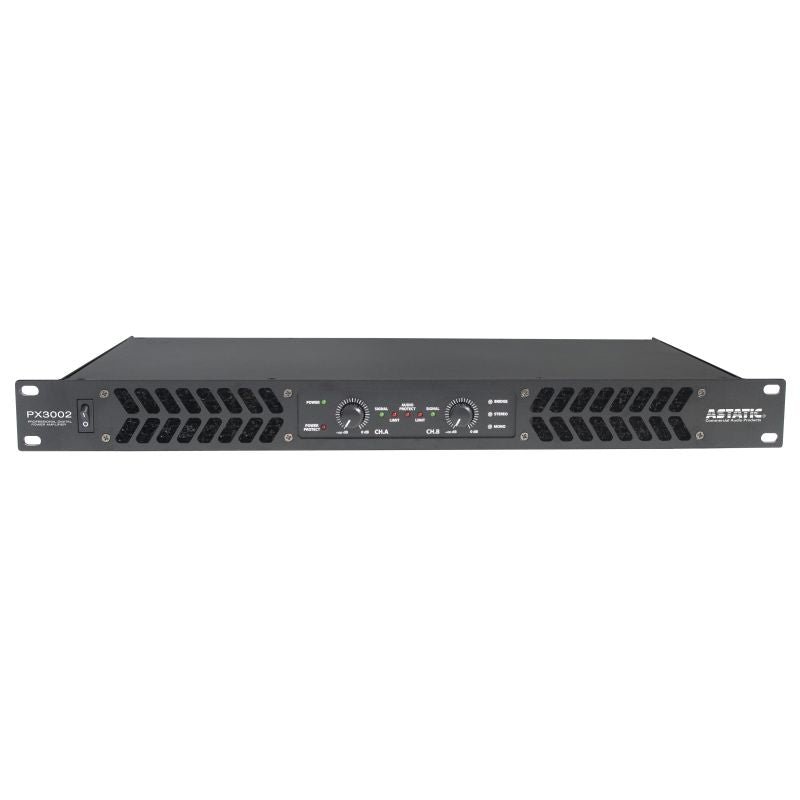

CAD Audio PX3002 300W 2-Channel Power Amplifier

The CAD Audio PX3002 300W 2-Channel Power Amplifier delivers reliable power for sound systems in venues, schools, churches, and event spaces. Its compact design fits neatly into a standard equipment rack, making it a great choice when space matters. With flexible operating modes, built-in speaker protection, and efficient cooling, this amplifier helps keep your audio system running smoothly. Whether you're setting up a permanent sound system or building a portable PA rig, the PX3002 offers the power and flexibility to get the job done.

CAD Audio PX3002 300W 2-Channel Power Amplifier Review

The CAD Audio PX3002 is a professional two-channel Class-D amplifier designed for dependable performance in demanding audio setups. It delivers 150 watts per channel at 8 ohms or 300 watts per channel at 4 ohms. For systems that need more power from a single output, bridge mode provides up to 600 watts at 4 ohms. Stereo, parallel, and bridge modes make it easy to adapt the amplifier to different speaker configurations.

Balanced XLR inputs and link outputs simplify connections and allow you to send audio to additional equipment. Three speakON speaker outputs support standard stereo and bridged setups. The PX3002 also features a built-in peak limiter and a switchable 75 Hz low-cut filter to help protect connected speakers. Its temperature-controlled fan adjusts cooling as needed, while protection circuits guard against overheating, overloads, short circuits, and DC faults. With a lightweight design, soft-start power control, and a ground-lift switch, the PX3002 is a practical solution for installed sound and live audio applications.

CAD Audio PX3002 300W 2-Channel Power Amplifier Features

• Compact rackmount design saves space in your equipment rack and keeps your audio setup organized.
• Flexible operating modes let you run stereo, parallel, or bridged setups to suit different speaker systems.
• Built-in speaker protection helps prevent clipping and reduces the risk of damage during demanding performances.
• Smart fan cooling adjusts to the amplifier's temperature to help maintain reliable operation.
• Balanced XLR connections make it easy to connect audio sources and send signals to additional equipment.
• Multiple safety features help protect the amplifier from overheating, overloads, short circuits, and other electrical faults.

CAD Audio PX3002 300W 2-Channel Power Amplifier Specs

• Two-channel Class-D power amplifier
• Output power of 2 x 150W at 8 ohms
• Output power of 2 x 300W at 4 ohms
• Bridged output power of 600W at 4 ohms
• Frequency response of 20 Hz to 20 kHz
• Total harmonic distortion of 0.1% or less at 8 ohms in stereo mode
• Switchable 75 Hz low-cut filter with a 24 dB per octave slope
• Built-in peak limiter
• Selectable input sensitivity of 0.775V, 1.0V, or 1.44V

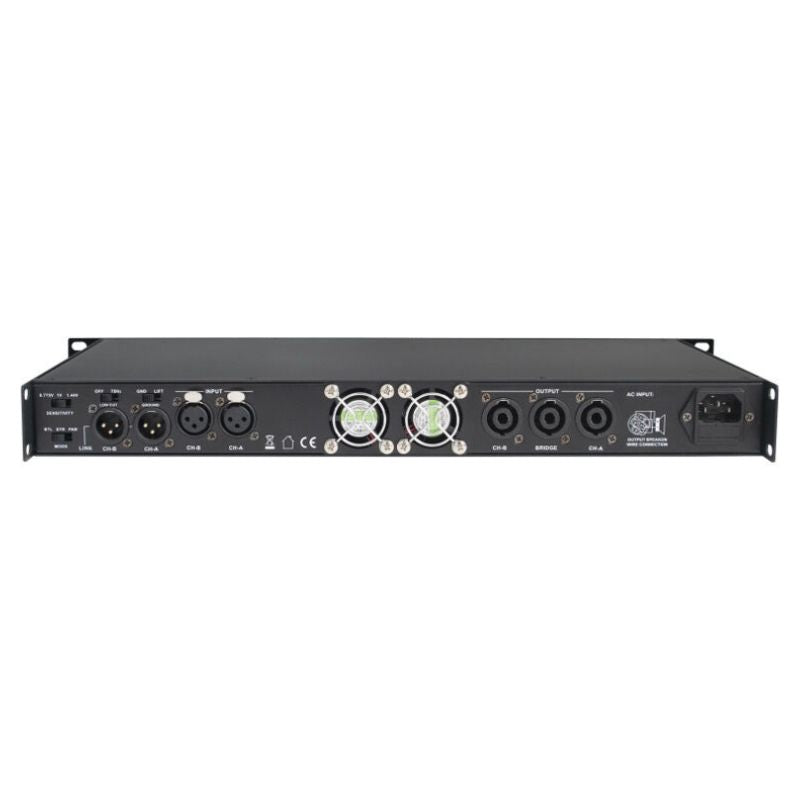

• Two balanced 3-pin XLR inputs and two XLR link outputs
• Three speakON speaker outputs
• AC power requirements of 115 to 230V, 50 or 60 Hz
• Three locking powerCON power connectors
• One rack unit in a standard 19-inch rack
• Dimensions of 19 x 9.4 x 1.8 inches
• Weight of 8.4 lbs
