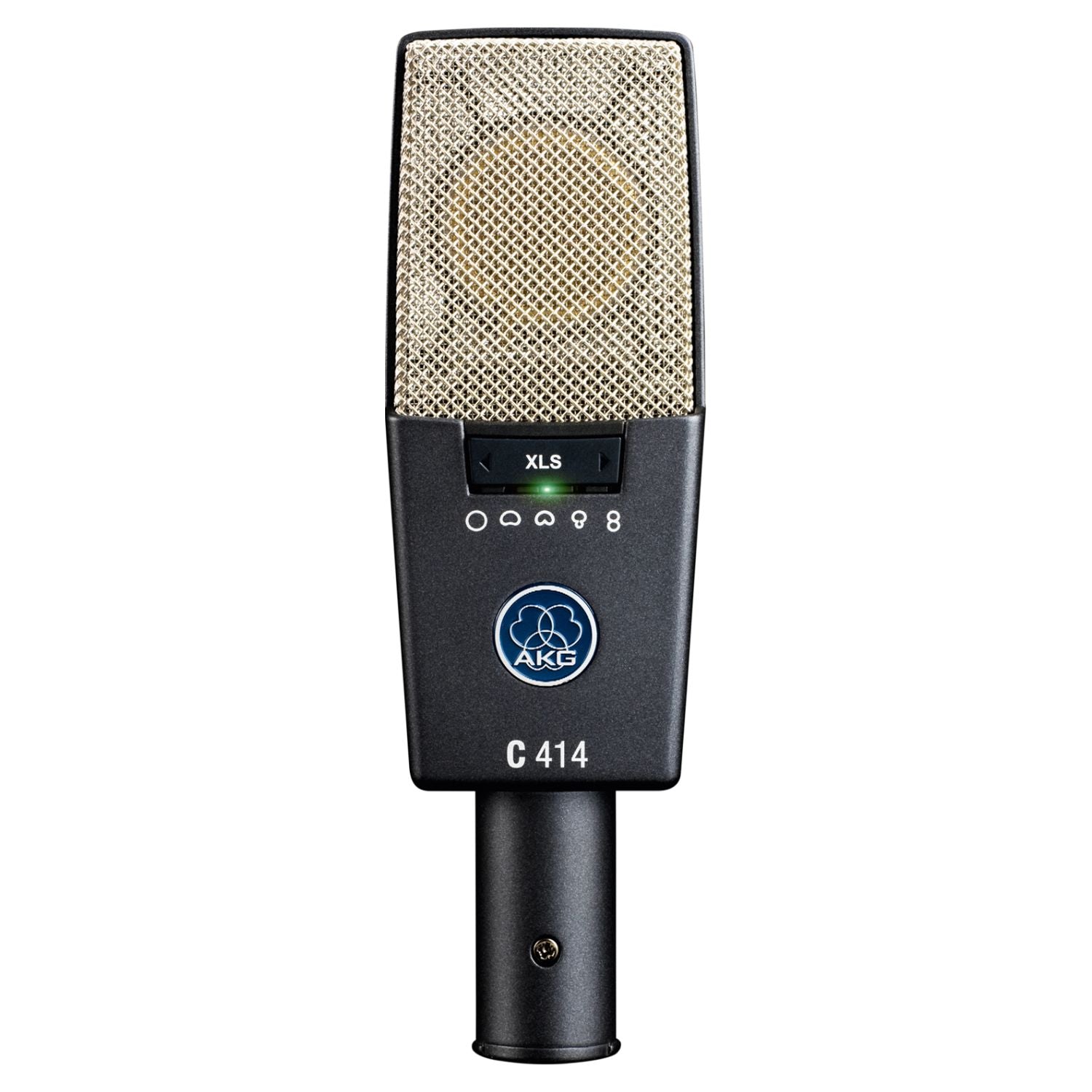

AKG C414 XLS Large-Diaphragm Condenser Microphone
The AKG C414 XLS Large-Diaphragm Condenser Microphone is a versatile studio mic built for vocals, guitars, drums, amplifiers, and more. Its classic C414 character, flexible pickup options, and rugged metal body make it a dependable choice for both recording and live use. With plenty of control over how it captures sound, this is one microphone that can handle a wide range of jobs.
AKG C414 XLS Large-Diaphragm Condenser Microphone Review
The C414 XLS uses a 1-inch edge-terminated, dual-diaphragm capsule designed to maintain the character of the well-known C414 B-ULS. Nine selectable pickup patterns let you adjust how the microphone captures sound, while three pad settings and three bass-cut options give you more control over loud sources, rumble, and unwanted low frequencies. It offers a wide 134 dB dynamic range and can handle up to 158 dB SPL with the pad engaged. The microphone also includes overload detection, a lock mode for its controls, and protection against electromagnetic and electrostatic interference.
AKG C414 XLS Large-Diaphragm Condenser Microphone Features
- Nine pickup patterns for different recording situations
- Classic C414 character based on the C414 B-ULS
- Three settings to reduce unwanted low-end noise
- Three volume reduction settings for loud sources
- Tough metal body built for demanding use

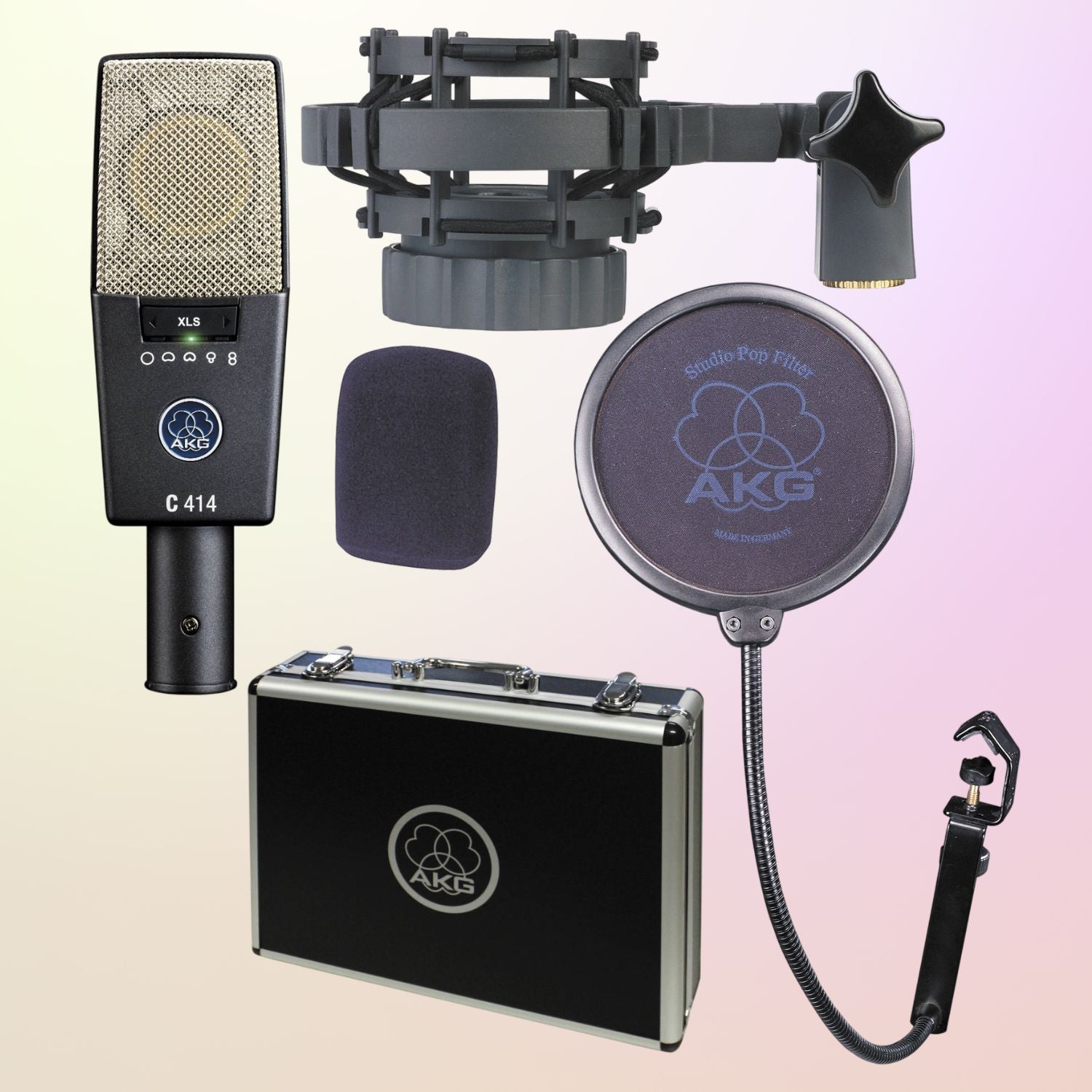

- Includes a shockmount, windscreen, pop filter, and carrying case
AKG C414 XLS Large-Diaphragm Condenser Microphone Specs
- 1-inch / 25.4 mm dual-diaphragm condenser capsule
- Frequency response of 20 Hz to 20 kHz
- Maximum SPL of 140 dB, or 158 dB with the pad engaged
- Dynamic range of 134 dB A-weighted
- Equivalent noise level of 6 dB A-weighted
- Pad settings of -6 dB, -12 dB, and -18 dB
- Low-cut settings of 40 Hz, 80 Hz, and 120 Hz
- 44 to 52 V DC phantom power required
- 1 x XLR 3-pin male output
- Side-address design with cardioid, figure-8, hypercardioid, omnidirectional, and wide-cardioid patterns
- Dimensions of approximately 6.3 x 2 x 1.5 inches
- Weight of approximately 10.6 oz
