Rooms Death By Audio Pedal

The Rooms pedal is a versatile, stereo digital reverb that can produce high-volume, gated walls of sound, as well as long, trailing reverberant ambiances. Its controls are intuitively designed for live performances.

Rooms Death By Audio Pedal Review

Rooms is built to the highest standards of flexibility and audio fidelity. It features a studio-quality mixer section that provides independent control over six meticulously programmed reverb algorithms: ROOM, DIGIT, PEAK, GATE, WAVE, and GONG. Each algorithm is capable of producing a wide range of sounds, and Rooms is here to help you explore them.

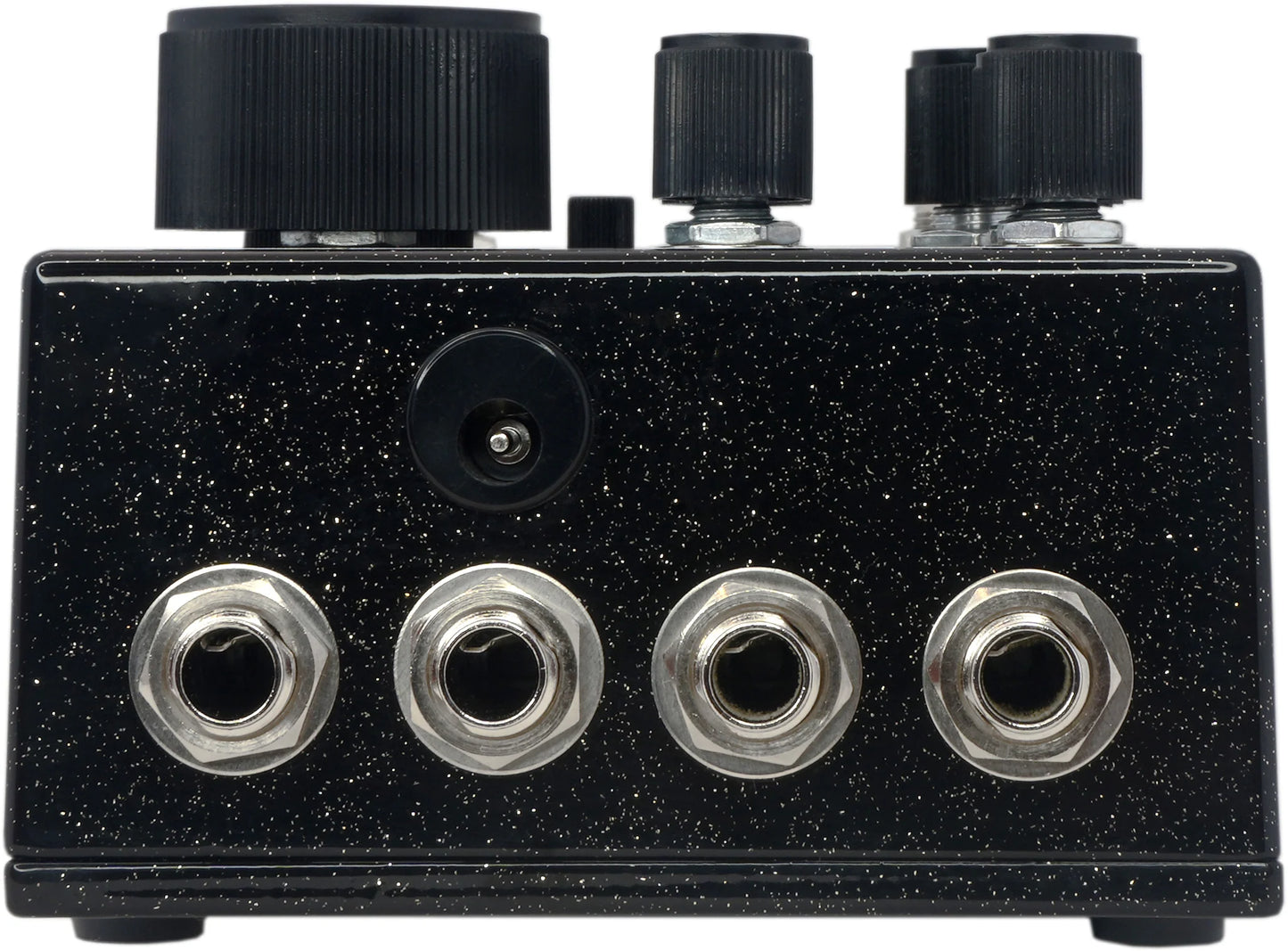

With its creative I/O switching and dual-mono dry signal lines, Rooms allows for a wealth of mono and stereo configurations, making it easy to route signals for parallel processing or stereo amplifier setups.

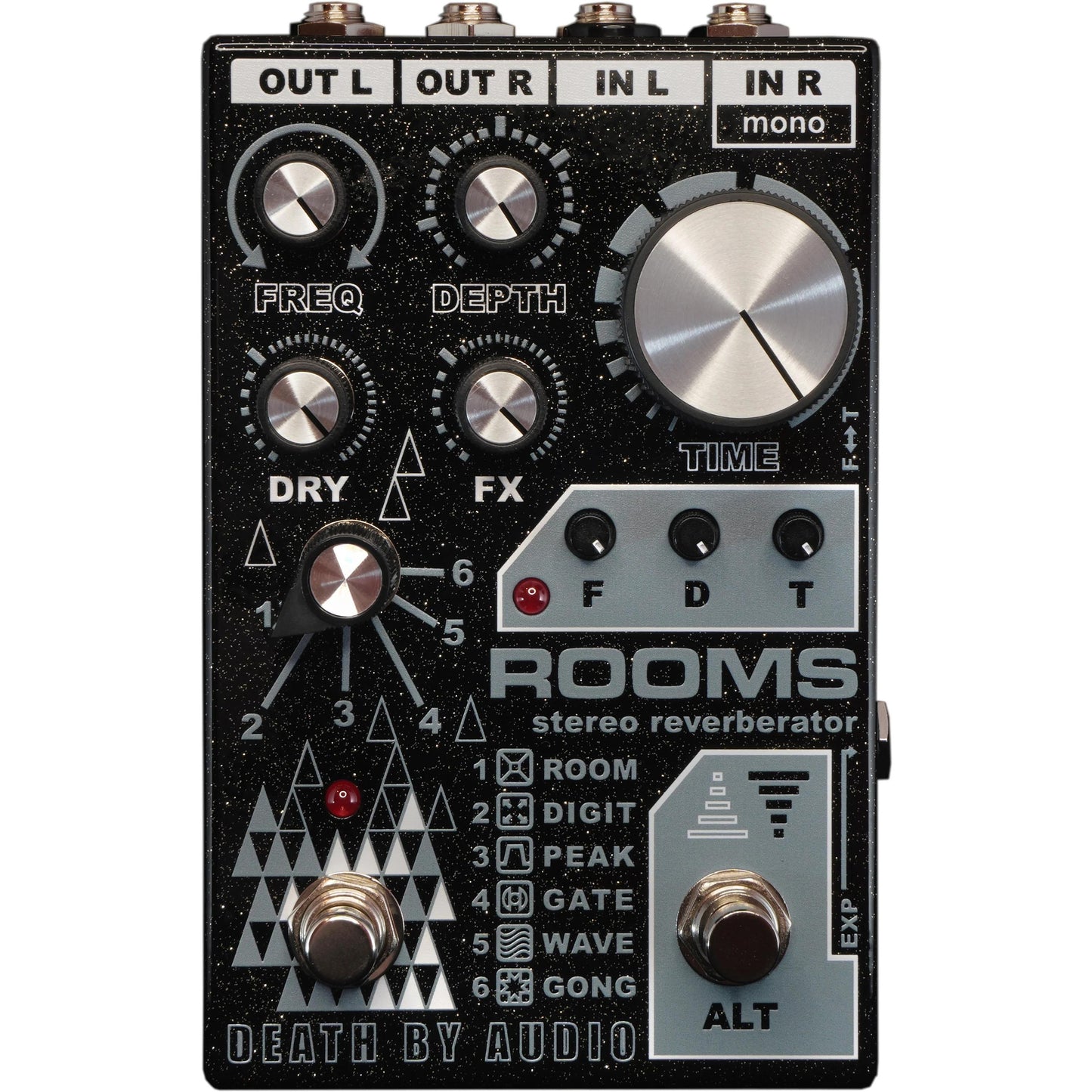

Rooms Death By Audio Pedal Controls

FREQ: Controls the frequency parameter of the current mode.

DEPTH: Controls the depth parameter of the current mode.

TIME: Controls the reverb time in all modes.

DRY: Controls the volume of the dry signal, from -inf to 20x gain.

FX: Controls the volume of the reverb signal, from -inf to 20x gain.

ALT: Engages the ALT mode, switching between two sets of controls. When active, FREQ is controlled with the F knob, DEPTH with the D knob, and TIME with the T knob. Additionally, the ALT mode turns on expression control of either FREQ or TIME using the F↔T Switch on the side of the pedal. NOTE: Expression control ONLY works in ALT mode and when an expression pedal is plugged in.

Rooms Death By Audio Pedal Specs

Dimensions: 5.95" x 3.86" x 2.96" (including hardware).

Weight: 18 oz.

Power: 80 mA, 9V (runs on a standard 2.1 mm negative center 9V adapter).

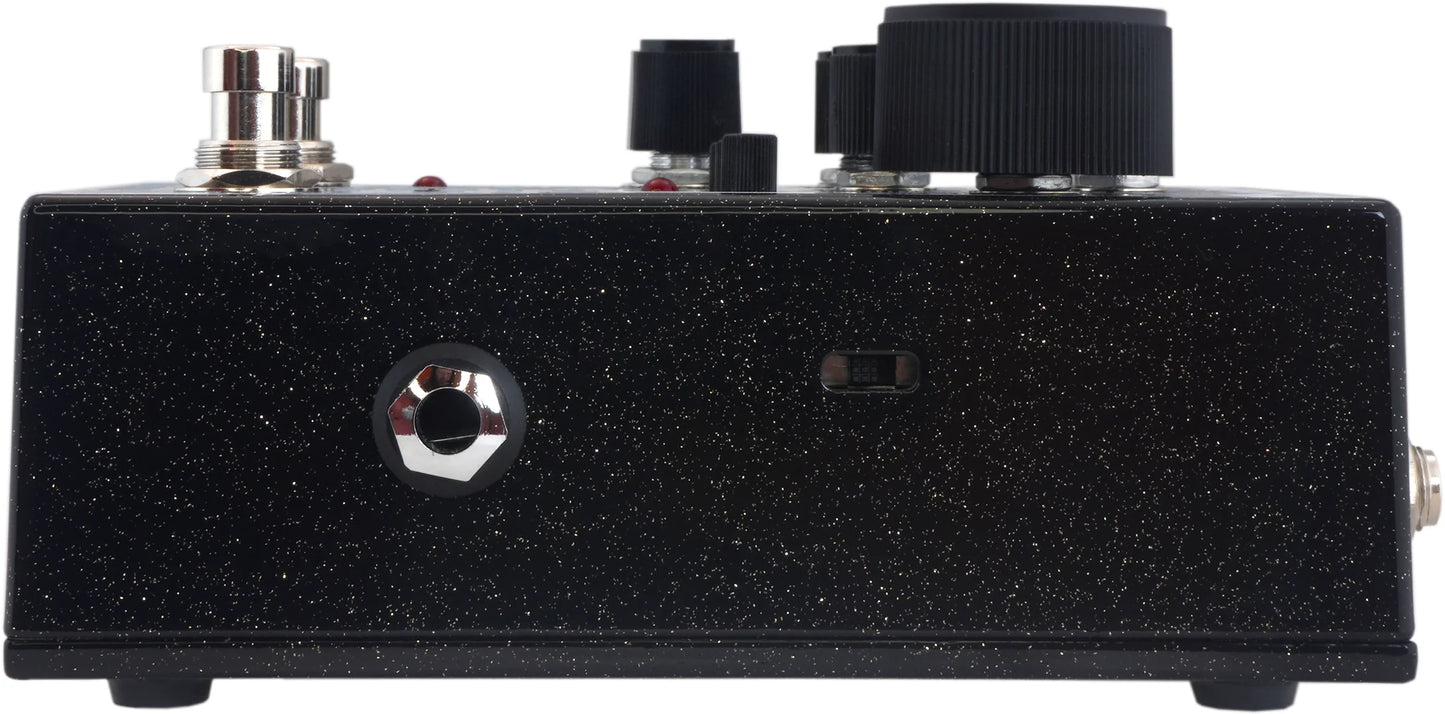

Expression Pedal: Almost any expression pedal will work with Rooms. When not plugged in, the controls work as normal. NOTE: Expression control ONLY controls the F or T knobs when ALT mode is engaged and when an expression pedal is plugged in.

Rooms Death By Audio Pedal Modes and Parameters

FREQ knob : DEPTH knob

1 - ROOM: Tone of Decay : Pre-Delay

A classic reverb that simulates many different rooms.

2 - DIGIT: Delay Time : Delay Feedback

A filter matrix verb capable of creating otherworldly resonances and fractured repeats.

3 - PEAK: Filter Frequency : Filter Resonance

A super intense bandpass filter combined with an ambient reverb.

4 - GATE: Decay Tone : Gate Response Time

A gated reverb. Short reverb times create a classic gate effect, long reverb times create a controllable freeze effect.

5 - WAVE: Modulation Frequency : Modulation Depth

Creates a pitch vibrato effect. Lowering TIME will blend out the reverb signal, allowing sweeps from chorus/vibrato to long modulated reverbs.

6 - GONG: Modulator Frequency : Blends from Aliasing (left) to Ring Modulation (right)

Ethereal, crushed reverb sounds guaranteed to make you star in the remake of DUNE and live out your sci-fi fantasies of space travel and galactic domination.

What's in the Box of our Rooms Death By Audio Pedal?

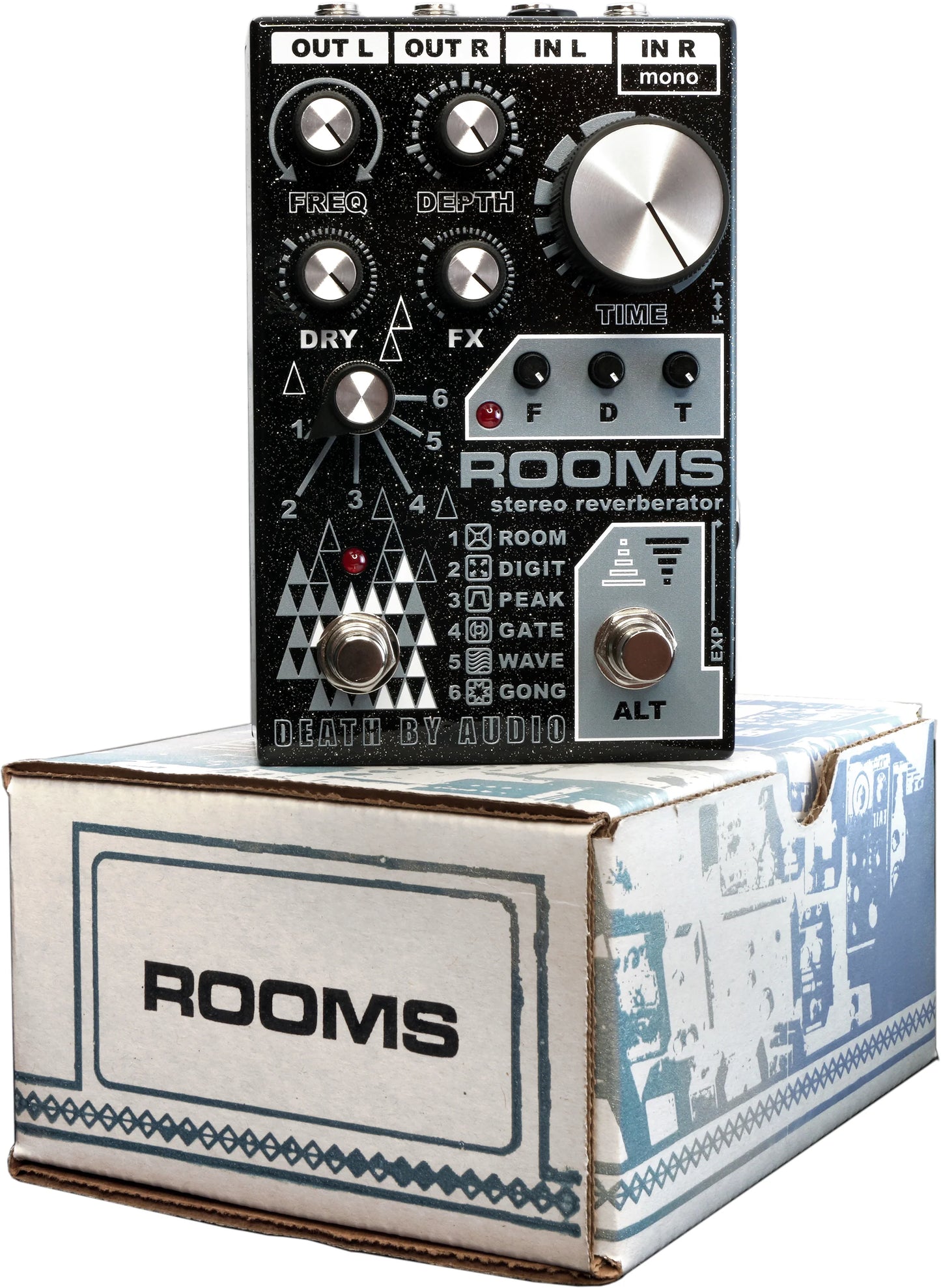

• Rooms Pedal
• Pedal Box with Logo
• Death By Audio and DeathCloud Stickers
• Catalog
• Candy
